SCHAUBLIN 53 N - Macchine usate
Vendute

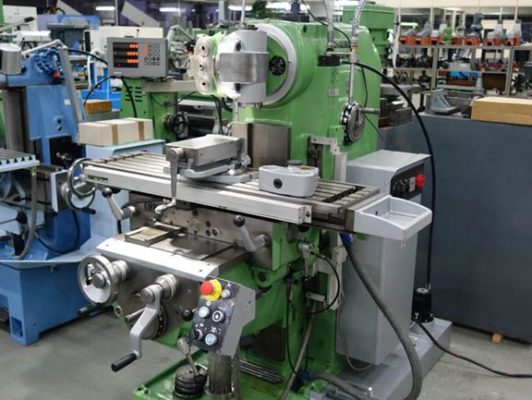

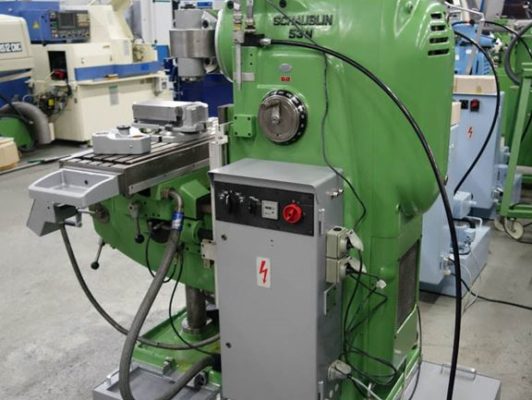

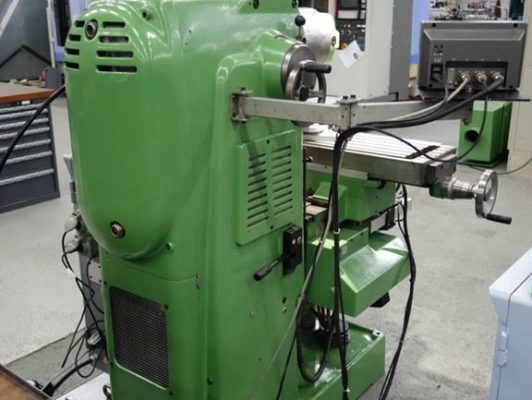

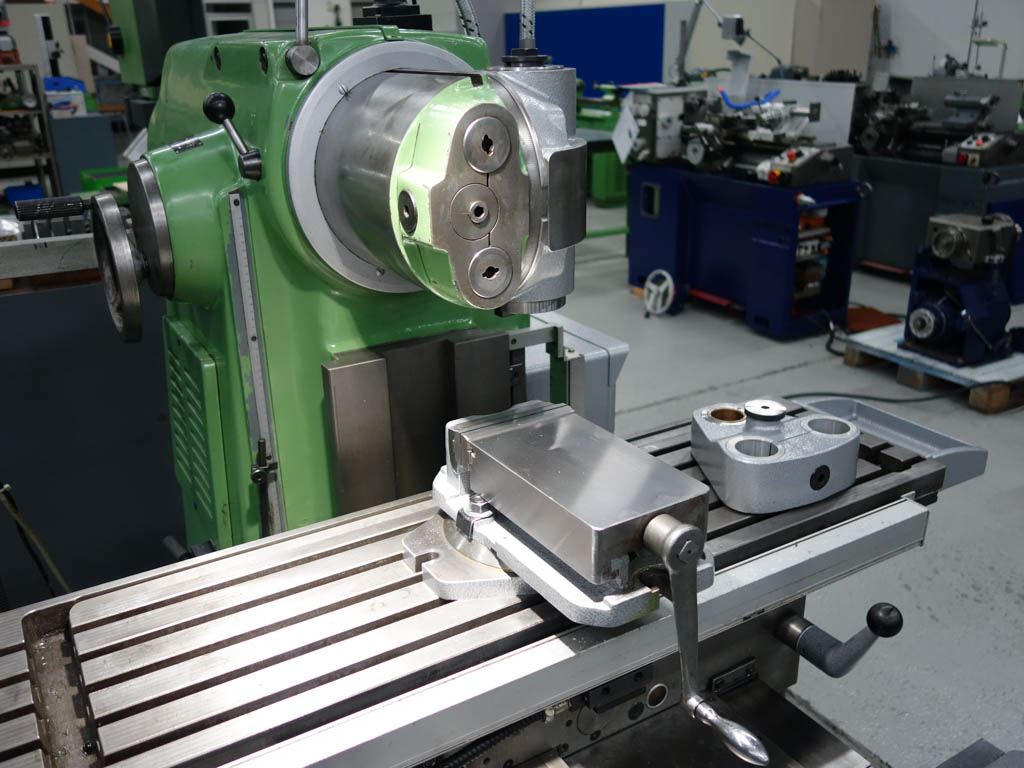

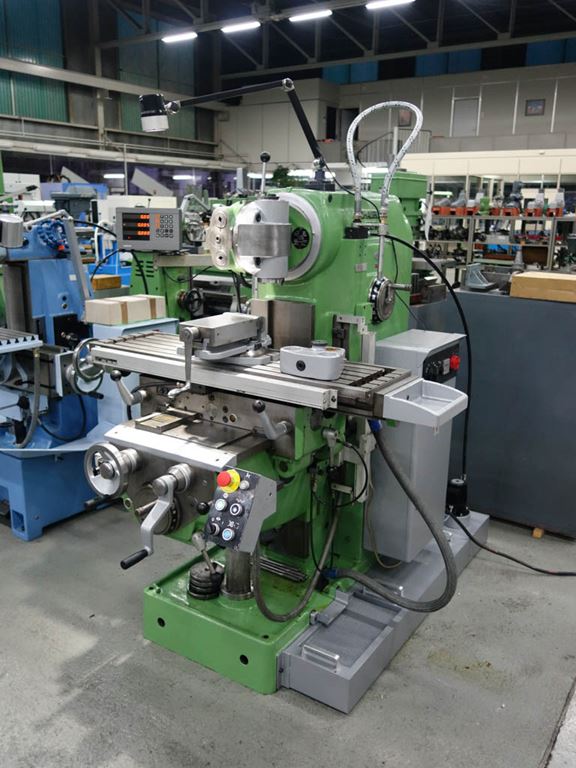

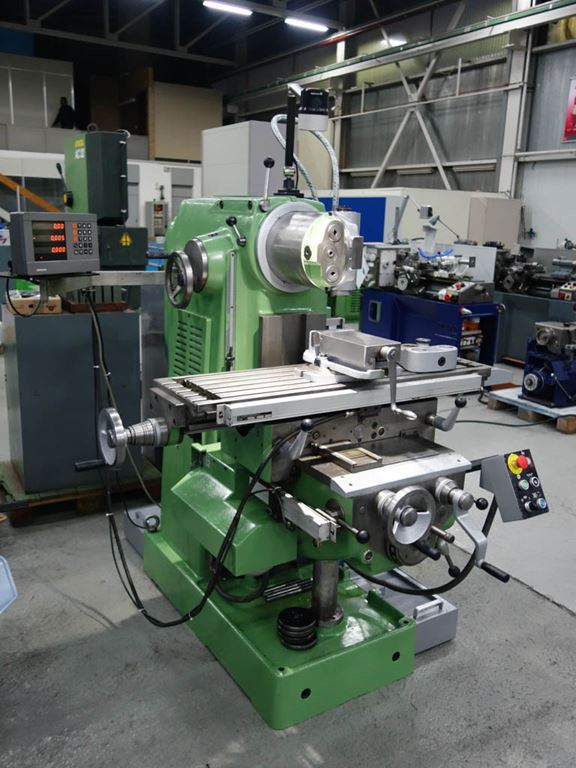

Universal milling machine

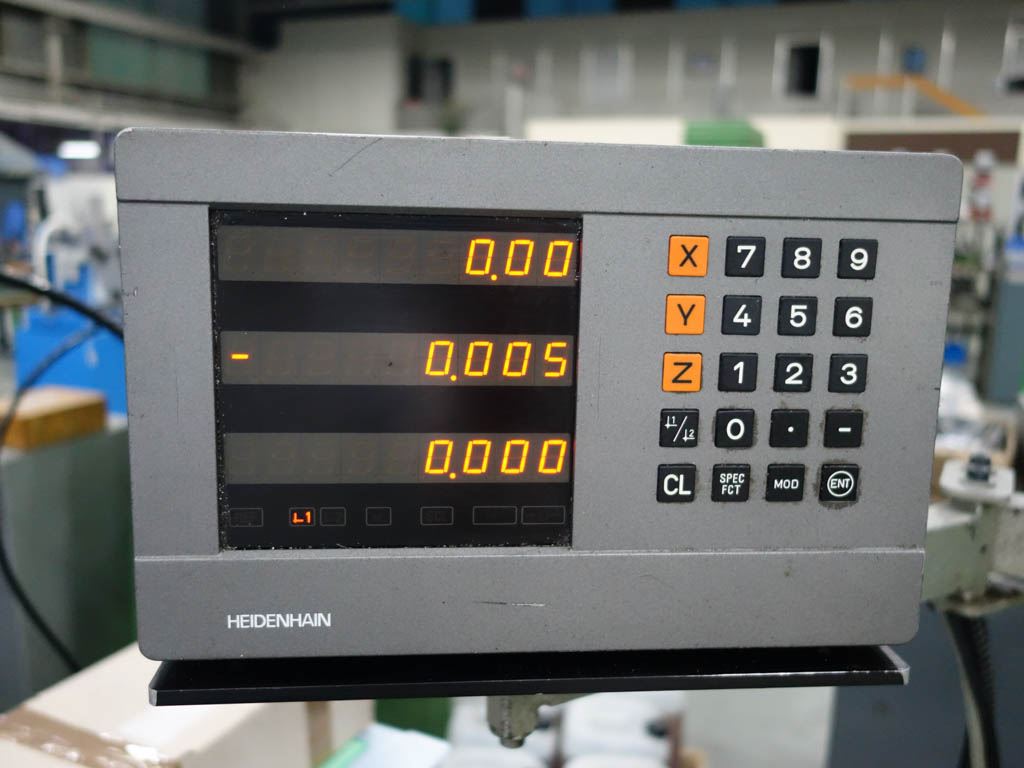

DRO 3 axis HEIDENHAIN

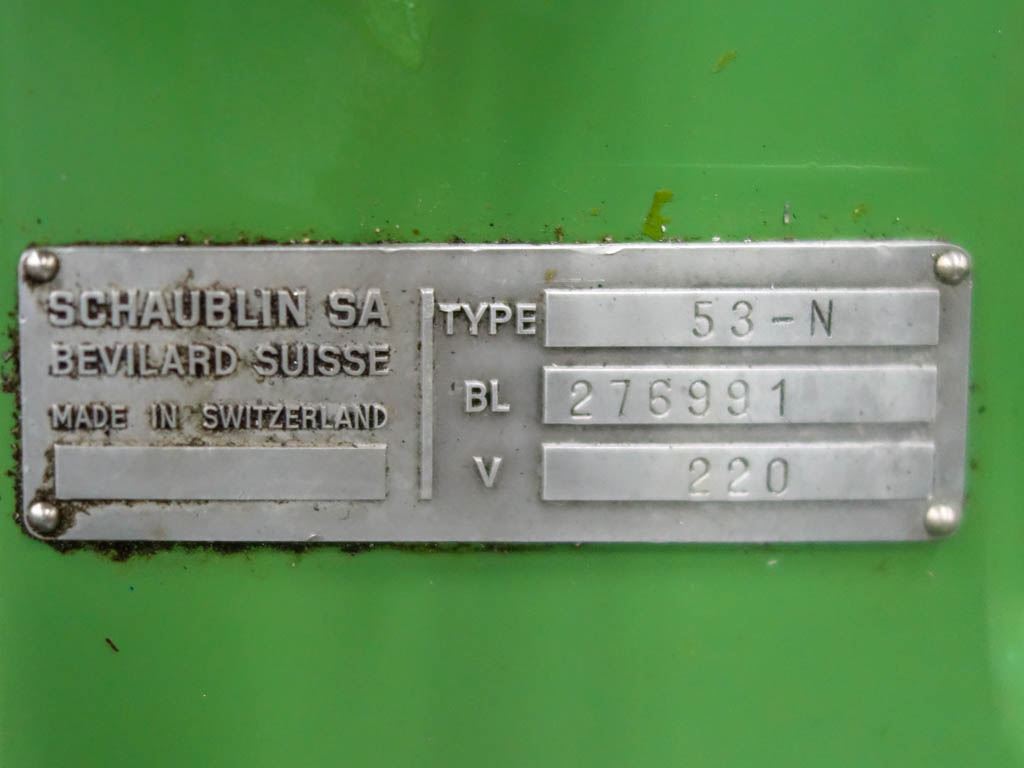

| Model | 53 N |
| Longitudinal travel of the table | 700 mm |
| Vertical stroke | 490 mm |
| Cross travel | 250 mm |
| Clamping surface of the table | 1100×305 mm |
| Number of T-slots | 5 |
| Maximum length of the grooves | 14-H7 mm |
| Internal taper of the milling arbor | ISO-40 |
| Hole through spindle | 25.2 mm |
| Main motor | 3/1500 kW-t/min |
| Rapid feeds motor | 1,2/3000 kW-t/min |
| Capacity | 5.1 T |
| Rapid approach speed | 3500 mm/s |
| Dimensions | 2250x1920x1720 mm |
| Weight | 2000 Kg |
