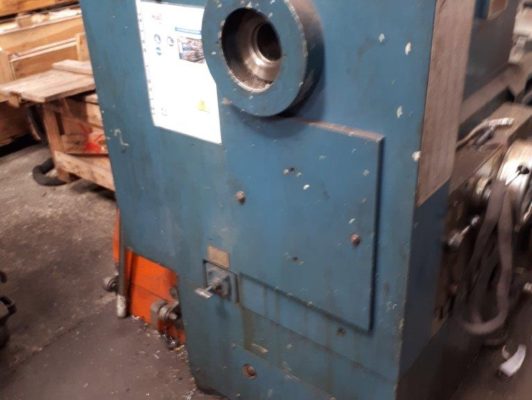

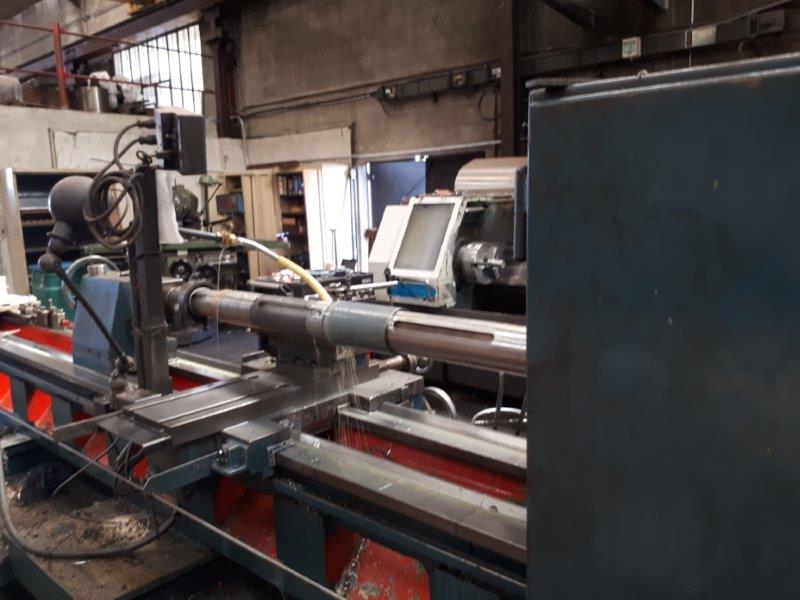

WEISSER HEILBRONN - Used machine
SOLD

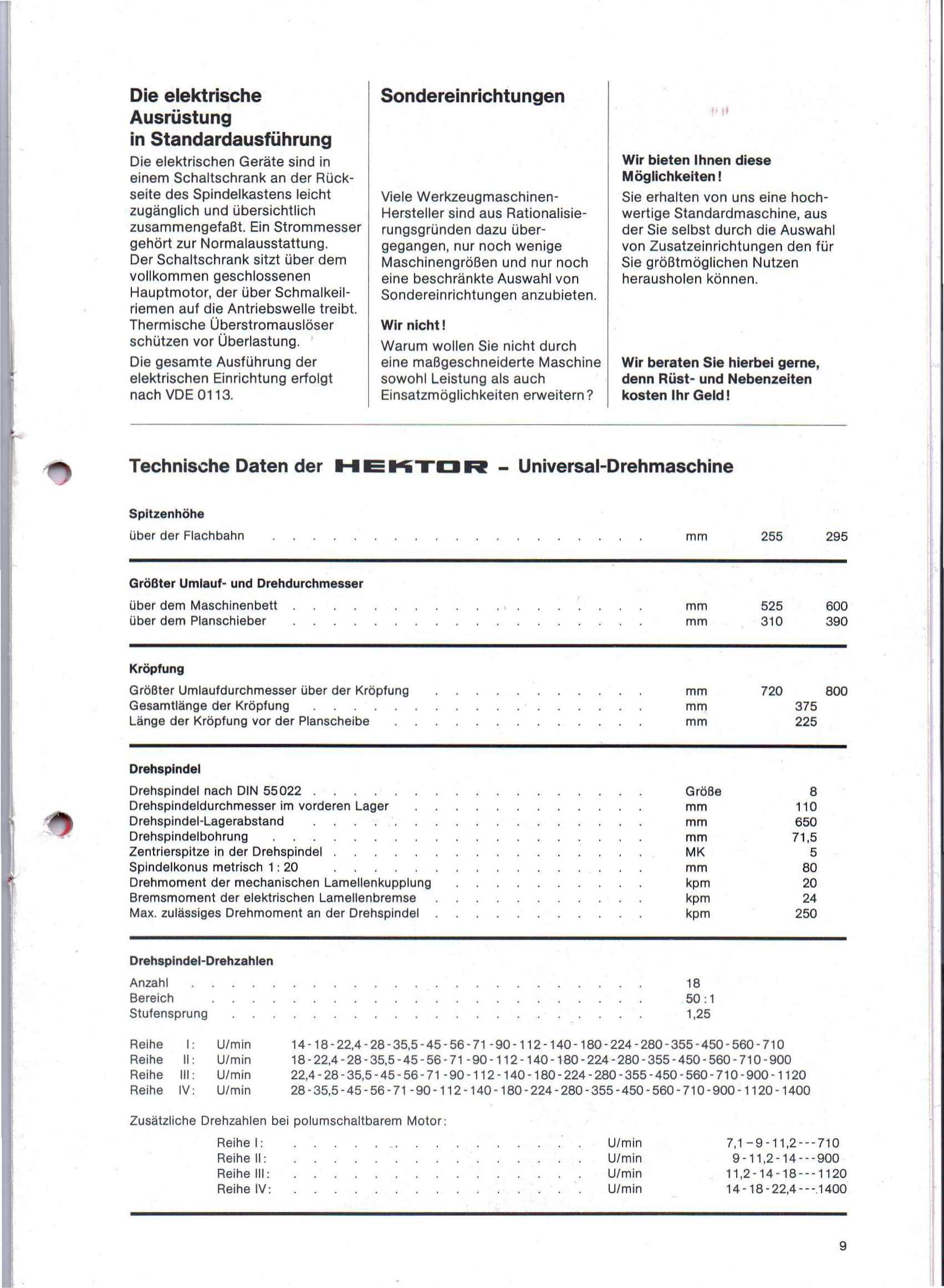

| Model | HEKTOR |

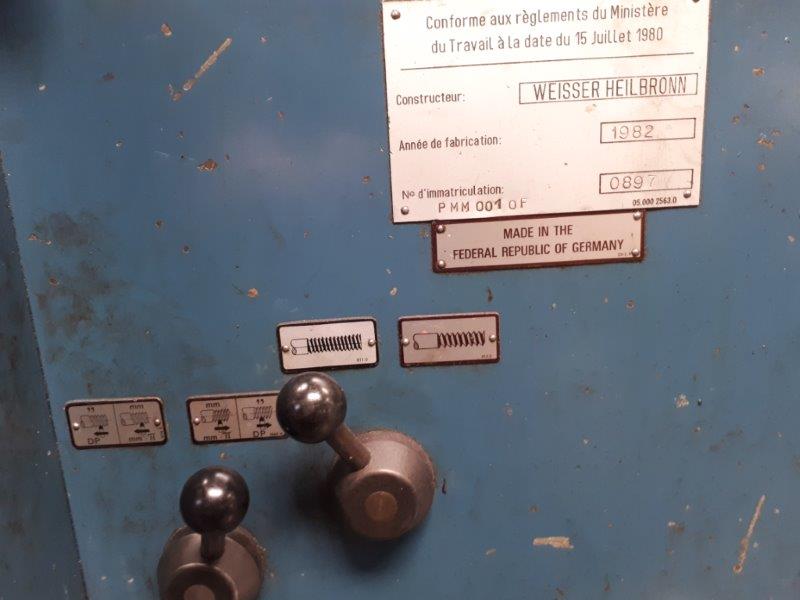

| Year | 1982 |

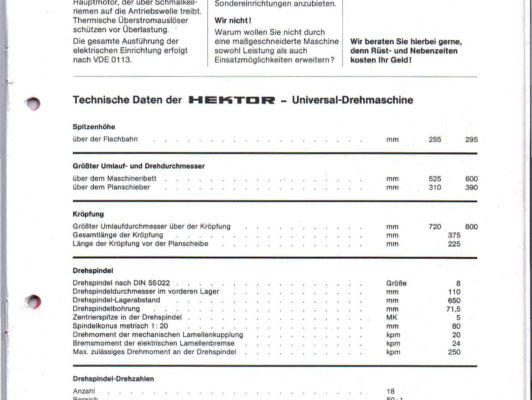

| Height of centers | 285 mm |
| Distance between centers | 4000 mm |
| Maximum swing in gap | 800 mm |
| Maximum swing over cross-slide | 390 mm |
| Maximum swing over bed | 600 mm |

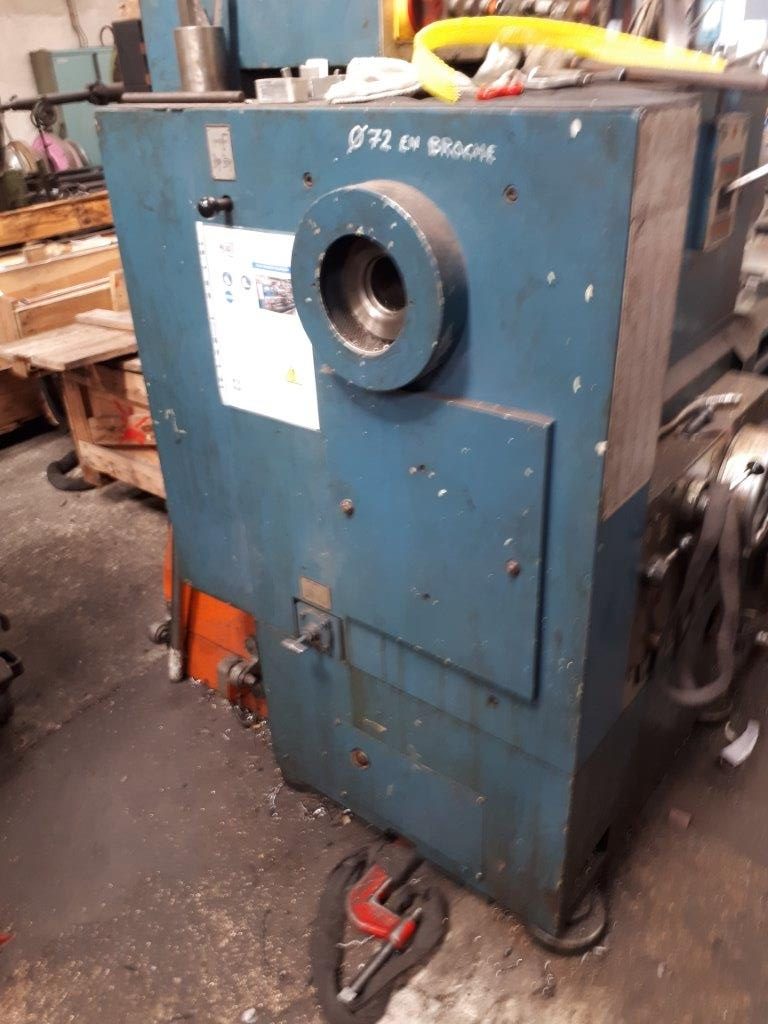

| Hole through spindle | 71,5 mm |

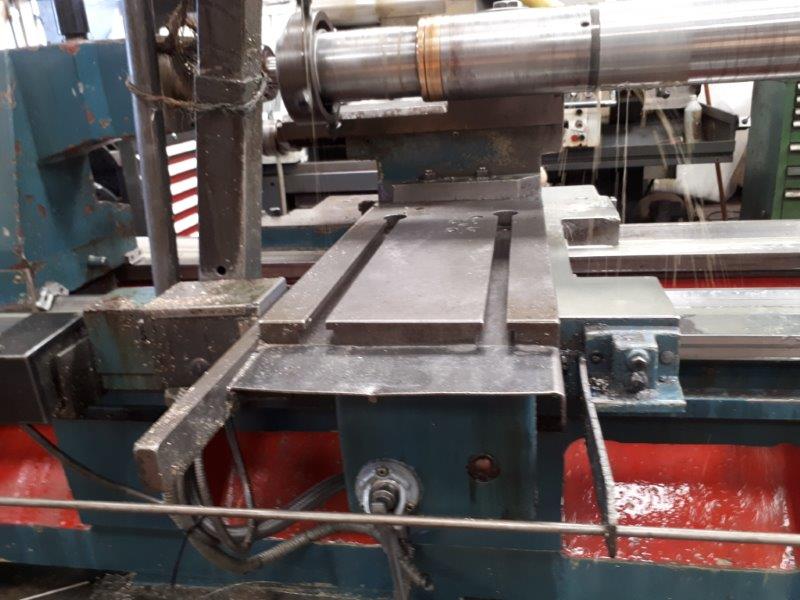

| stroke of the transversal carriage | 320 mm |
| Gap width | 375 mm |

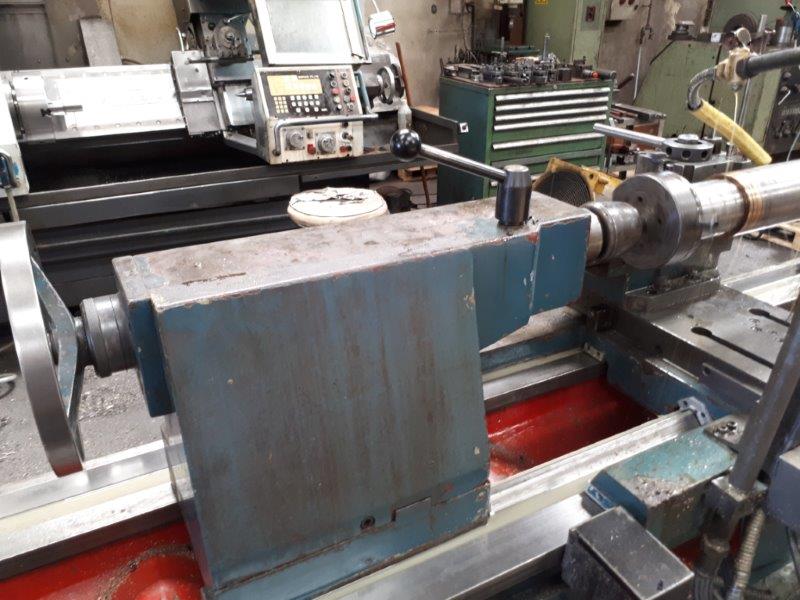

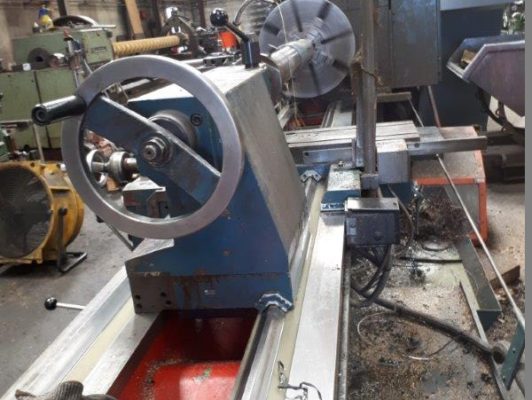

| travel of the tailstock centre sleeve | 250 mm |

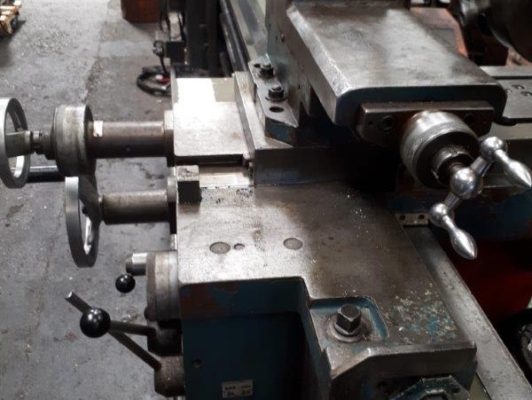

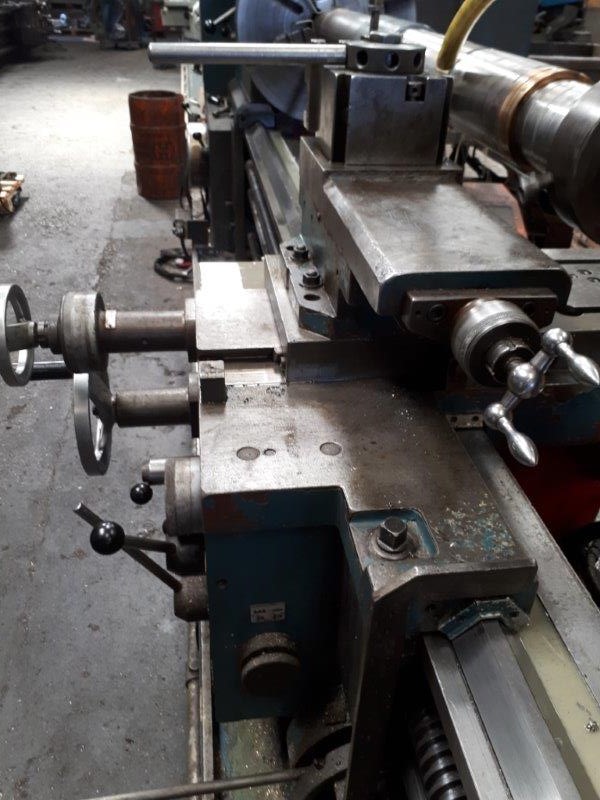

| Travel of top slide | 160 mm |
| Taper of tailstock sleeve | CM5 |
| Width of the bed | 450 mm |
| Number of spindle speeds | 72 |
| Number of longitudinal and cross feeds | 40 |
| Spindle speed | 1400 RPM |
| Motor (HP) | 15 HP |
| Dimensions | 6150x1620x1850 mm |
| Weight | 4500 Kg |

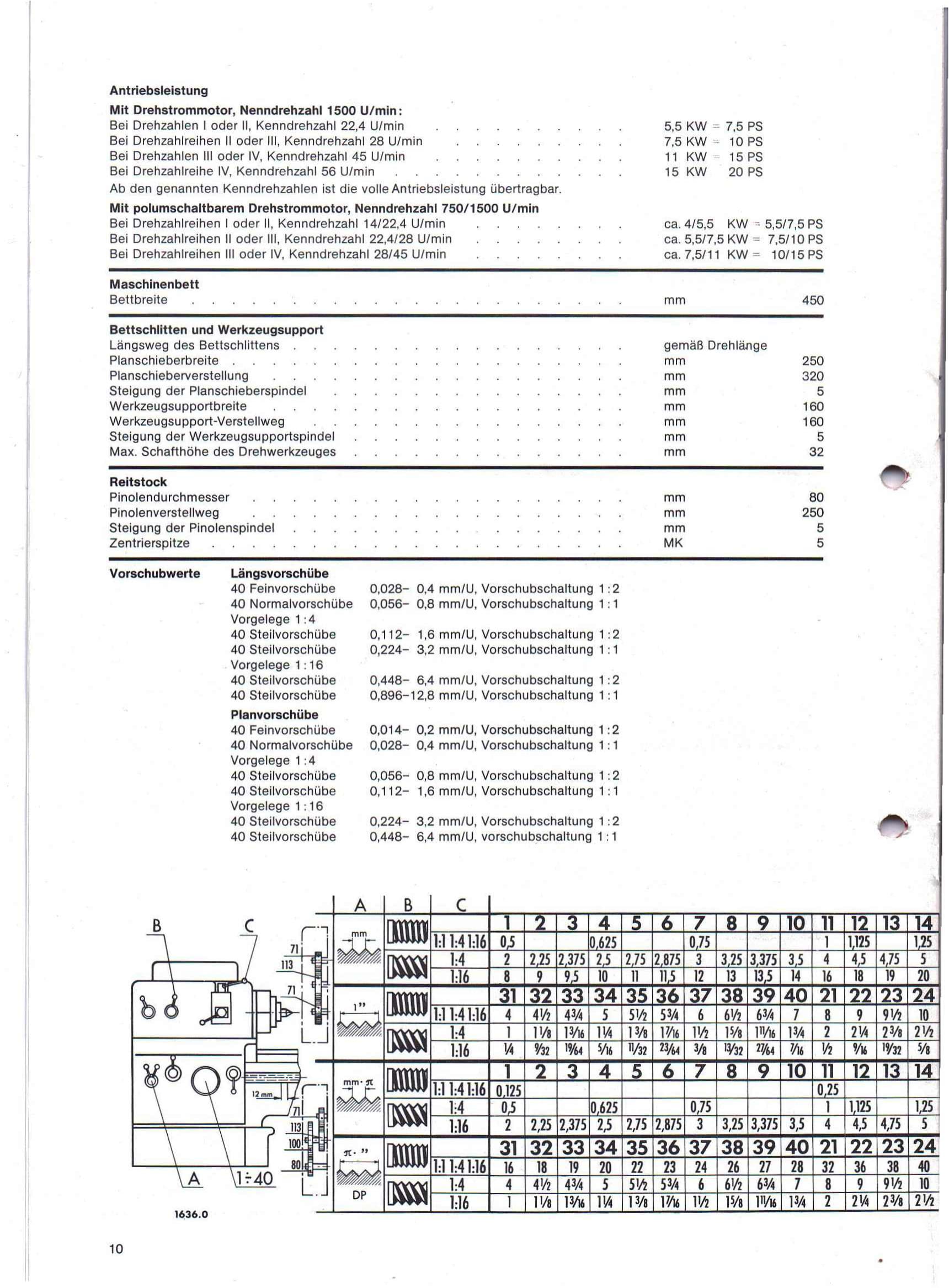

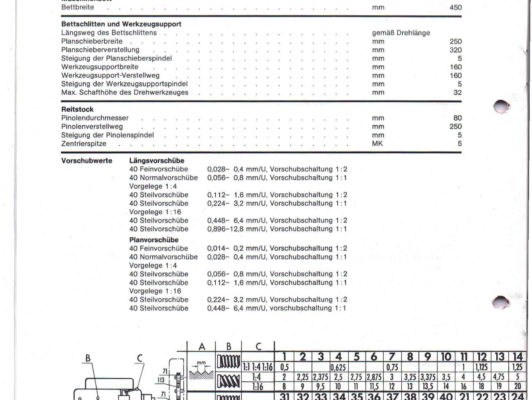

Longitudinal feeds: 0,028 to 12,8mm/rev
Cross feeds : 0,014 to 6,4 mm/rev
Equipment:
2 x 4 jaw chuck
3 jaw chuck

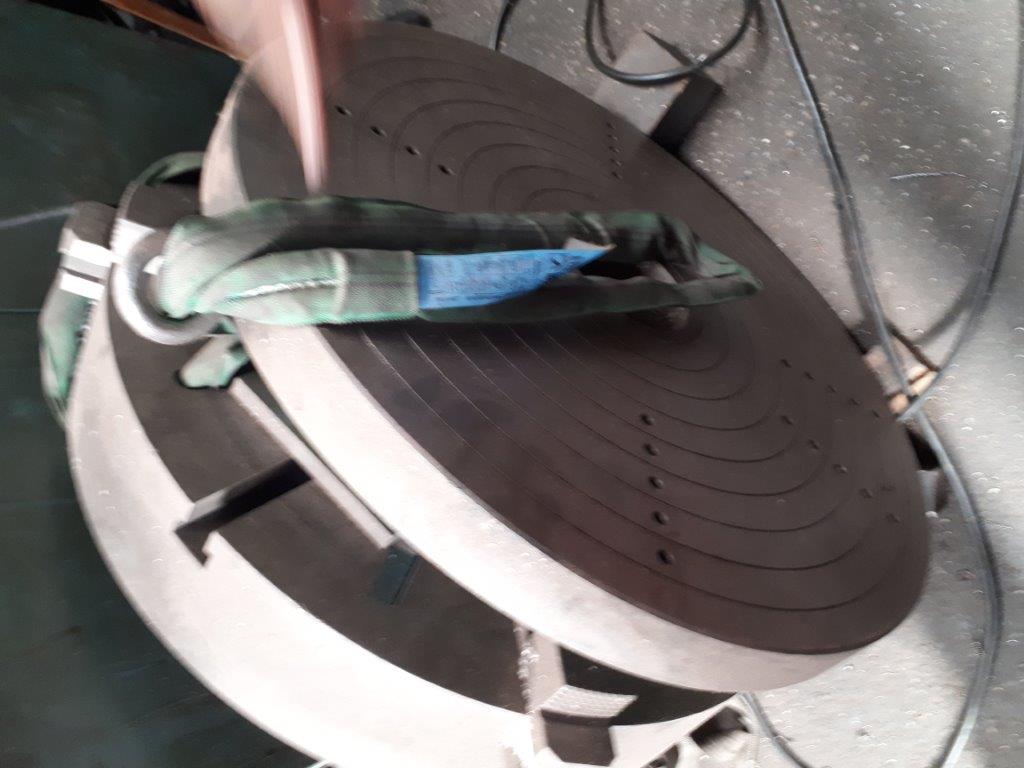

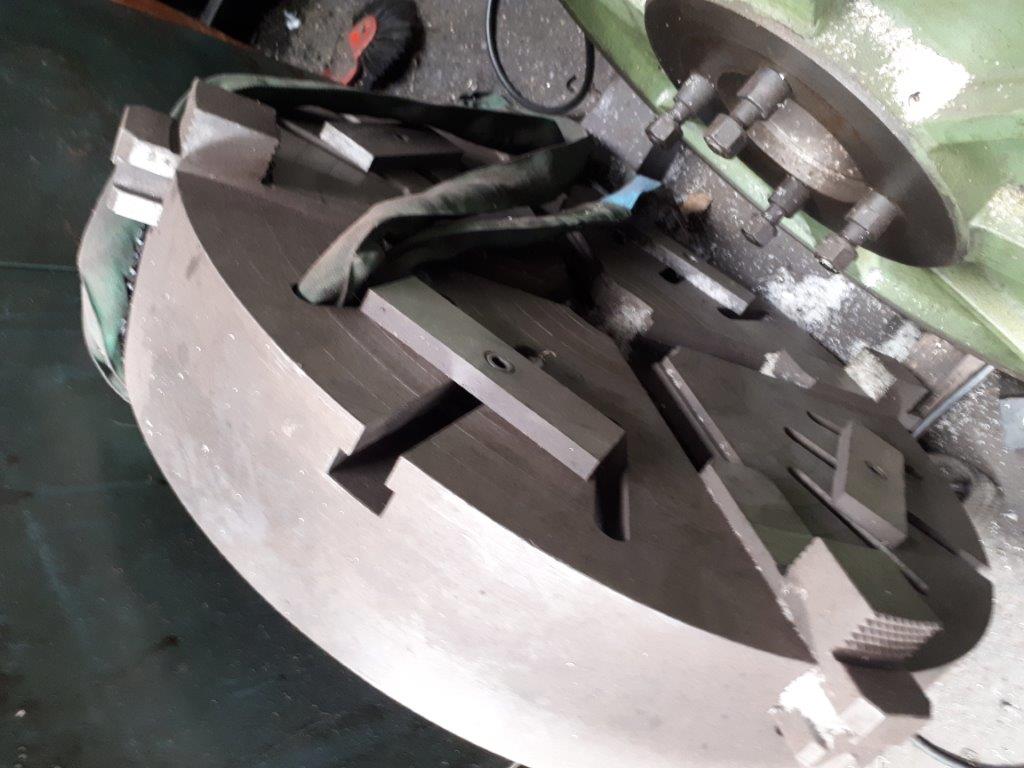

1 plate diameter 700 mm

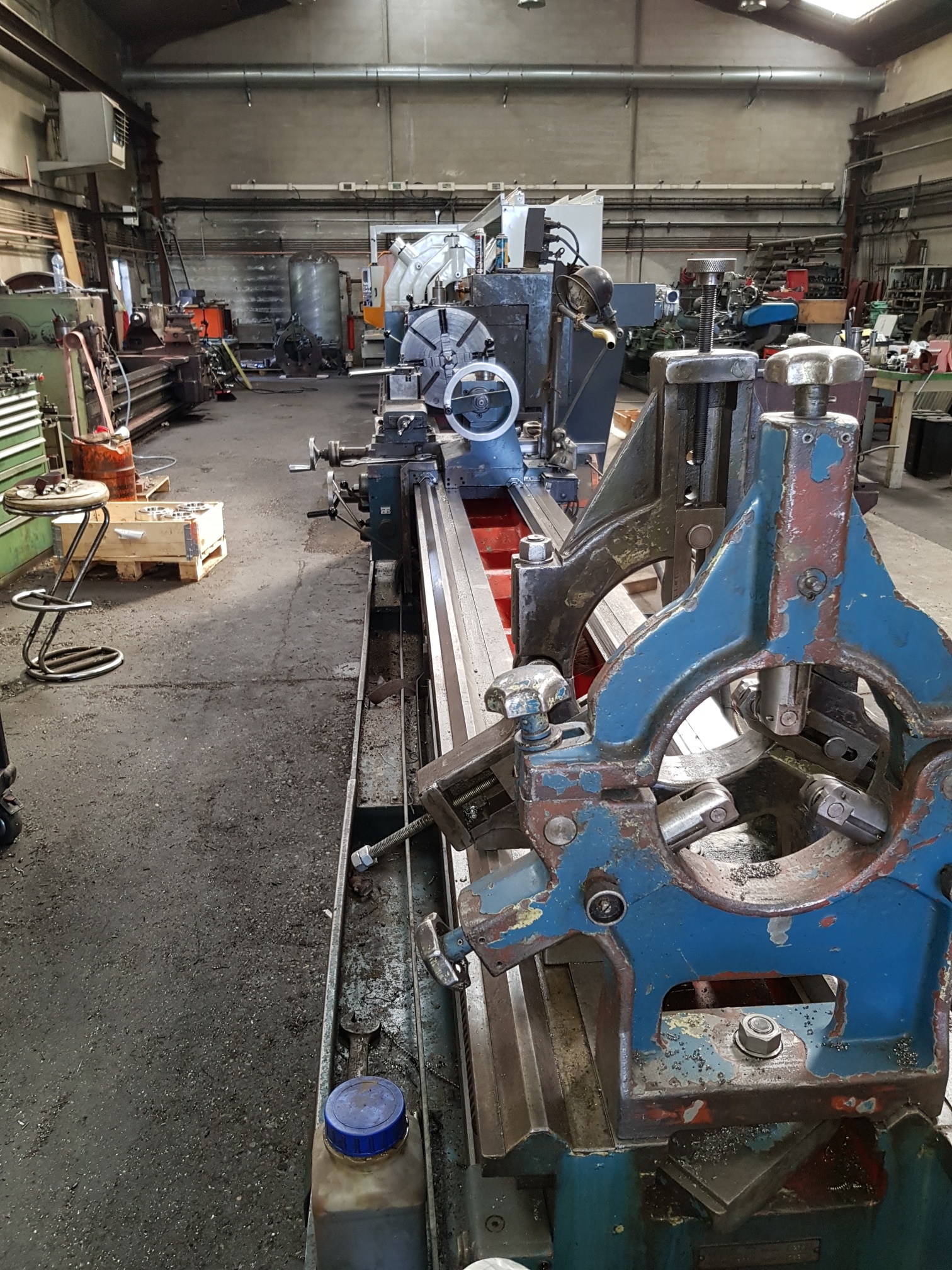

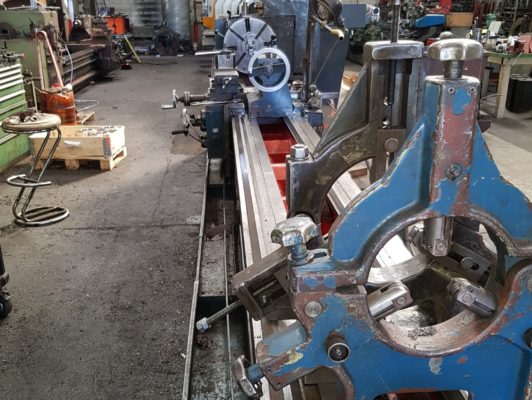

2 steady rest
