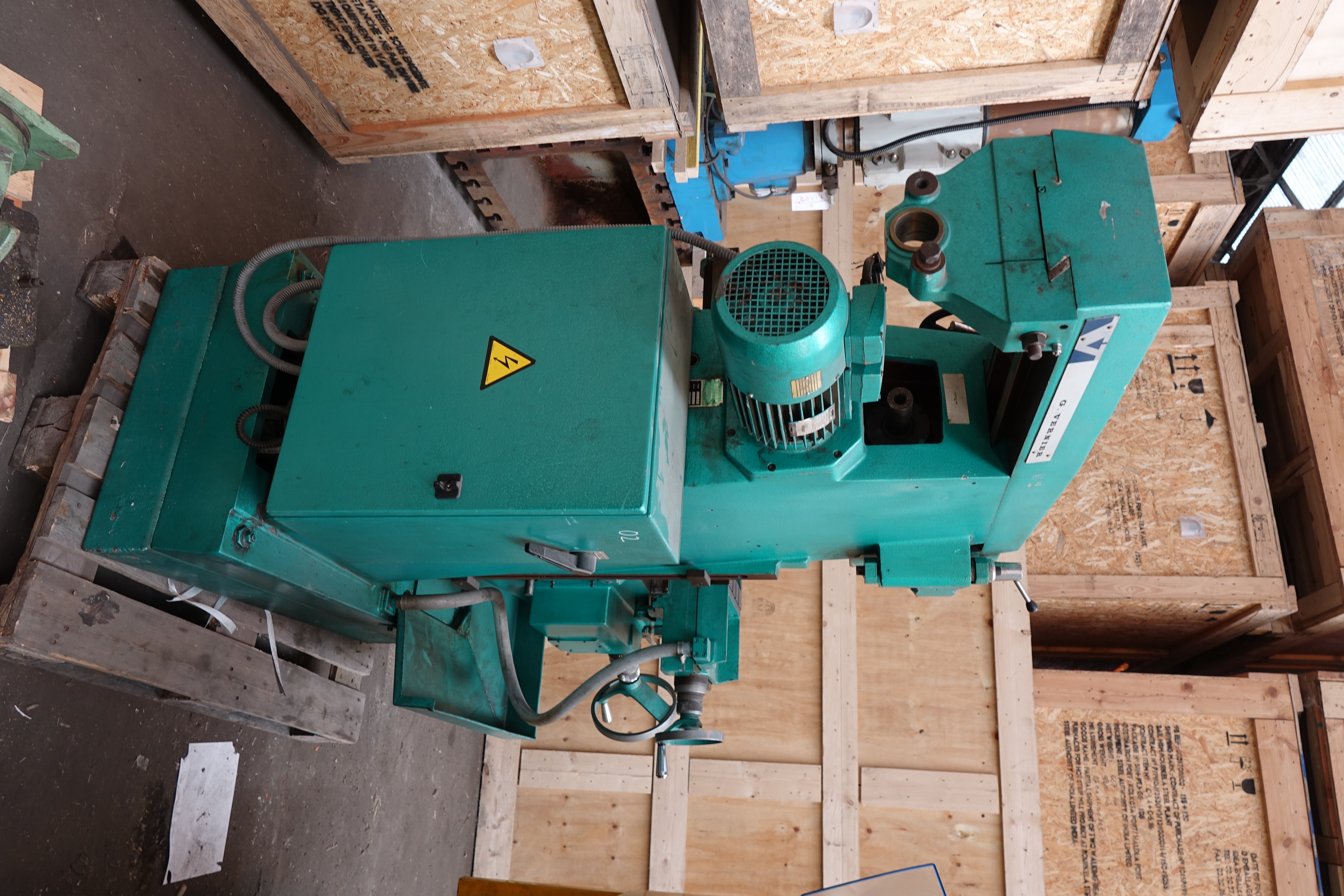

VERNIER FV 250 - Used machine
Model | FV 250 |
Longitudinal travel of the table | 670 mm |
Vertical stroke | 430 mm |
Cross travel | 270 mm |
Clamping surface of the table | 1000x260 mm |
Number of T-slots | 3 |
Spindle taper | SA 40 |
Spindle speed | 45 to 2000 RPM |
spindle power feed | 16 to 400 mm/mn |
Main motor | 4 CV |
Dimensions | 1825x1870x1600 mm |
Weight | 1800 Kg |
Electricity and mecanics redone in 1997.
