TruPunch 5000 – 1600 FMC - Used machine

Year: 2011
Working hours machine: 35.975 (13.05.2016)
Max. punching force approx.: 220 kN
Working range: 3050 x 1550 mm
Control: Siemens Sinumerik 840 D
Max. sheet thickness approx.: 8 mm
Space requirement approx.: 16420 x 7905 mm
Machine weight approx.: 17.300 kg
Electrical connected load approx.: 38 kVA
Standard configuration
– Stable C-frame for easy access
– Linear magazine with 18 tool stations incl. 4 clamps
– Ball-fitted tables
– Parts chute 500 x 500 mm
– Chip container
– Automatic shut down mechanism
Punching head
– Hydraulic single-tool adapter 360° rotation
– Programmable presser foot
– Spray lubrication for punches
– Vacuum slug removal
Control
– Controller based on Sinumerik 840D
– Control Panel with TFT screen 12″
– Teleservice

Data transmission
– USB-interface
– Network connection
Safety
– CE-marking
– Multi-beam light barriers
– Rapid hydraulic shutdown
– Sheet collision detection
Programming
– Shopfloor programming based on TruTops Punch Basic –
– Simplified programming
Extended machine accessories
Punching Options
– Function MultiTool
– Function tapping
– Function marking / rapid beading
– Function deburring and roll technology
– StripLine
– Die spray lubrication
– Active die
Machine options
– Repositioning cylinders
– Sensor for part chute
– Chip conveyor with tilt container
Options for Thin Sheet Processing
– Brush tables with loading and unloading aid
Automation:

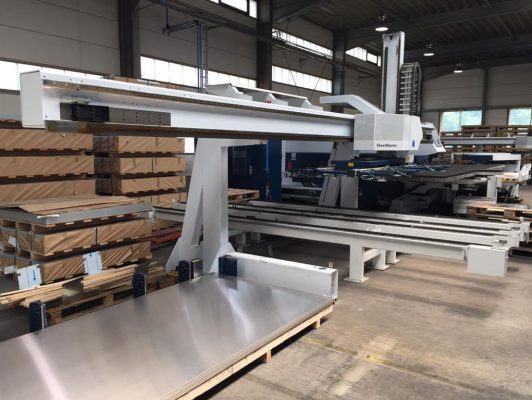

– SheetMaster (3000 x 1500 mm)
– Loading / unloading podest 3000 x 1500 mm
– Suction frame 3000 x 1500 mm
– Peeler cup
– Vaccum sensor

-Central lubrication
– Sheet thickness sensor for double sheet check
– Control TASC 100
– Clamp closing automatically
– Suction plate module
GripMaster (3000 x 1500 mm)
– Sheet skeleton grippers with sensor
– Scissor table 400 mm
– Sheet skeleton pallet tiltable 3000 x 1500 mm
– additional sheet skeleton pallet tiltable 3000 x 1500 mm
– interface for TruStore
