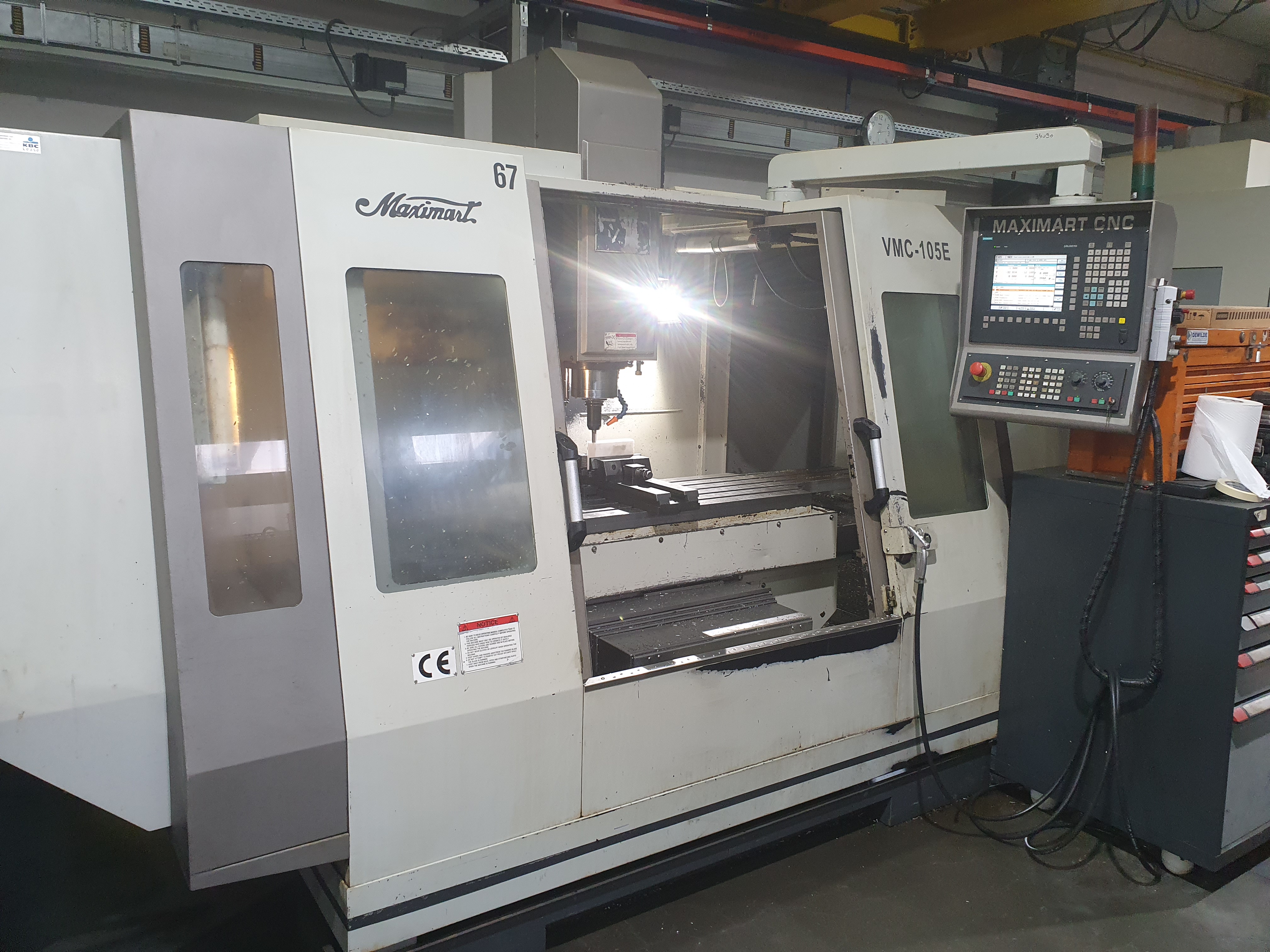

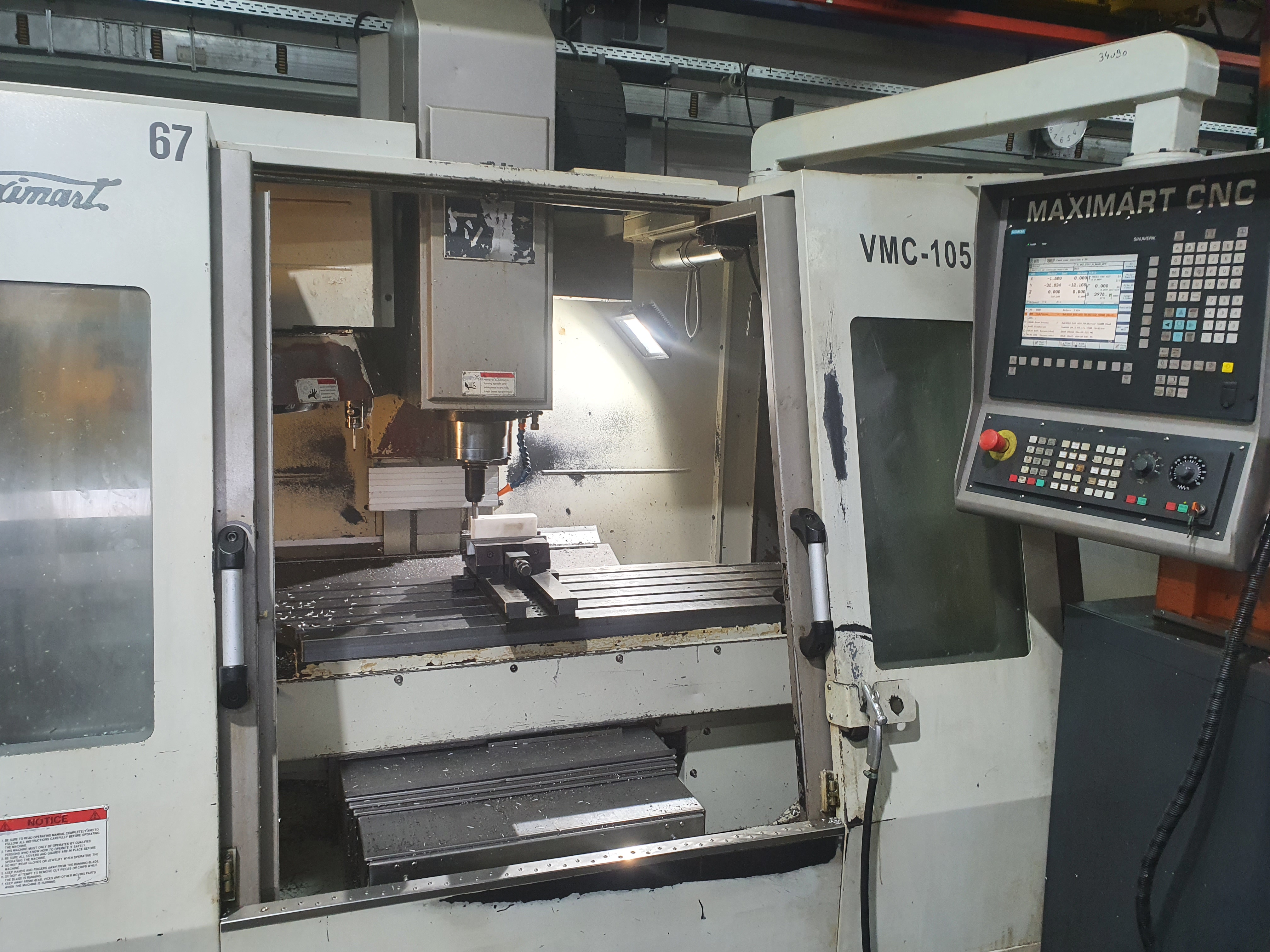

MAXIMART VMC 105 E - Used machine
Model | VMC 105 E |
Longitudinal stroke - X | 1050 mm |
Cross travel - Y | 560 mm |
Vertical stroke - Y | 520 mm |
CNC system | SIEMENS SHOPMILL 810 |

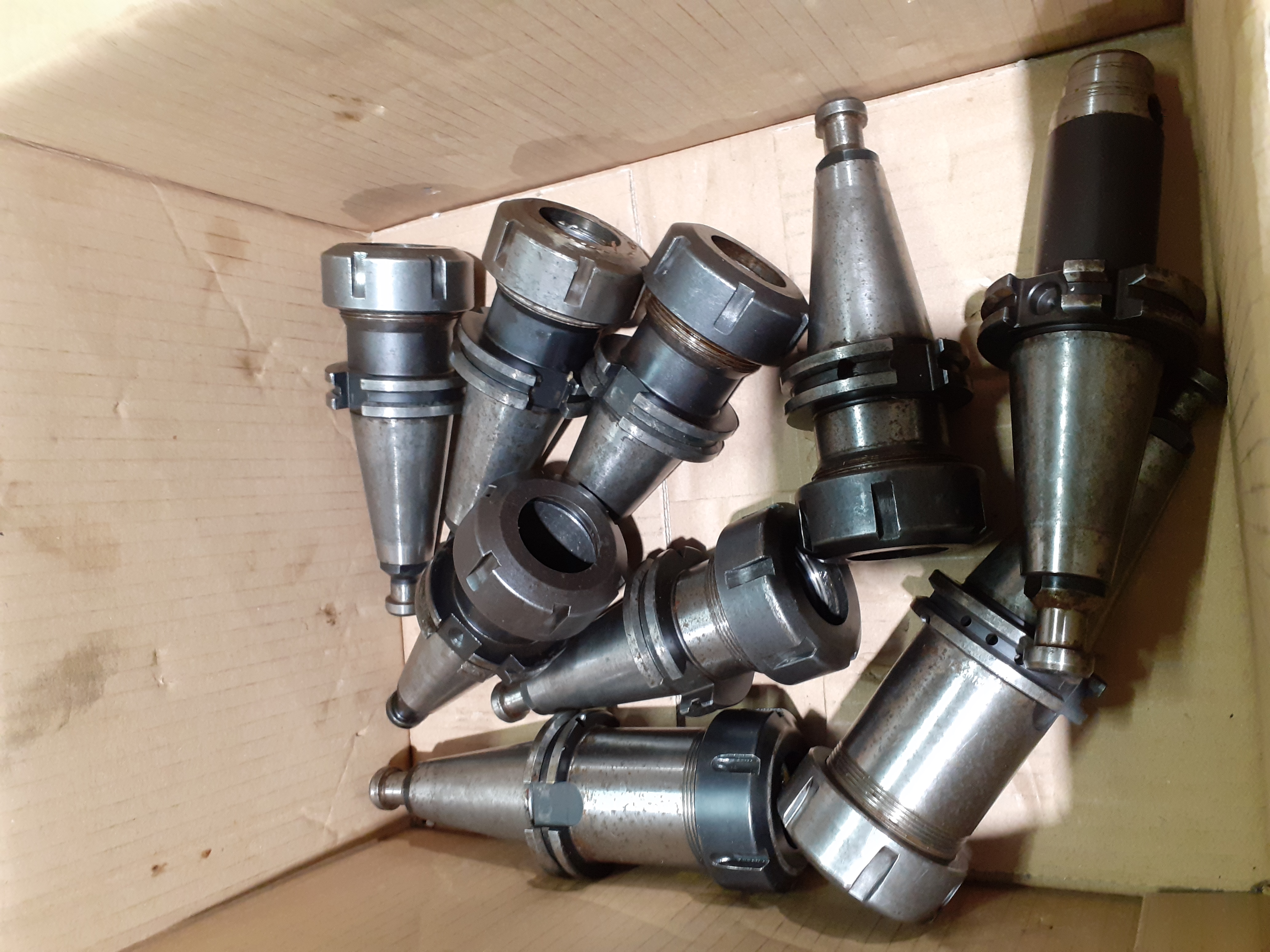

Spindle taper | BT 40 |

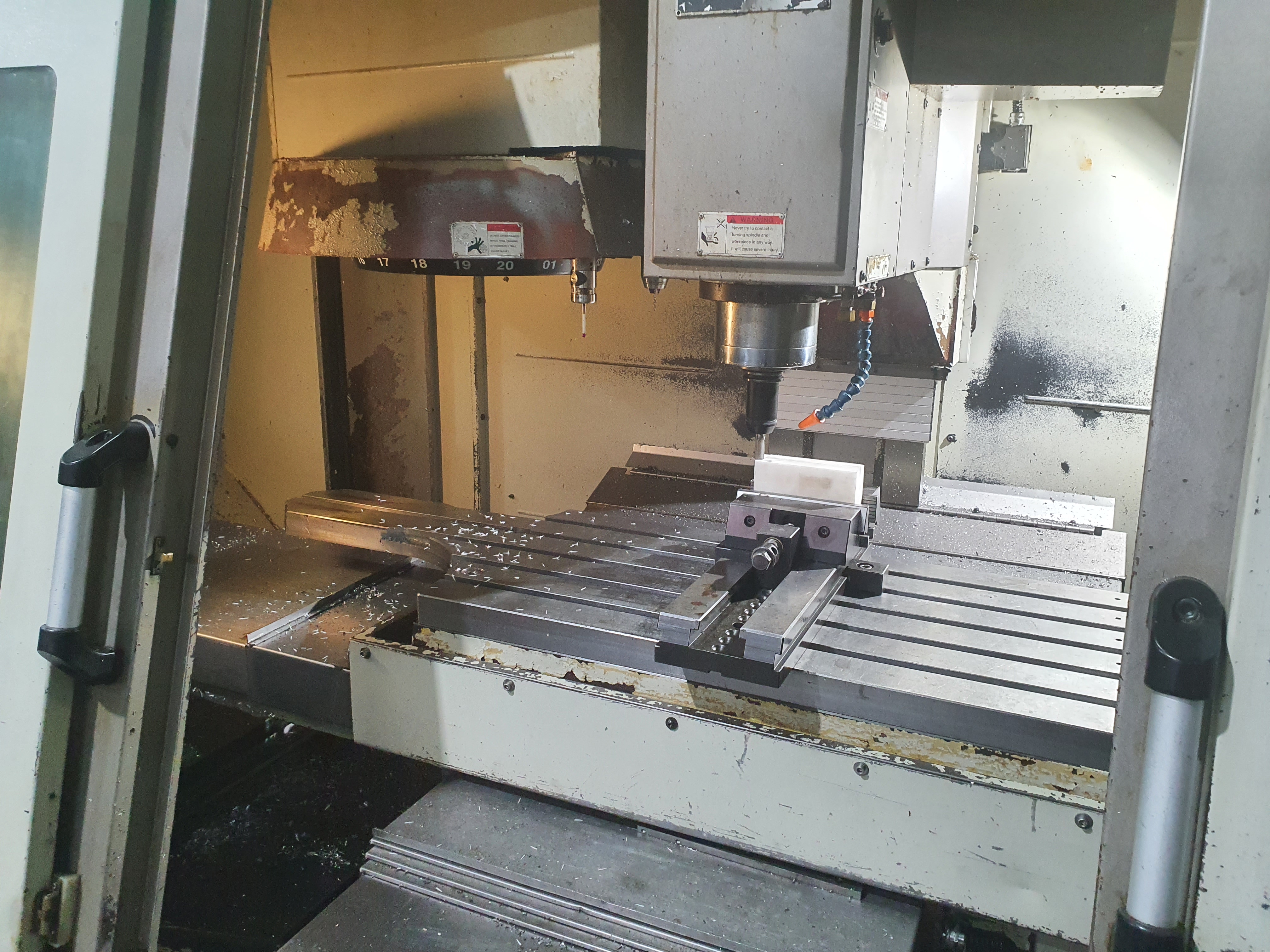

Table area | 1250x515 mm |
Max weight admitted | 800 kgs |
Max center distance of the splines | 80 mm |
Number of T-slots | 5 |
Spindle speed | 60 - 8000 RPM |
Maximum width of T-slot | 18 mm |
Max distance between table and spindle nose | 677 mm |
Min distance between table and spindle nose | 157 mm |
Distance between the spindles axis and the frame | 580 mm |
Tool storage | 20 outils |
Max weight of the tools | 7 kgs |
Max tool diameter | 100 mm |
coarse feed of X and Y axis | 15000 mm/mn |
coarse feed of Z axis | 12000 mm/mn |
Automatic feed by variator | 1 - 5000 mm/mn |
Spindle motor | 7,5/11 KW |
Dimensions | 3620x2530x2520 mm |
Year | 2006 |
