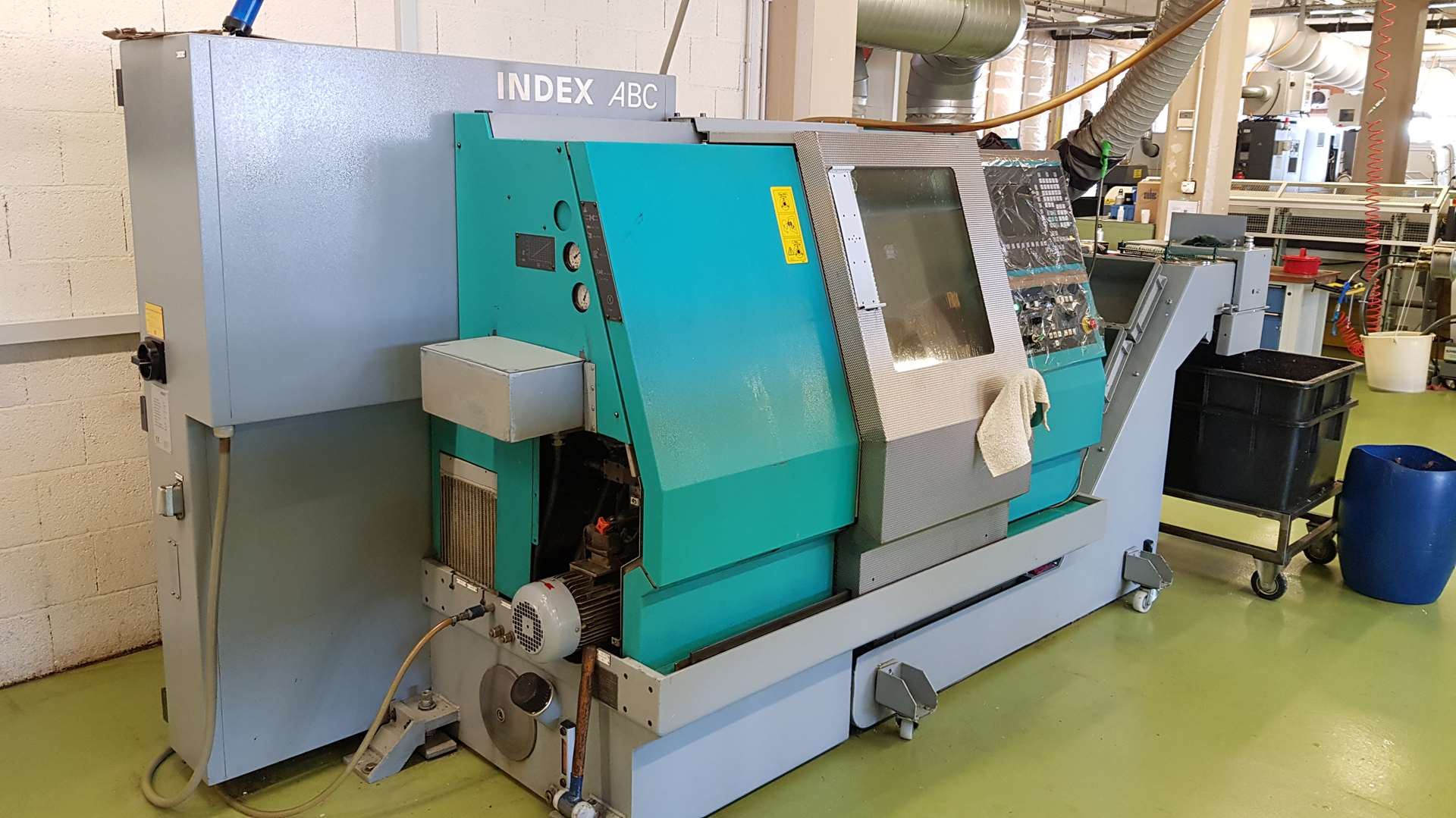

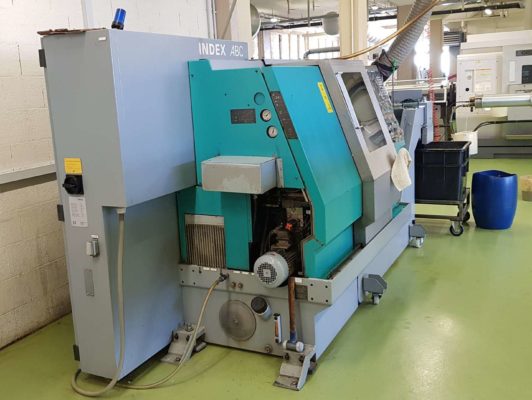

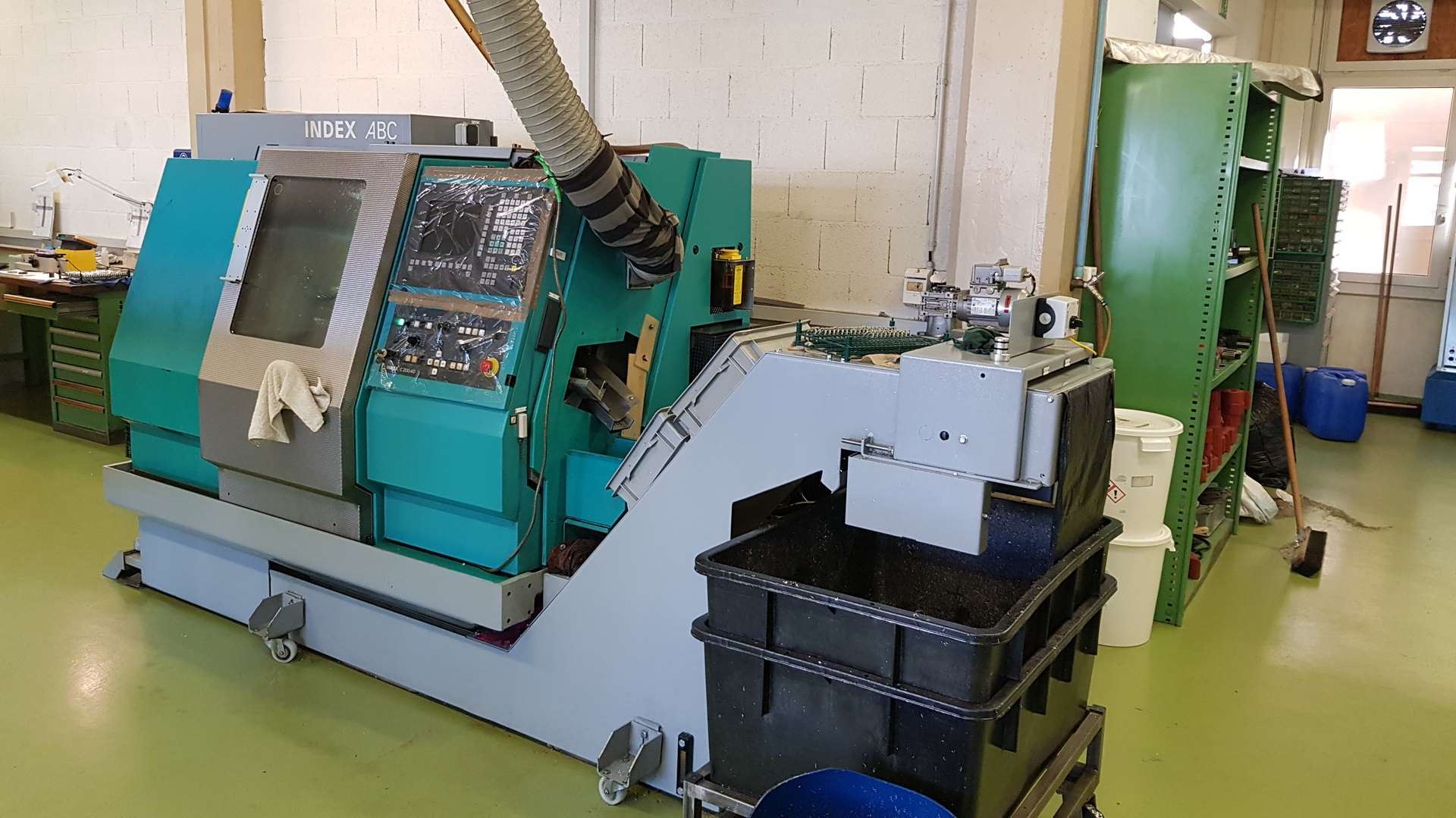

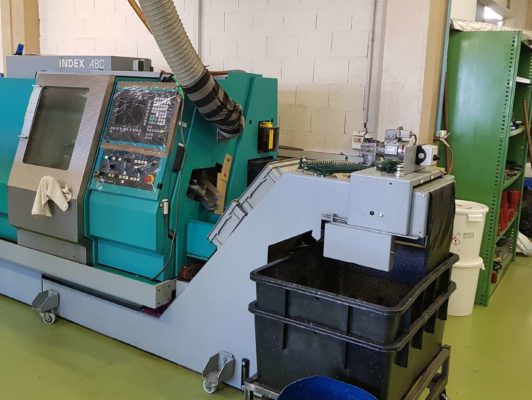

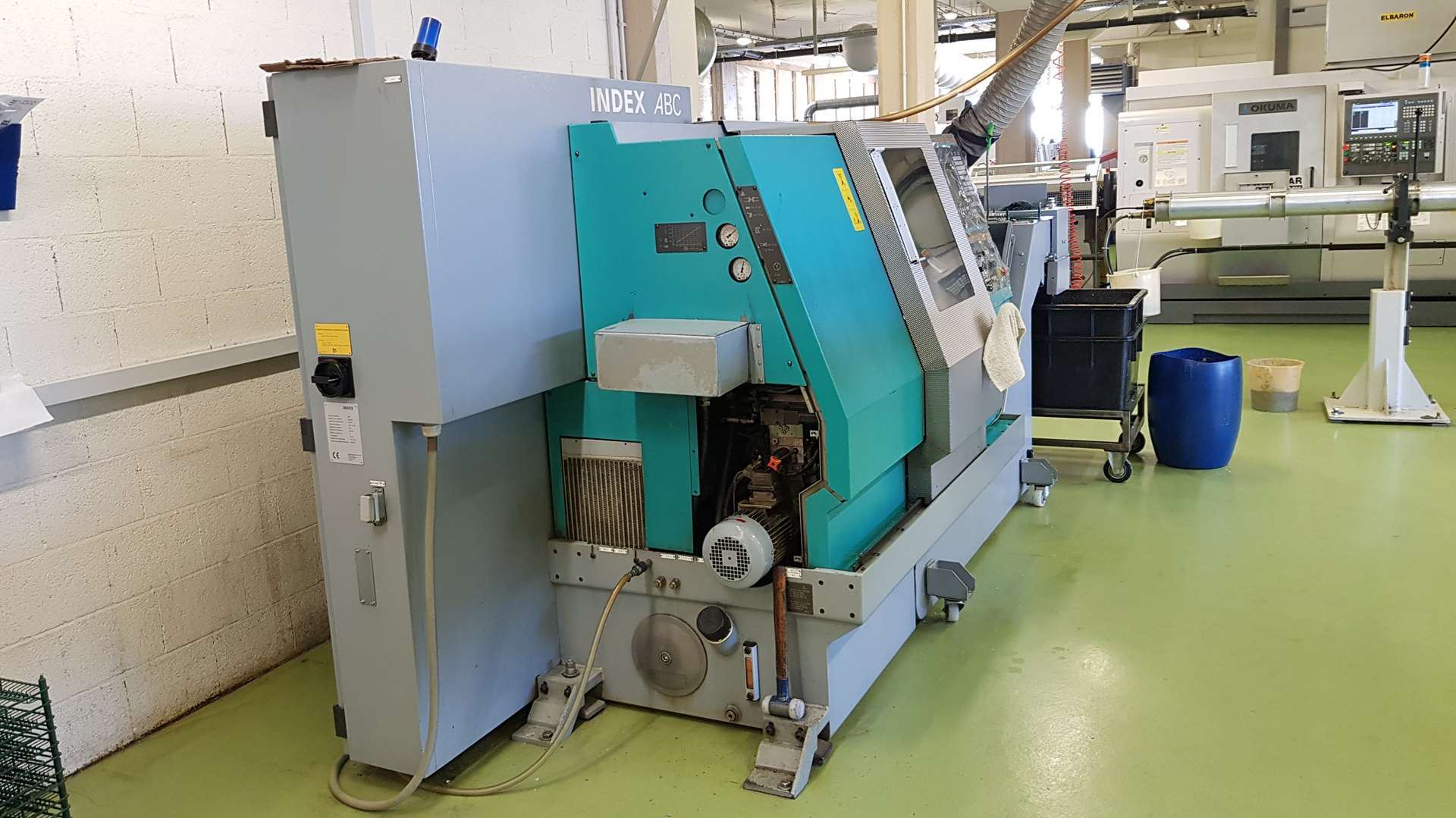

INDEX ABC - Used machine
SOLD
| Number of spindles | 1 |
| Power supply | 400 [V] |
| Model | ABC |

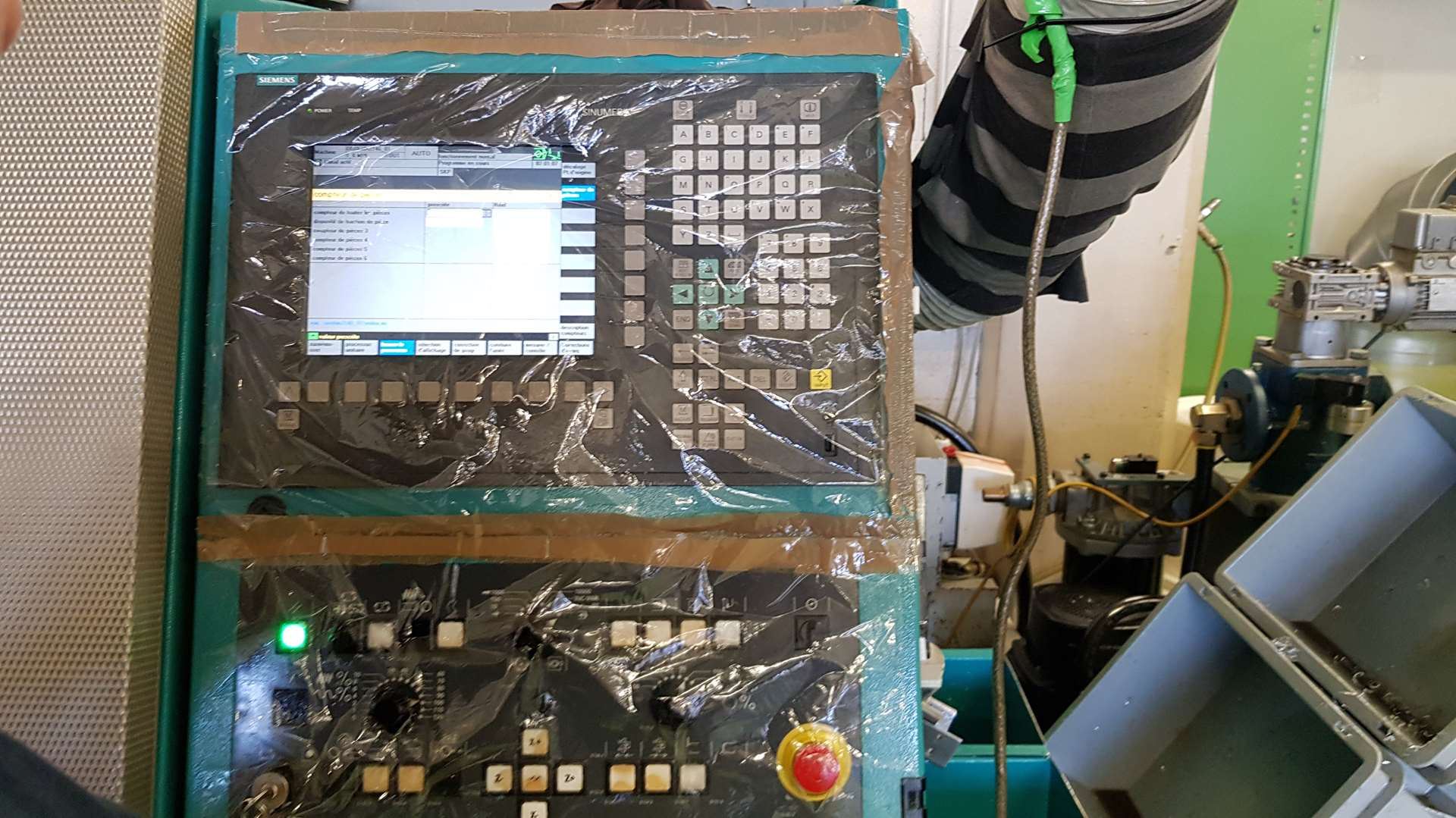

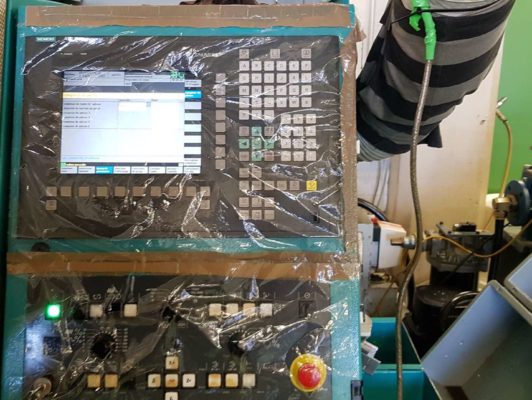

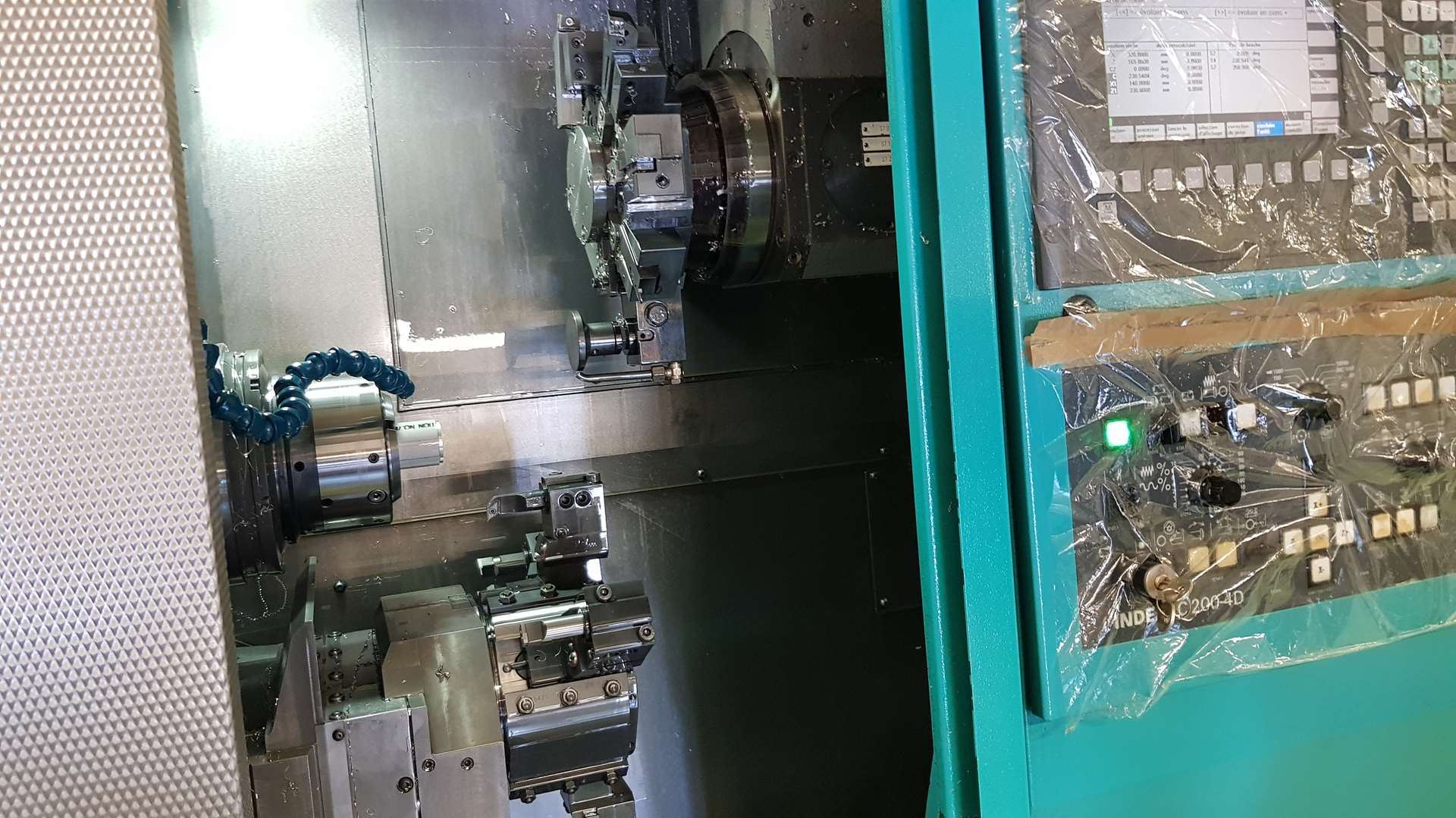

| CNC system | INDEX C200-4D |
| Spindle speed | 7000 RPM |
| Passage diameter | 42 (36) mm |
| Spindle motor | 20 KW |
| Coarse feed of X axis | 27000 mm/mn |
| coarse feed of Z axis | 36000 mm/mn |

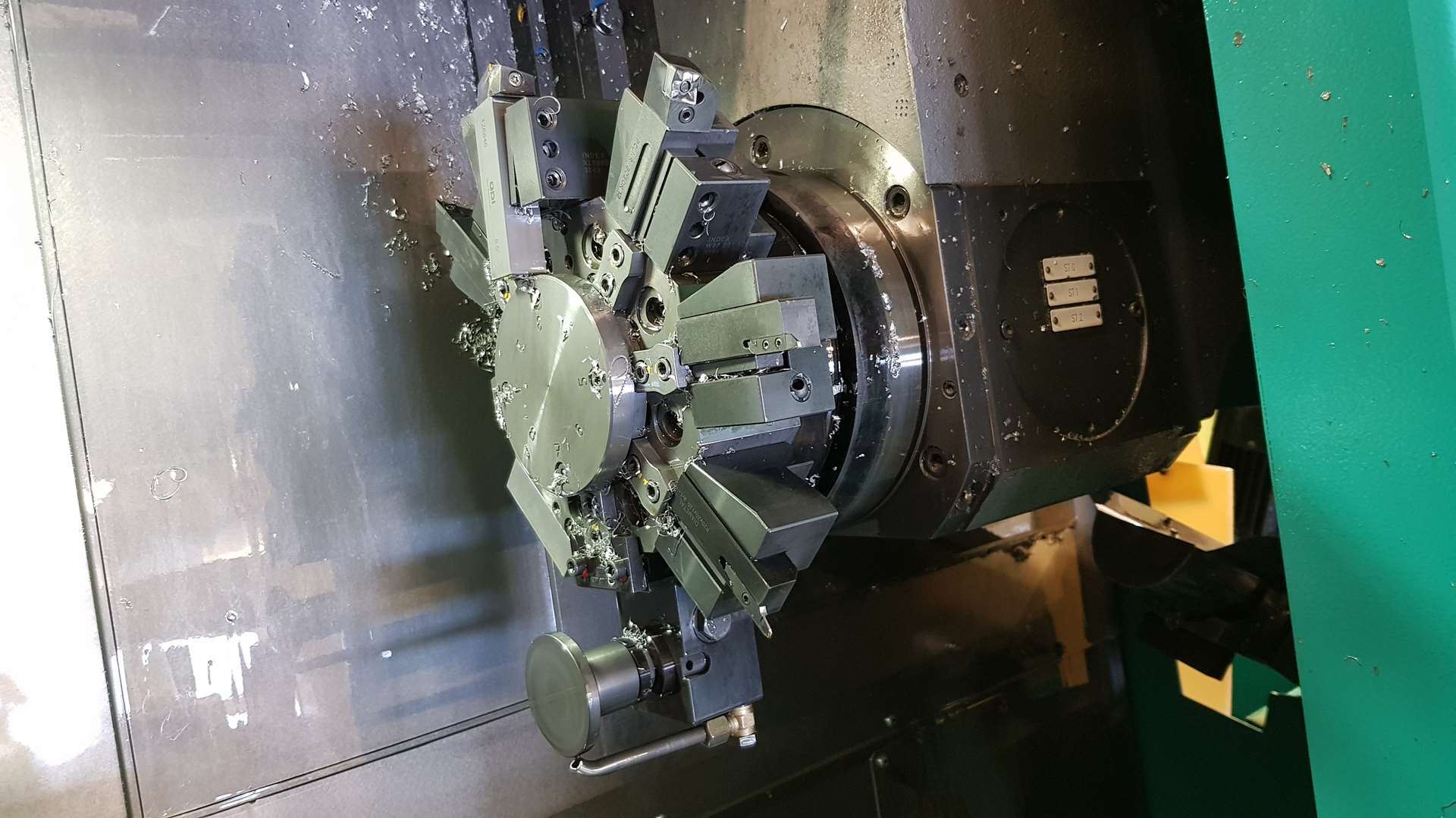

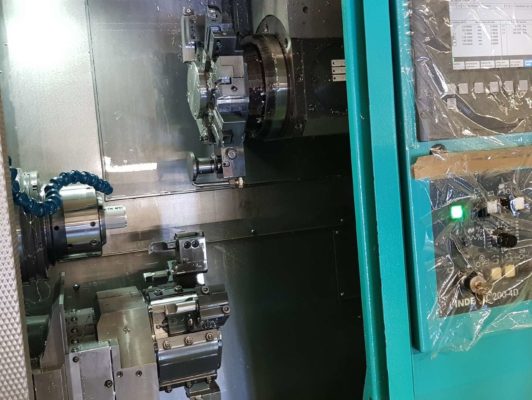

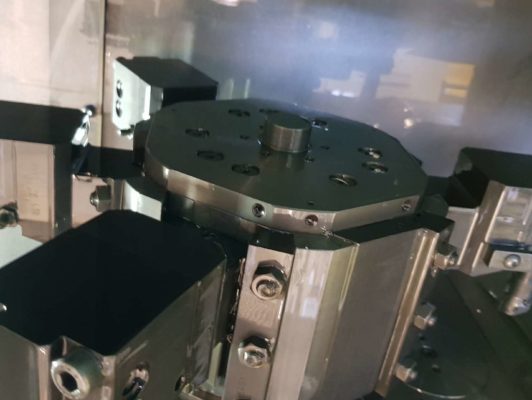

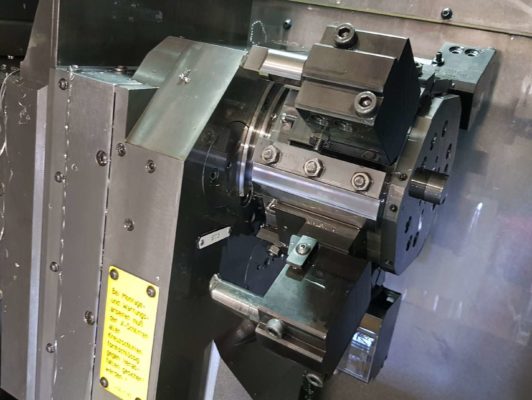

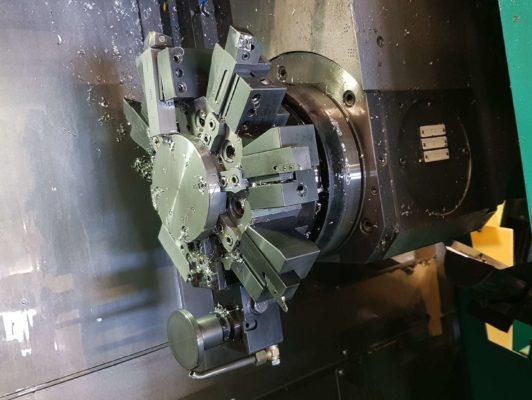

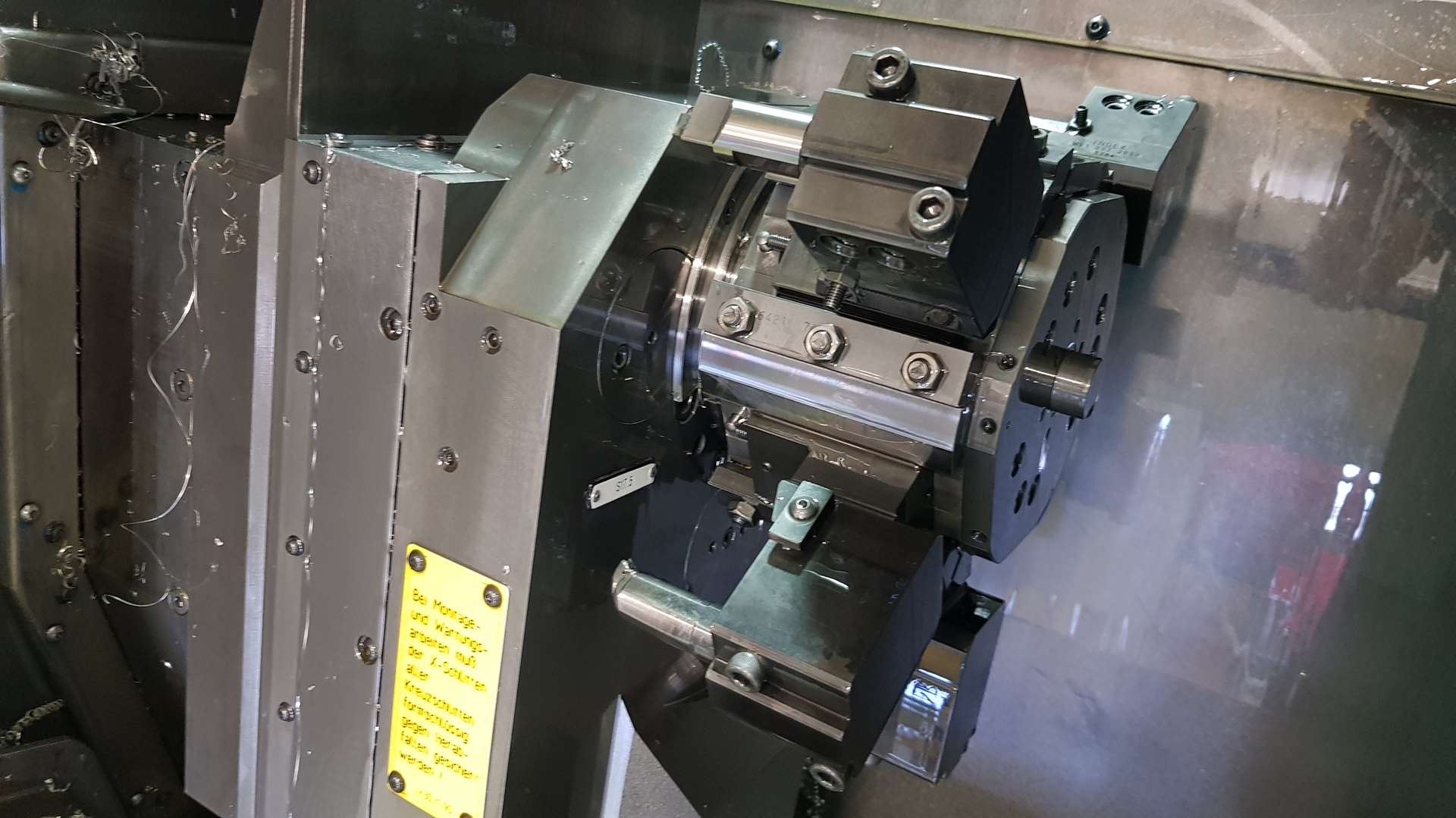

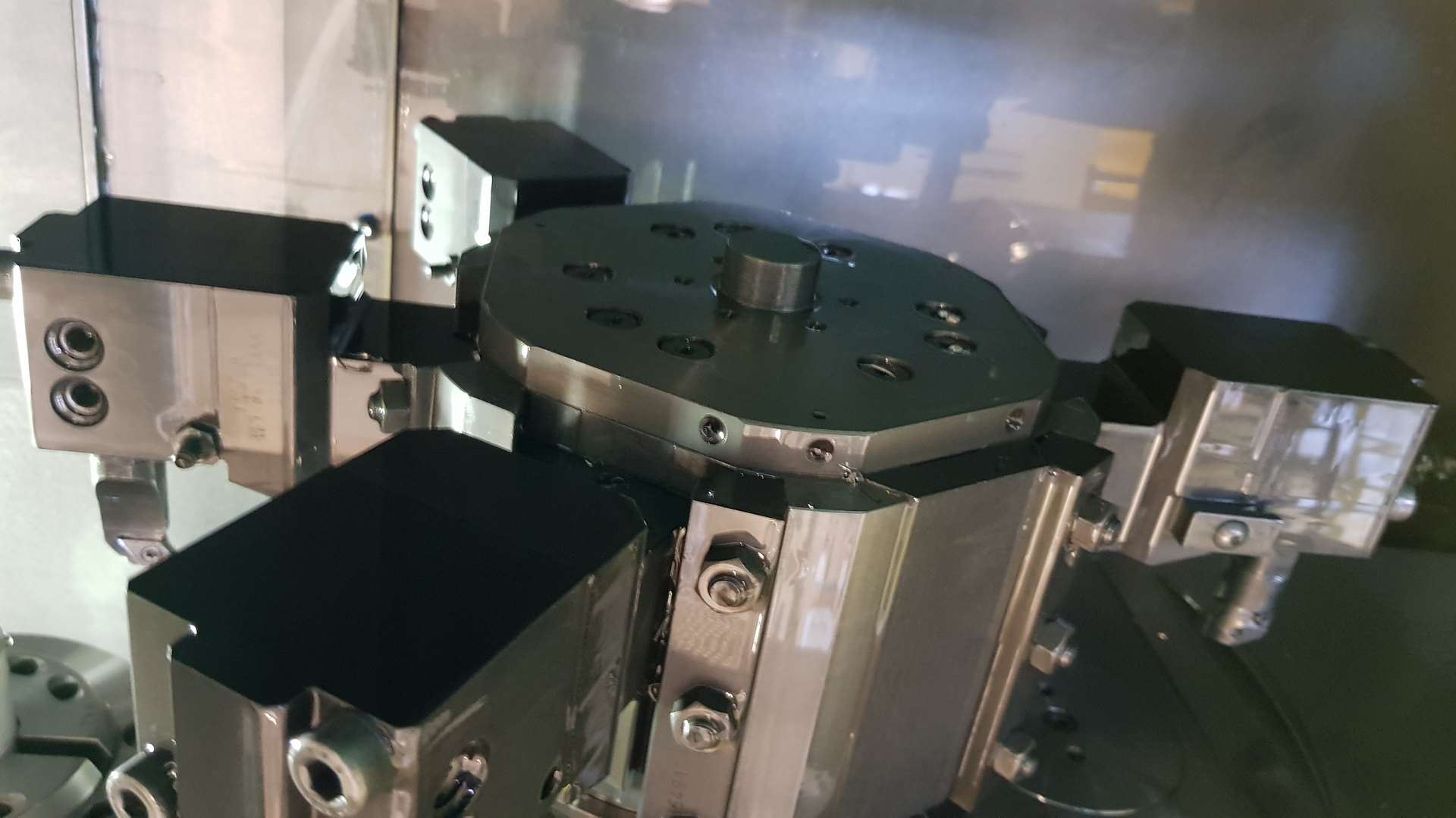

| Number of stations on turret | 6 |
| Carriage stroke | X : 81 Z : 80 mm |
| Year | 2005 |
| Dimensions | 3387x1468x1750 mm |
| Weight | 2500 Kg |

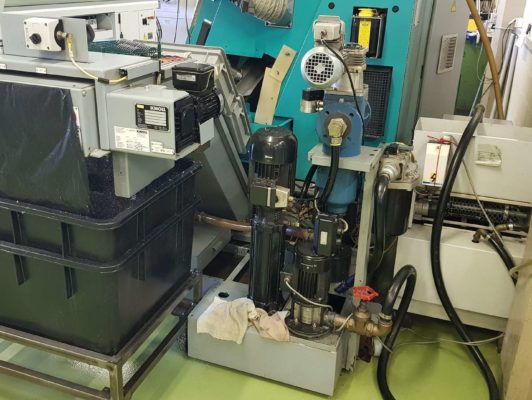

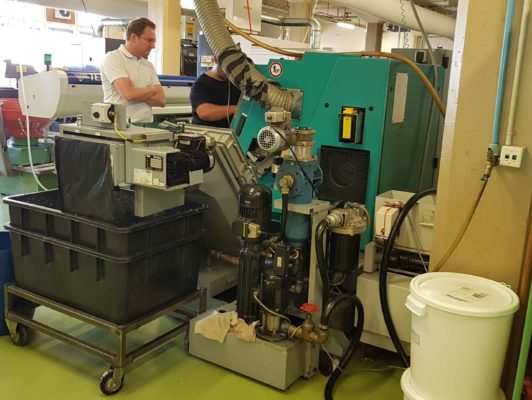

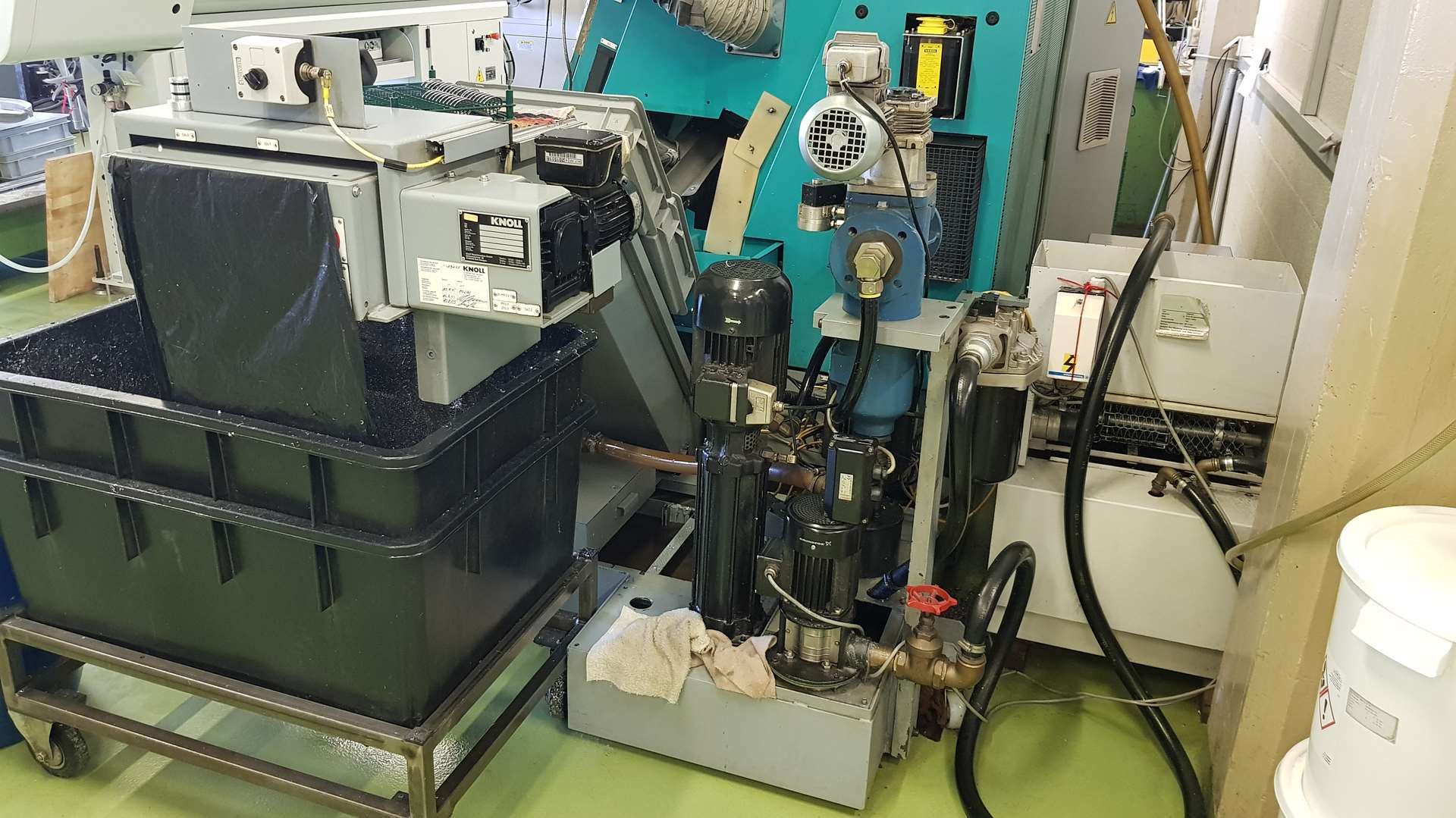

– Coolant tank

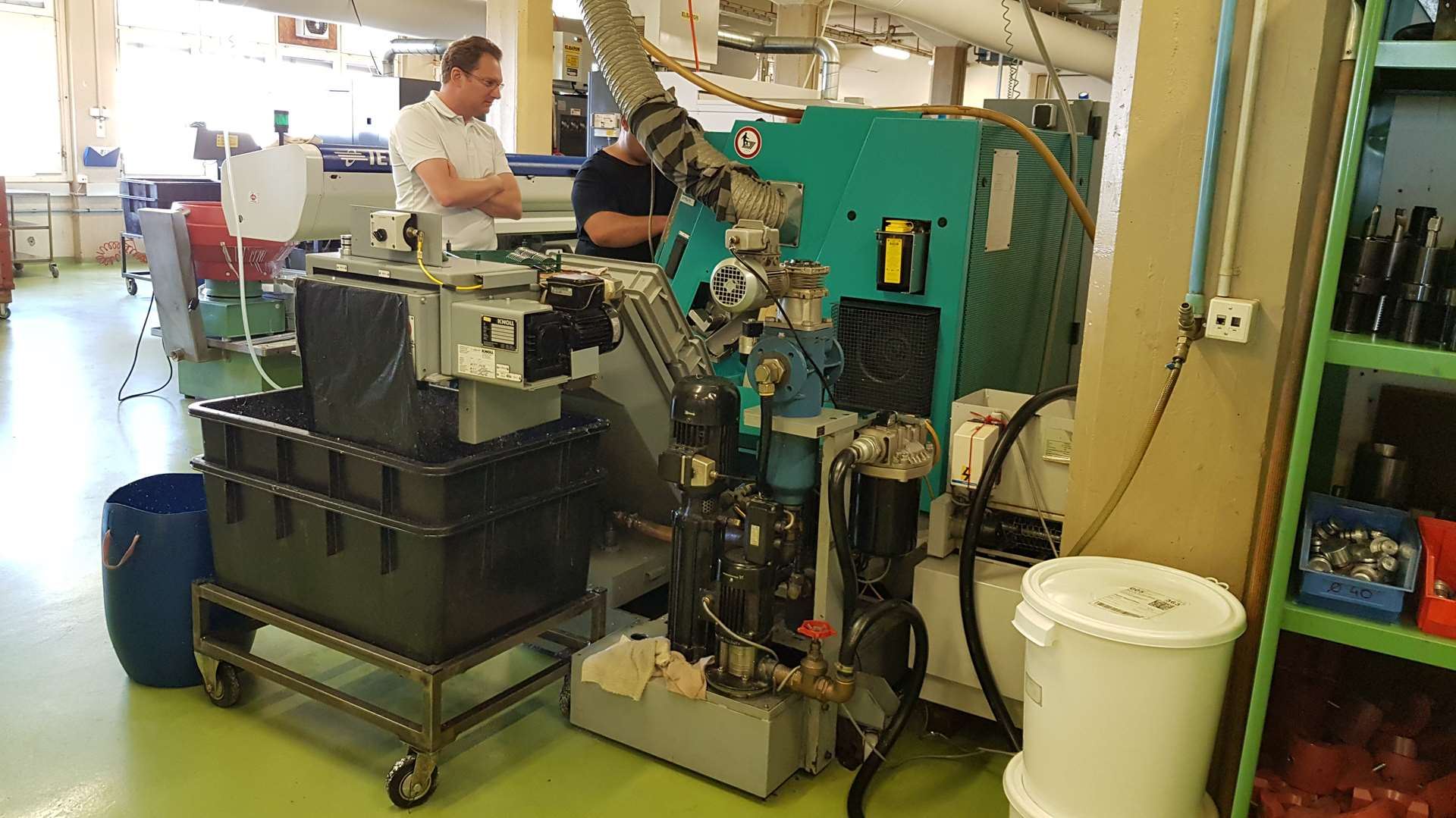

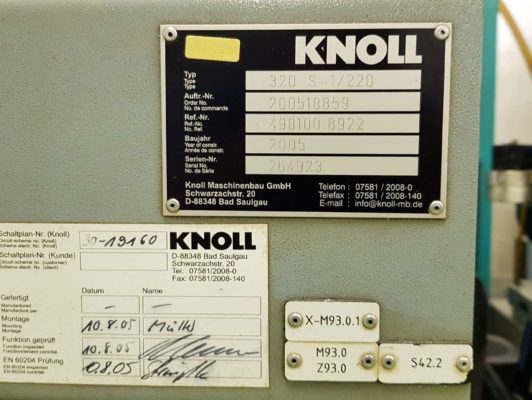

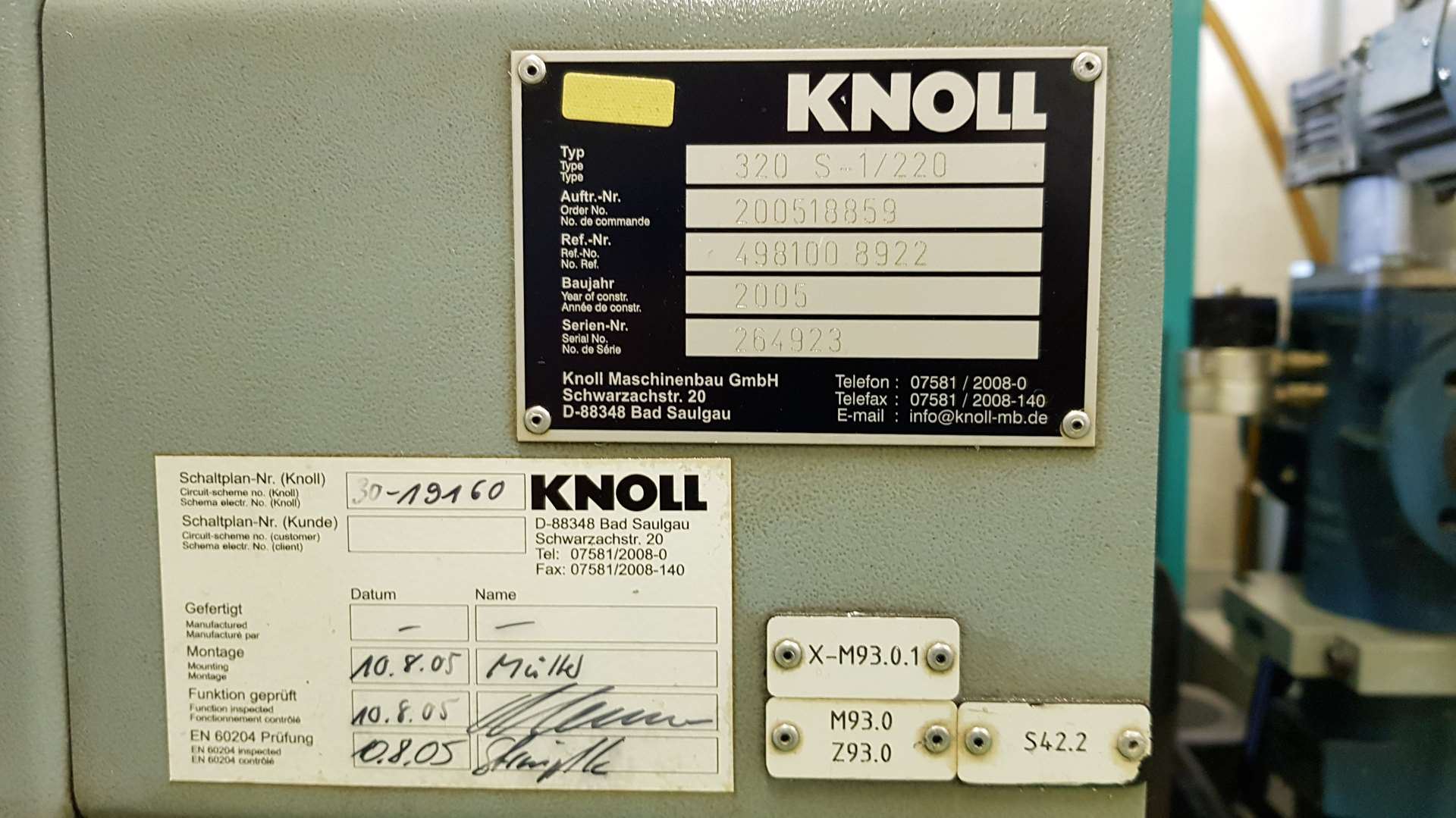

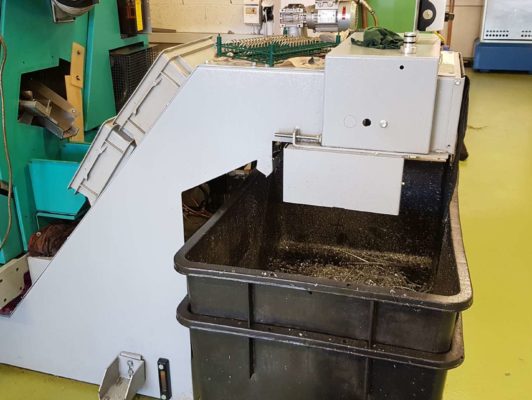

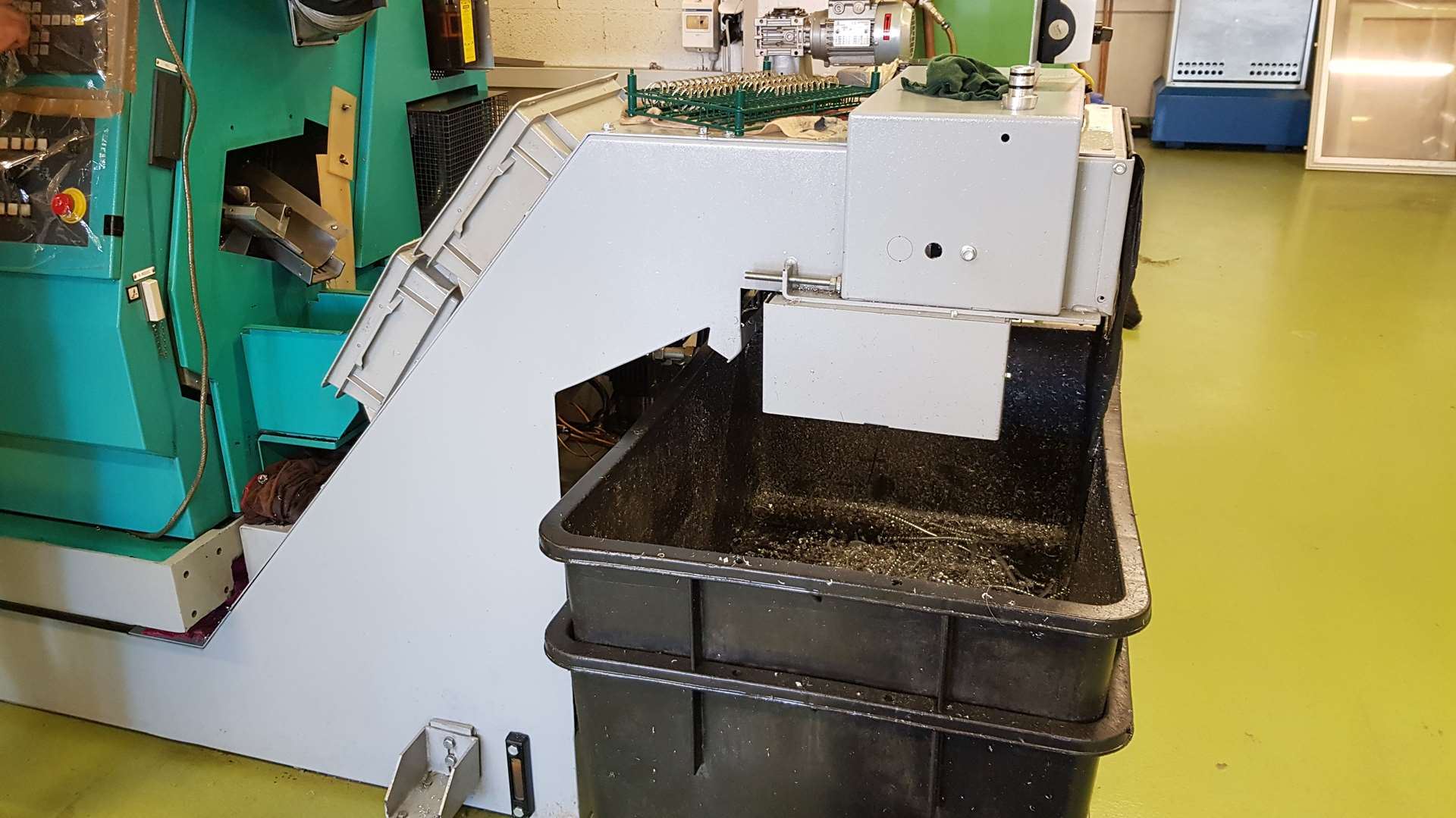

– Chips conveyor : KNOLL type 320 S-1/220
– Parts catcher
– Parts conveying strip

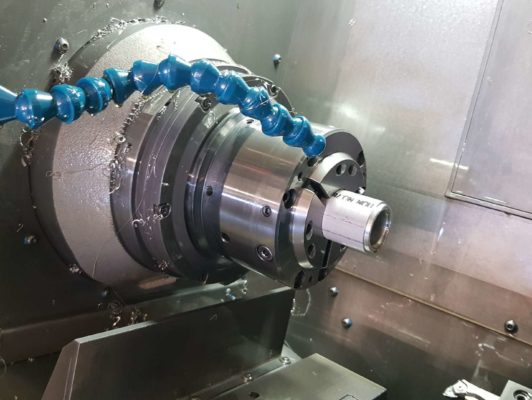

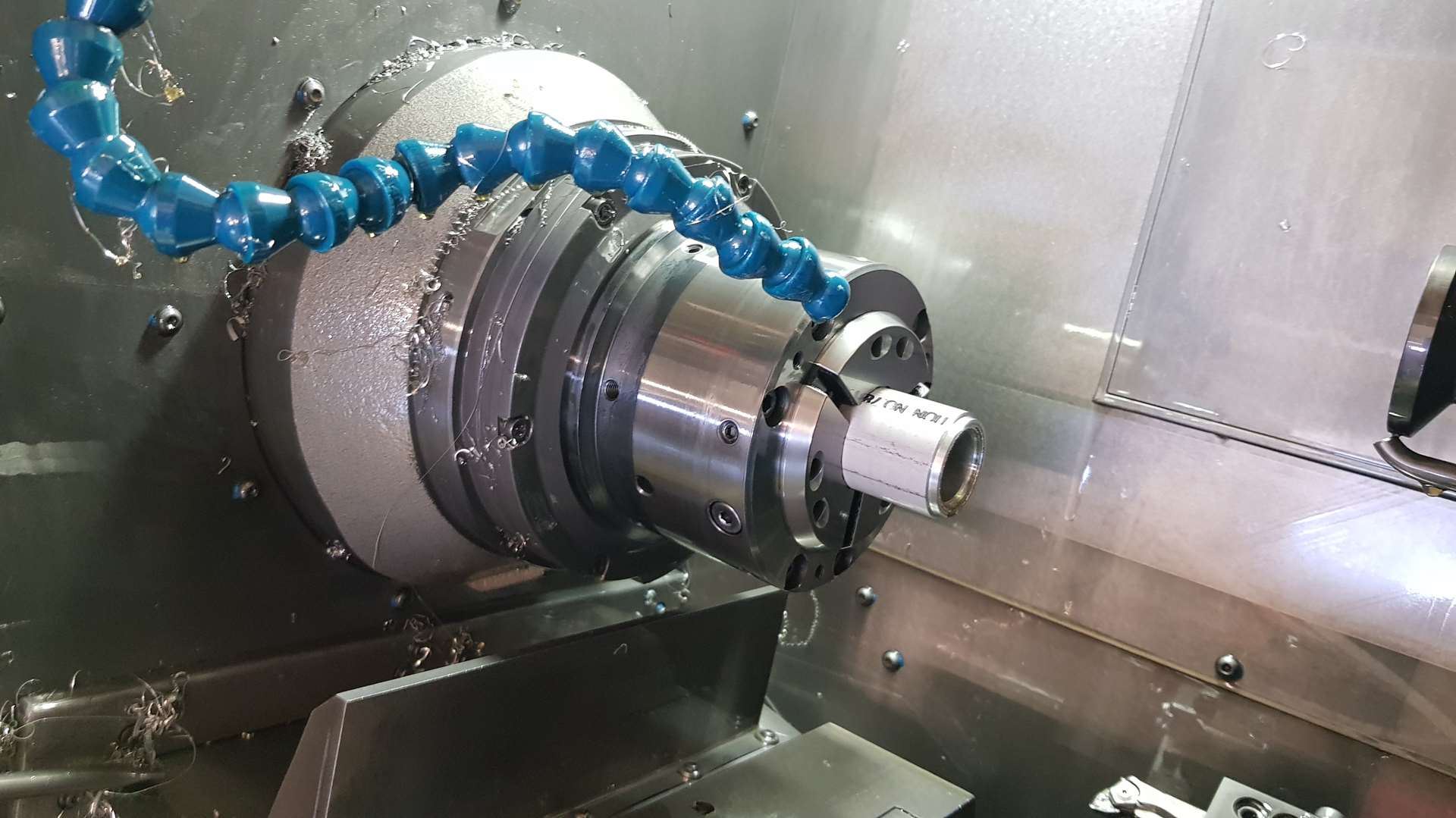

– Collet chuck : HAINBUCH 65

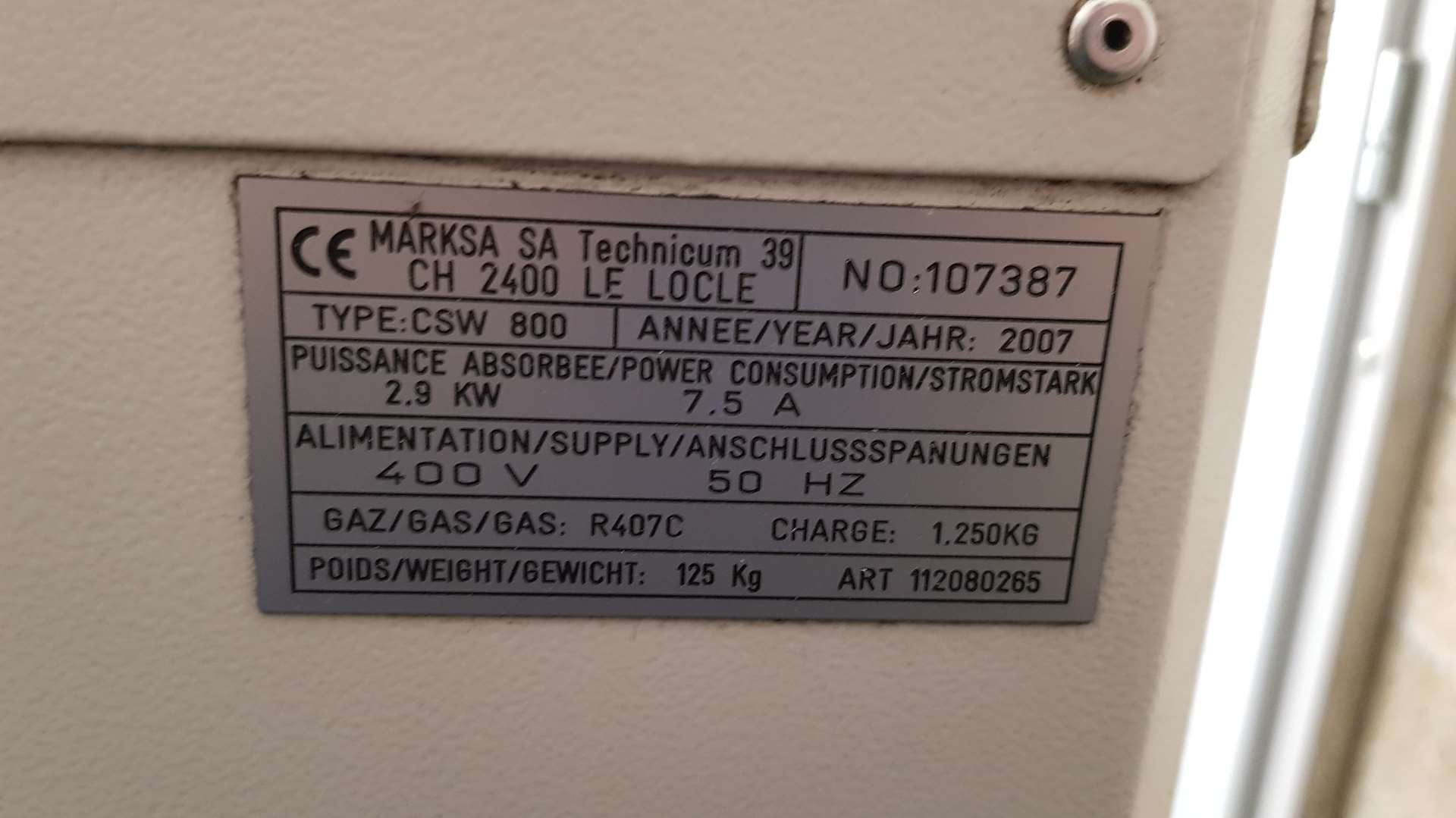

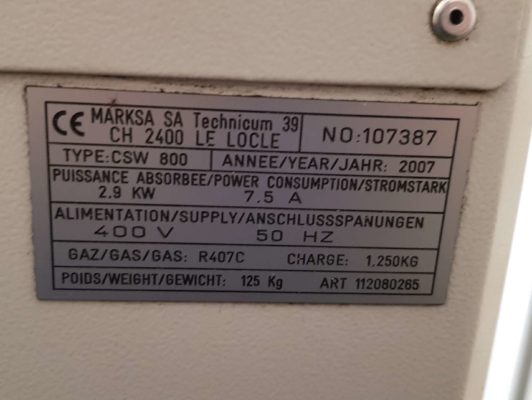

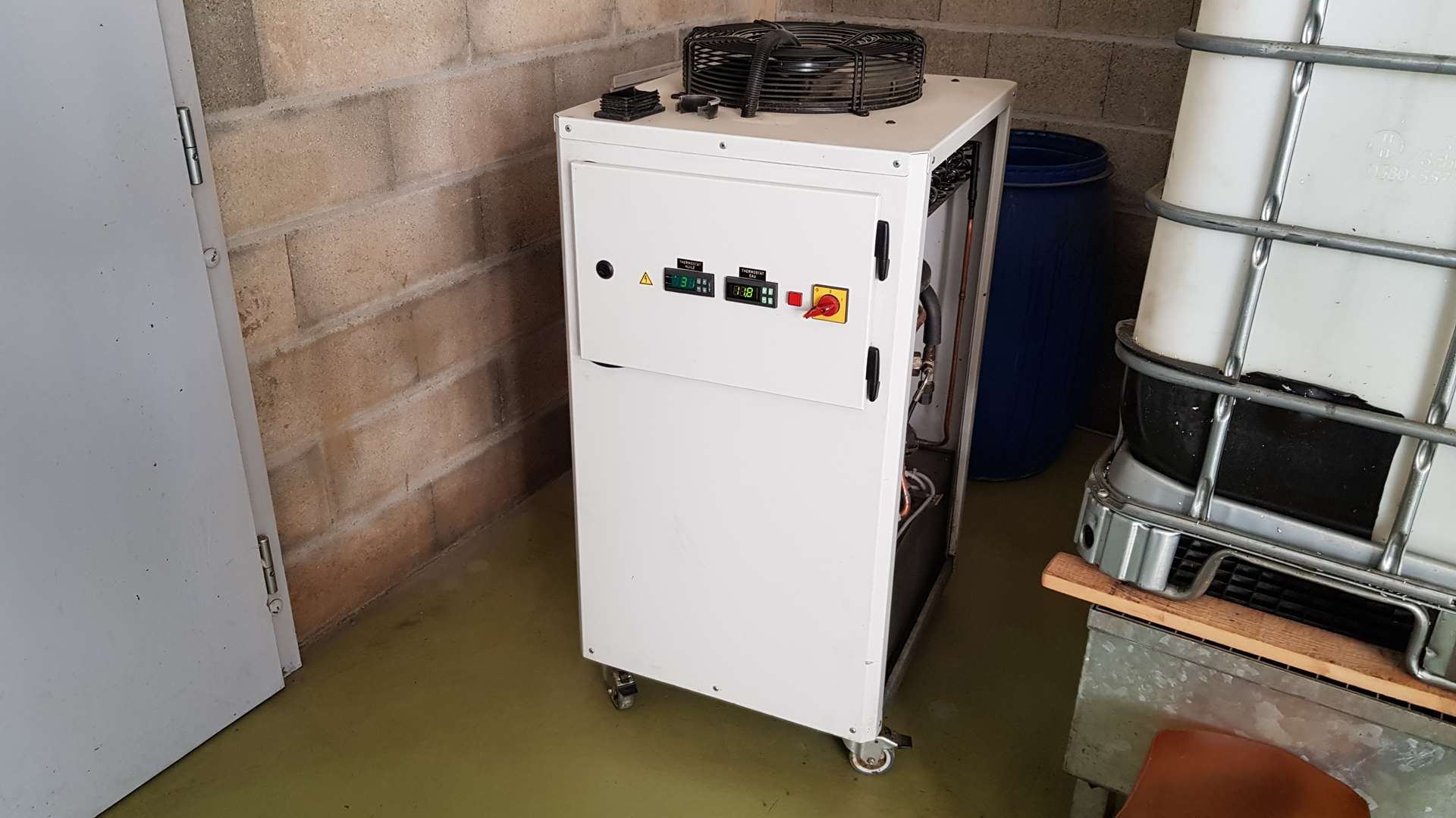

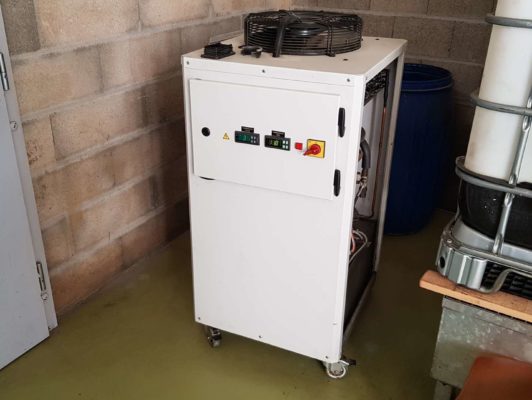

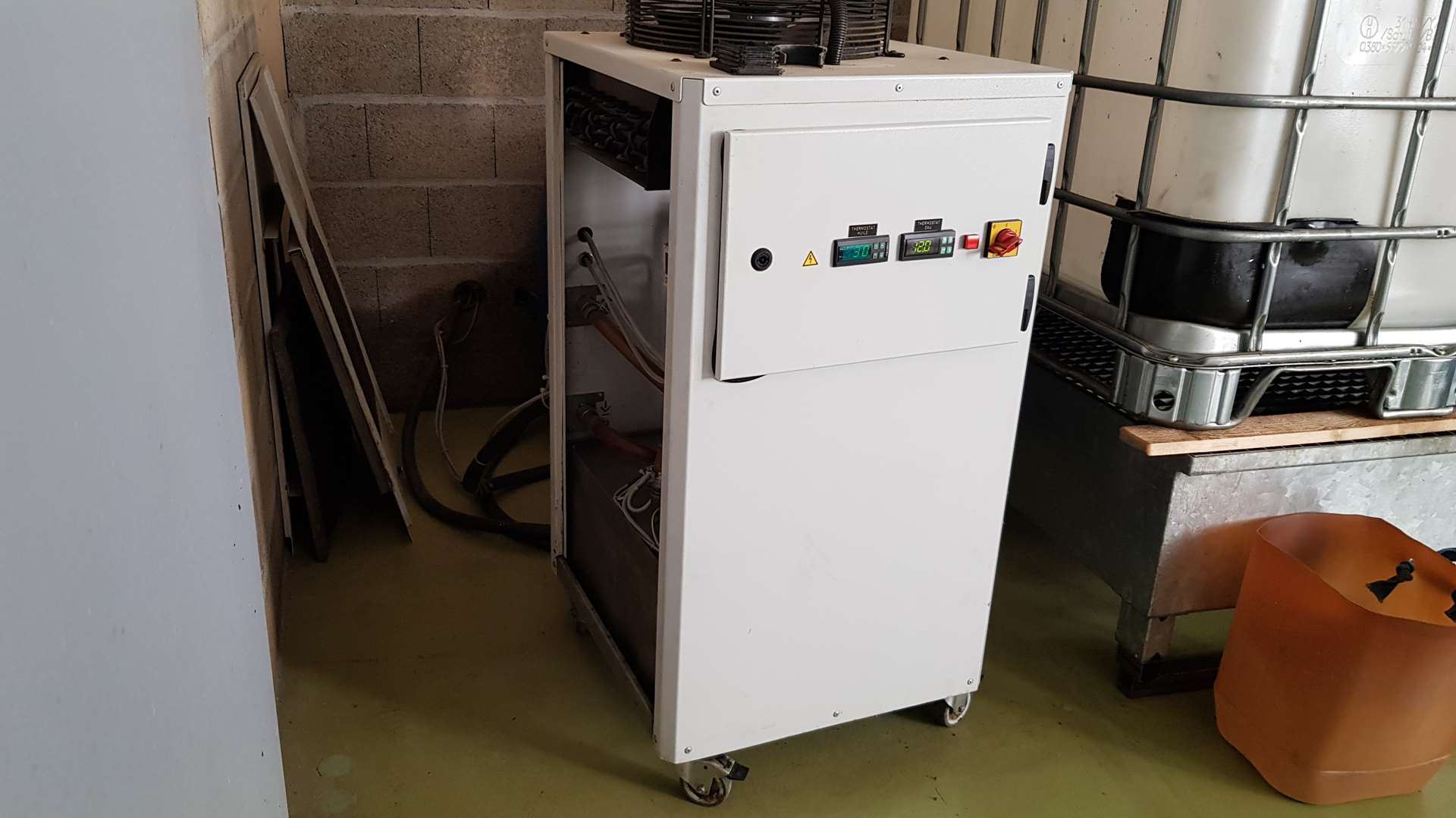

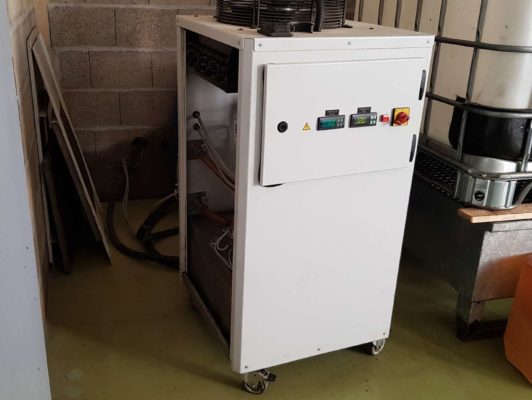

– Chiller MARKSA type CSW 800, 2.9 KW, 7.5 A de 2007
