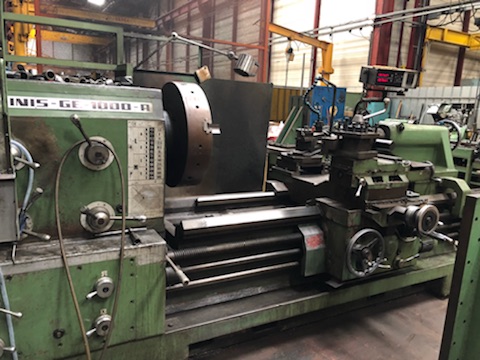

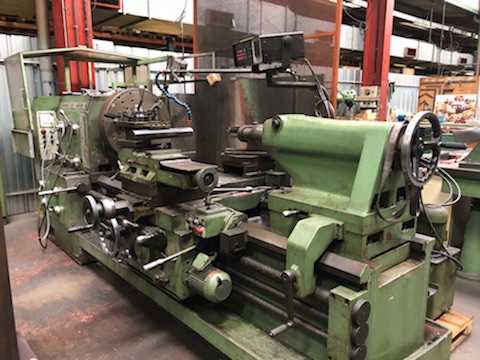

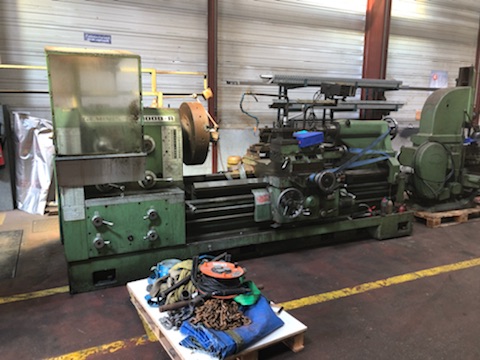

GEMINIS GE 1000A - Used machine
SOLD
| Model | GE 1000A |
| Height of centers | 480 mm |
| Distance between centers | 1500 mm |
| Maximum swing in gap | 1300 mm |
| Maximum swing over cross-slide | 650 mm |
| Maximum swing over bed | 1000 mm |
| Hole through spindle | 104 mm |
| stroke of the transversal carriage | 620 mm |
| Gap width | 450 mm |
| travel of the tailstock centre sleeve | 300 mm |
| Travel of top slide | 250 mm |
| Taper of tailstock sleeve | CM6 |
| Width of the bed | 680 mm |
| Number of spindle speeds | 24 |
| Number of longitudinal and cross feeds | 154 |
| Spindle speed | 4,5 à 900 RPM |
| Number of Metric threads | 154 |
| Metric threads | 0,4 à 600mm |
| Number of Whitworth threads | 165 |
| Whitworth threads | 40 à 3/32 |
| Number of module threads | 108 |
| Module threads | 0.1 à 150 |
| Motor (HP) | 30 HP |
| Dimensions | 4000x2000x1500 mm |
| Weight | 8000 Kg |
Longitudinal feeds: 0.04 to 60 mm/rev
Cross feeds : 0.02 to 30 mm/rev
