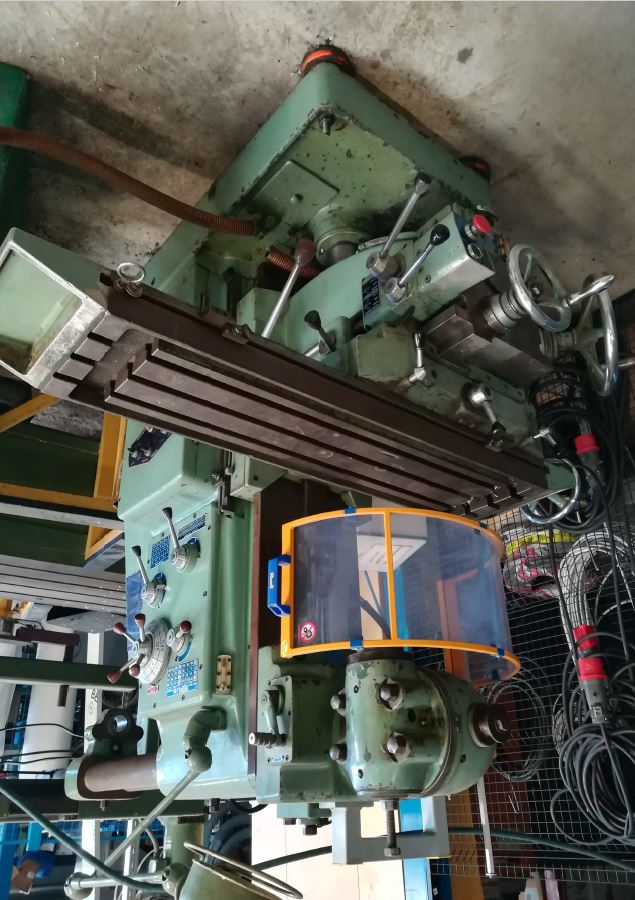

DUFOUR 130 - Used machine

Longitudinal travel 600 mm
Cross travel 250 mm
Vertical travel 420 mm
Table area 1000 x 250 mm
Number of T-slots 3
Groove maximum width 16 mm
Spindle taper SA 40
Distance from the spindle axis to the frame 273 mm
Max distance between table and spindle nose 415 mm
Number of spindle speeds 16
Variable spindle speeds 23 à 1600 RPM
Number of automatic feeds 9
Spindle motor 2.5 KW
Dimensions 1650 x 2010 x 1650 mm
