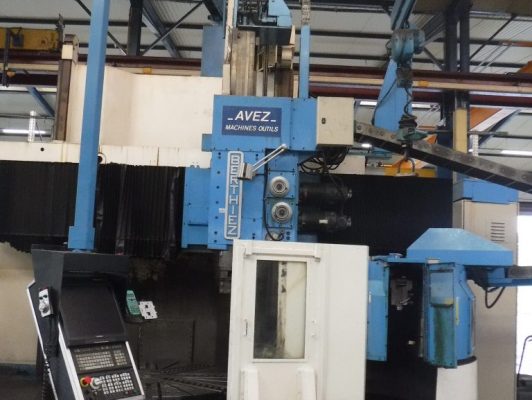

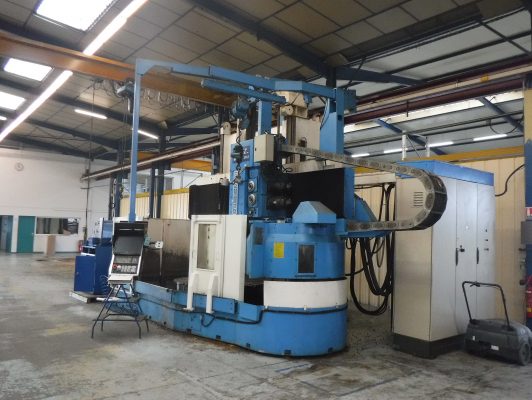

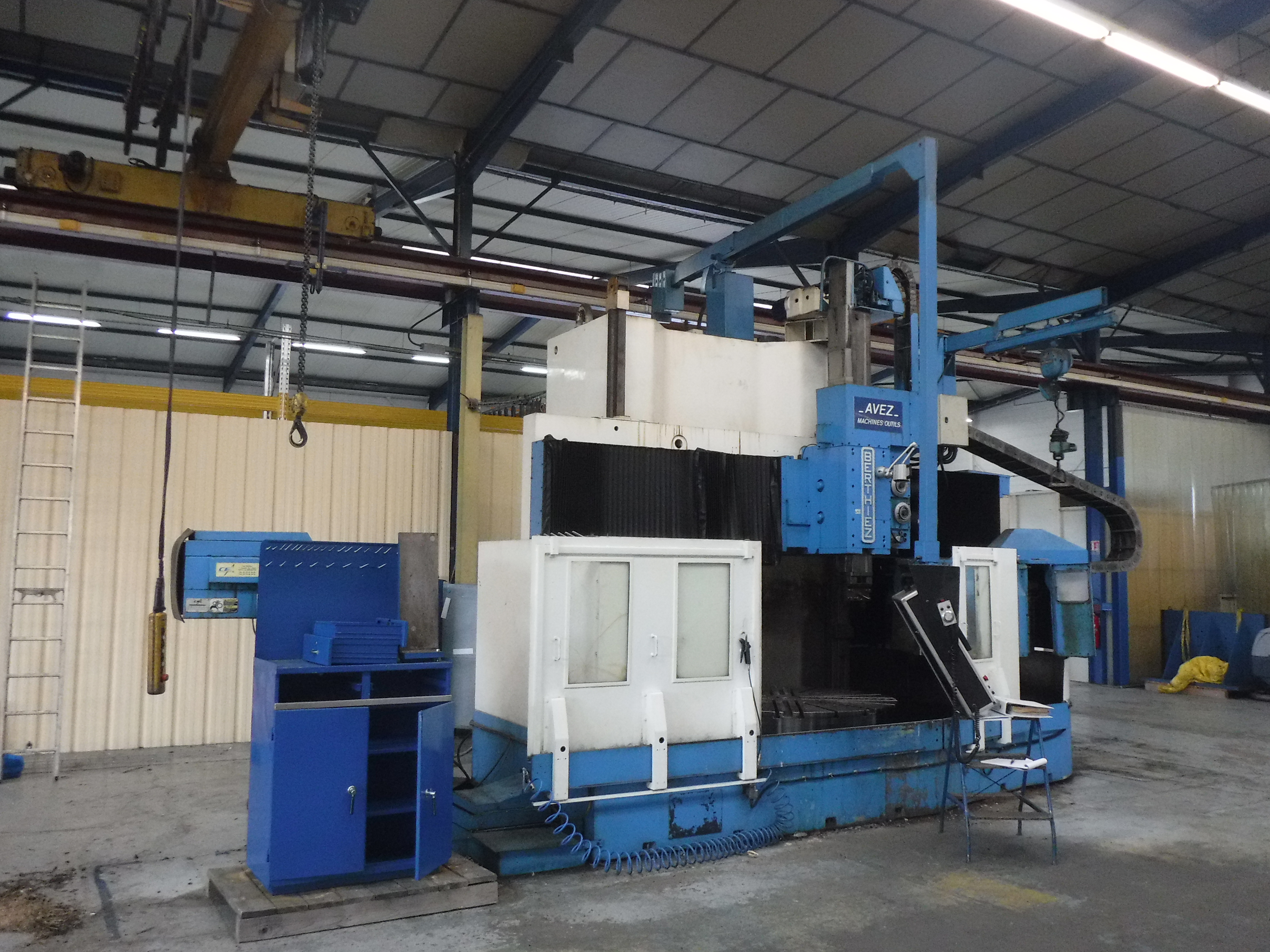

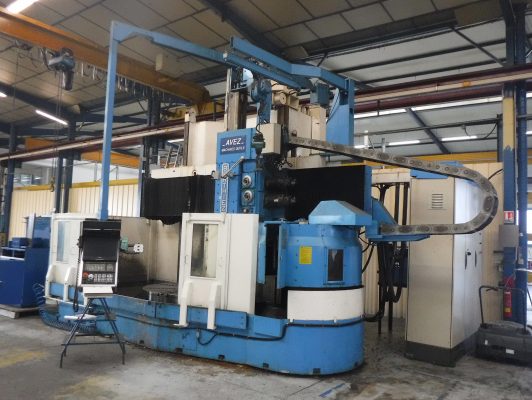

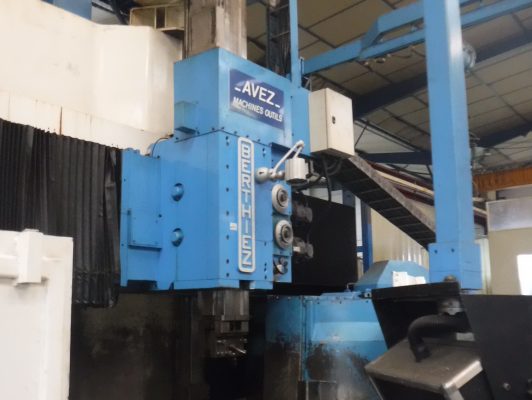

BERTHIEZ TFM 160 CNC - Used machine
SOLD
| Maximum diameter to machine | 1800 mm |

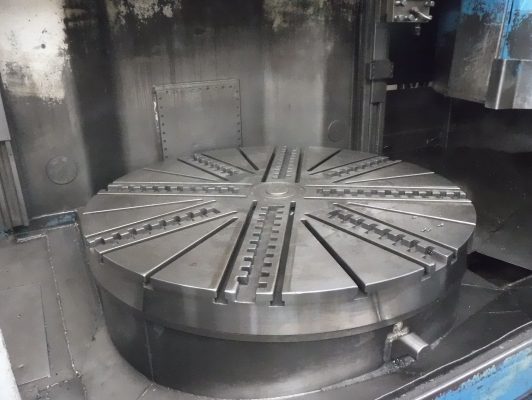

| Table diameter | 1650 mm |
| Maximum height admited | 1600 mm |
| Tool storage | 12 Outils/Tools |

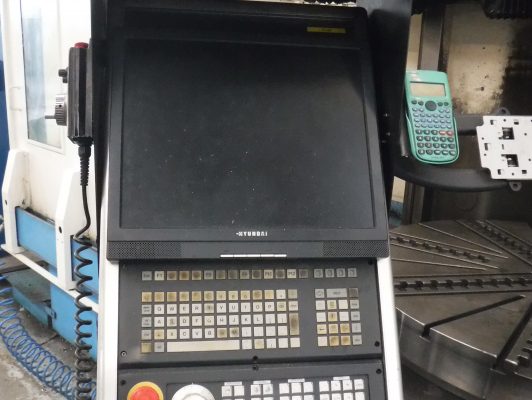

| CNC system | NUM 1060 |
| Plate speeds | 2 -> 250 RPM |
| Cross travel speed | 400 mm/mn |
| Vertical stroke of crosshead | 1300 mm |
| Travel of rail head (horizontal) | 1300 mm |
| Distance from the spindle axis to the frame | 1800 mm |
| Height from the table to the floor | 696 mm |
| Maximum weight admitted (kg) | 15000 kgs |
| Dimensions | 7500X5480X5100 mm |
