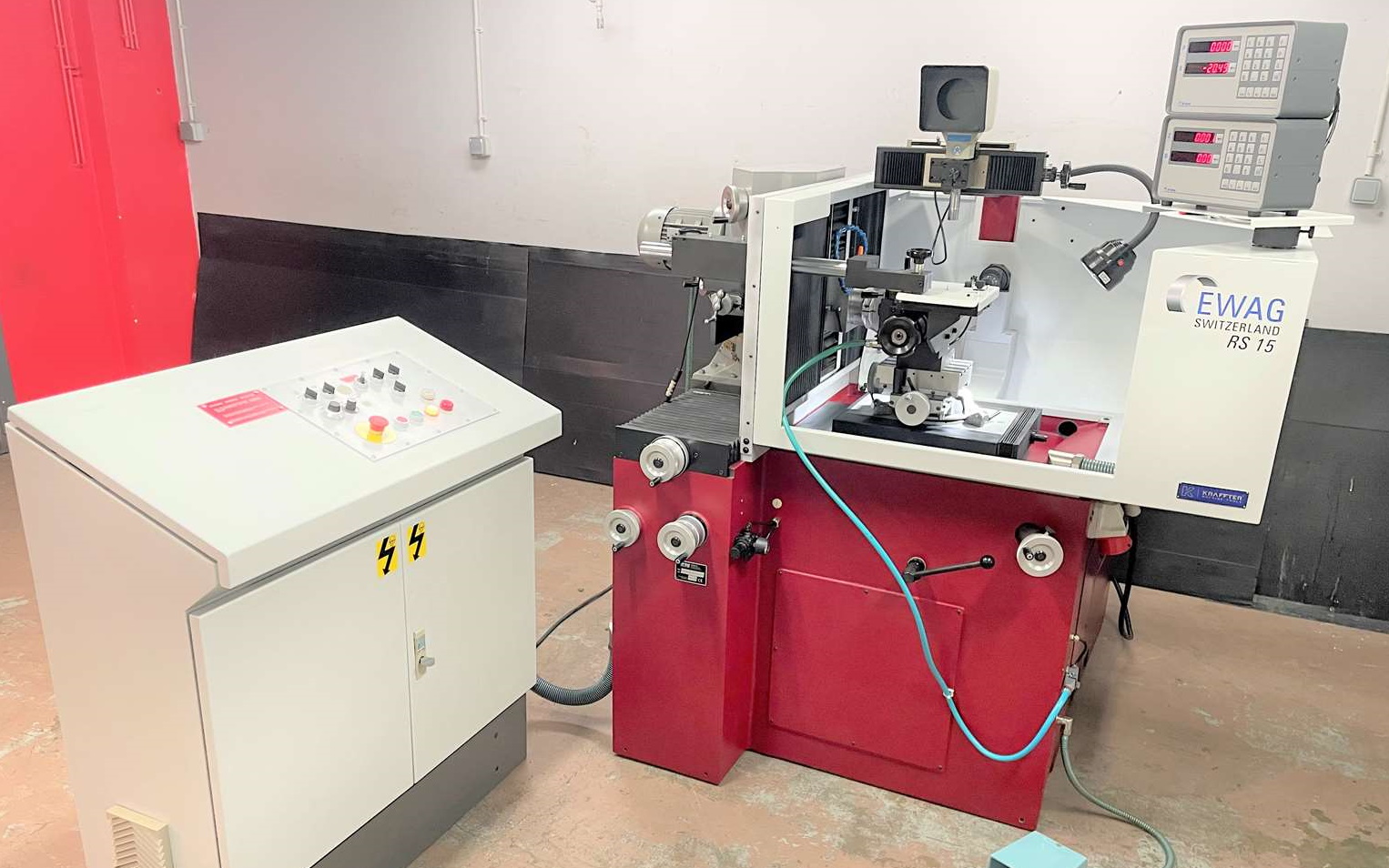

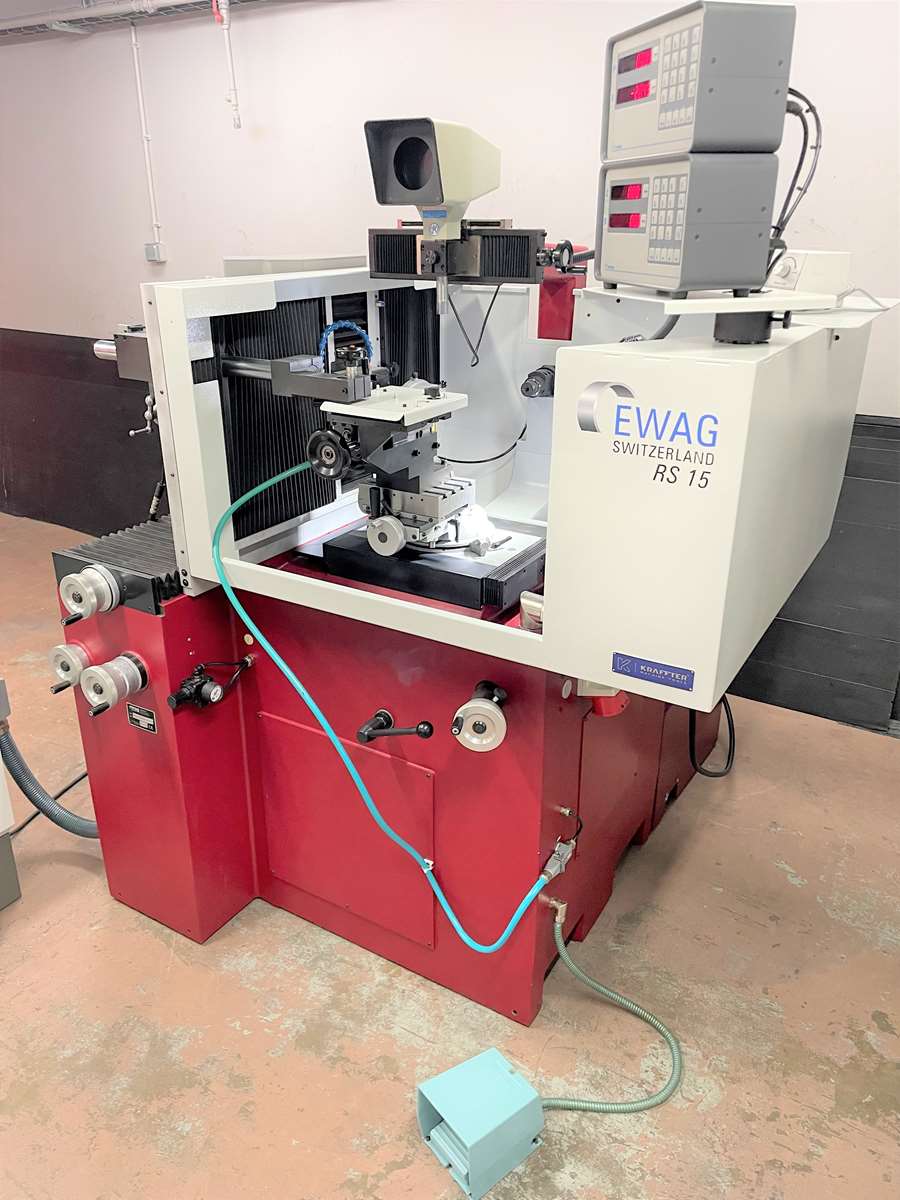

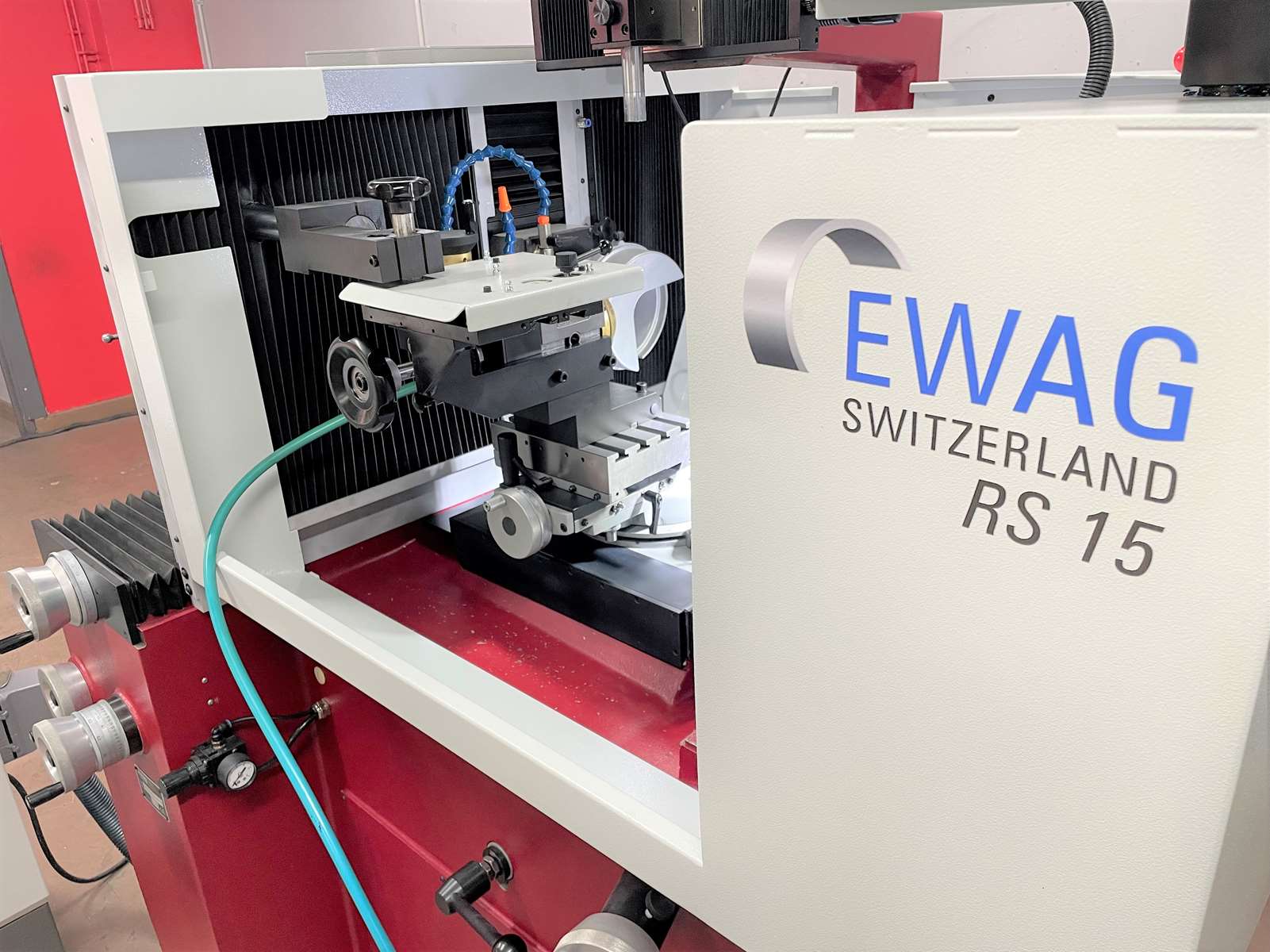

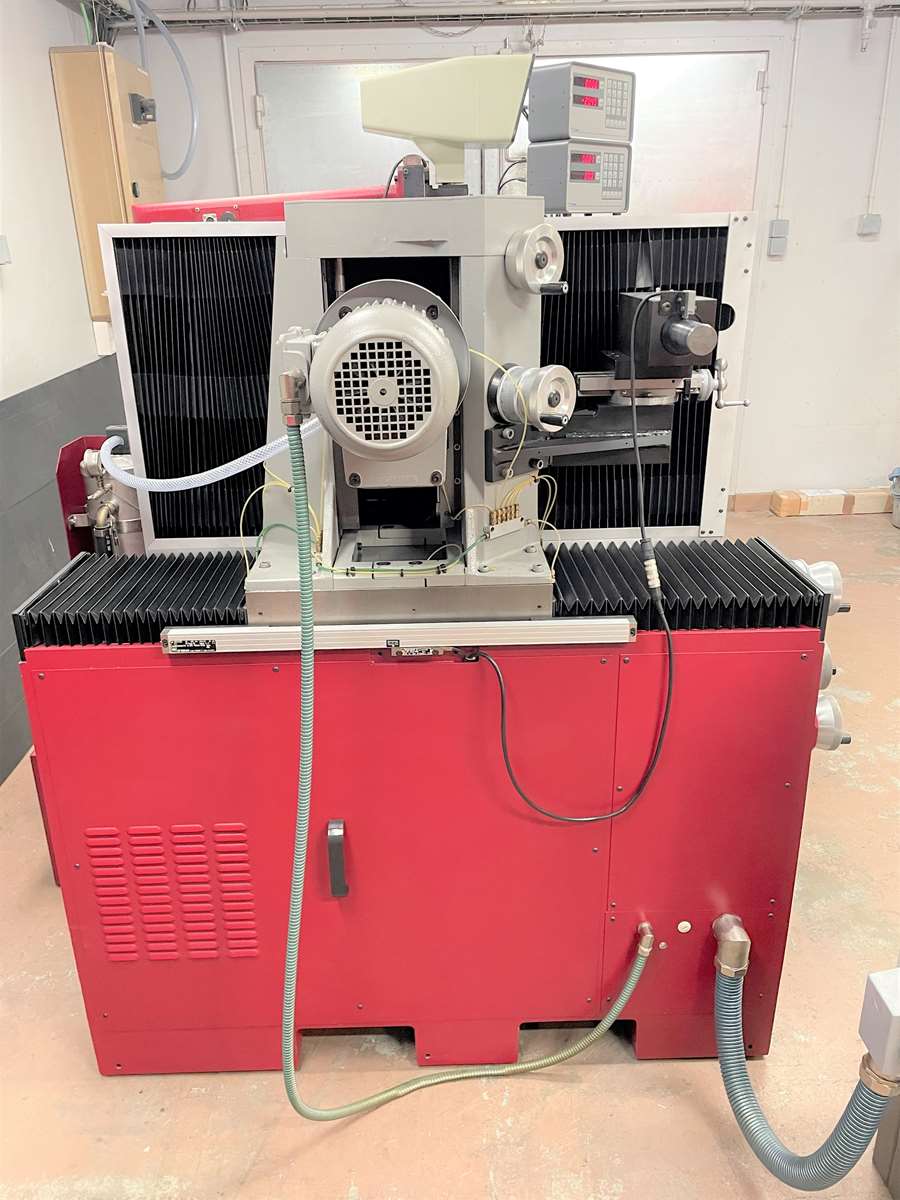

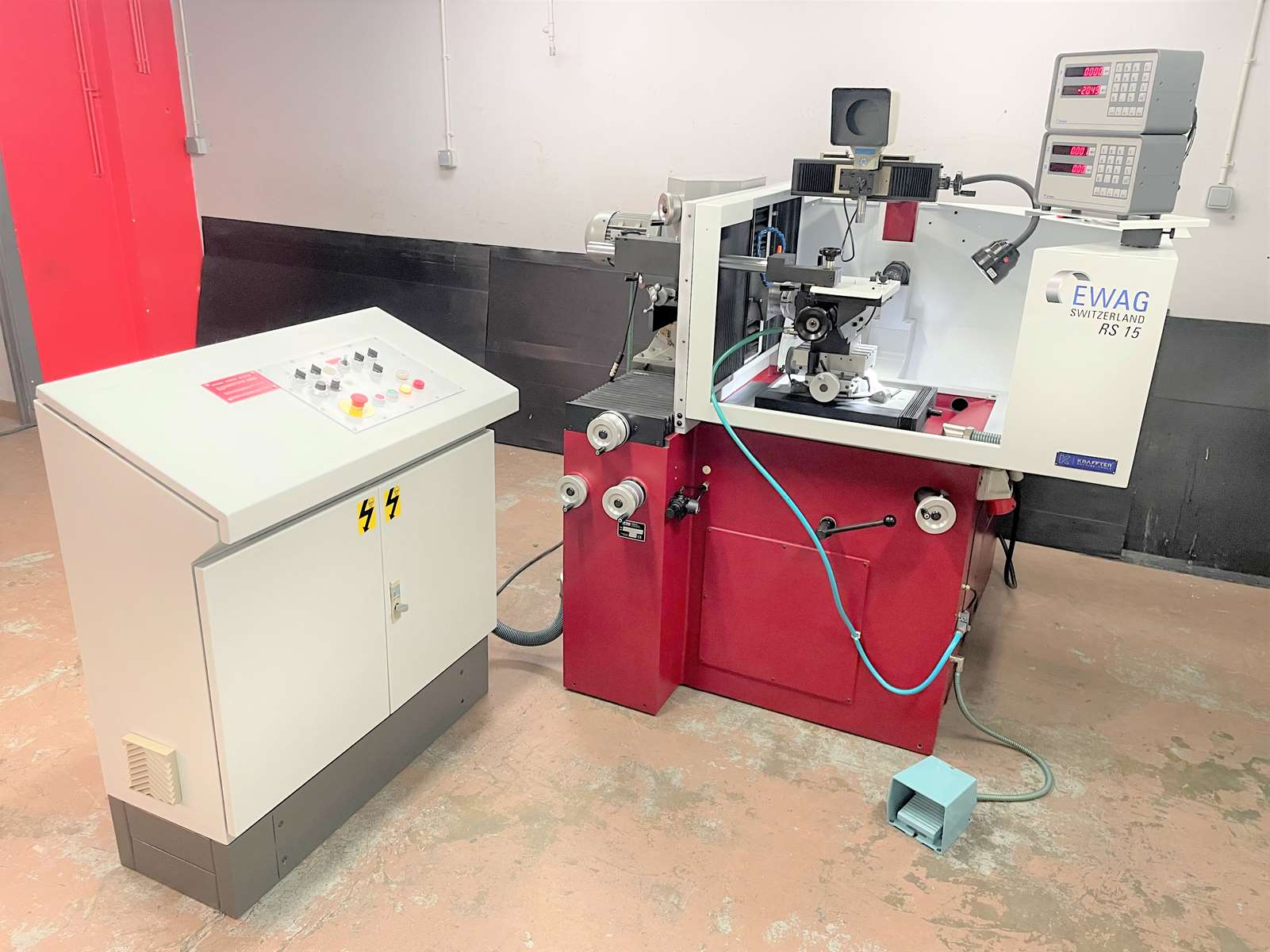

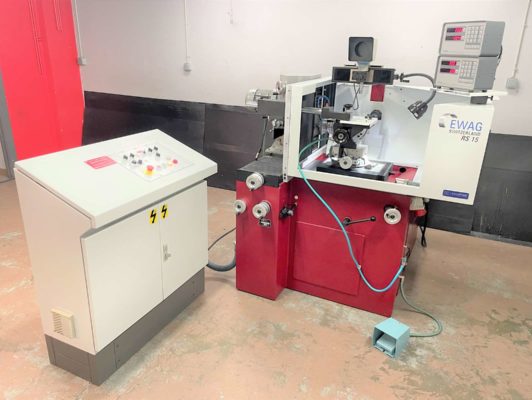

EWAG RS-15 - Gebrauchte Maschine
| Jahr | 2000 |
| Spindelleistung | 2.2 KW |
| Spindelgeschwindigkeit | 1000 - 8000 tr/min |
| X-Achse Laufweg | 490 mm |
| Y-Achse Laufweg | 130 mm |
| Z-Achse Laufweg | 115 mm |
| Späneförderer | 260 |
| Konus der Werkstückspindel | HSK 63 |
| Stromversorgung | 3 x 400 V |
| Abmessungen | 1700x1750x1840 mm |
| Gewicht | 1850 Kg |
Equipment:

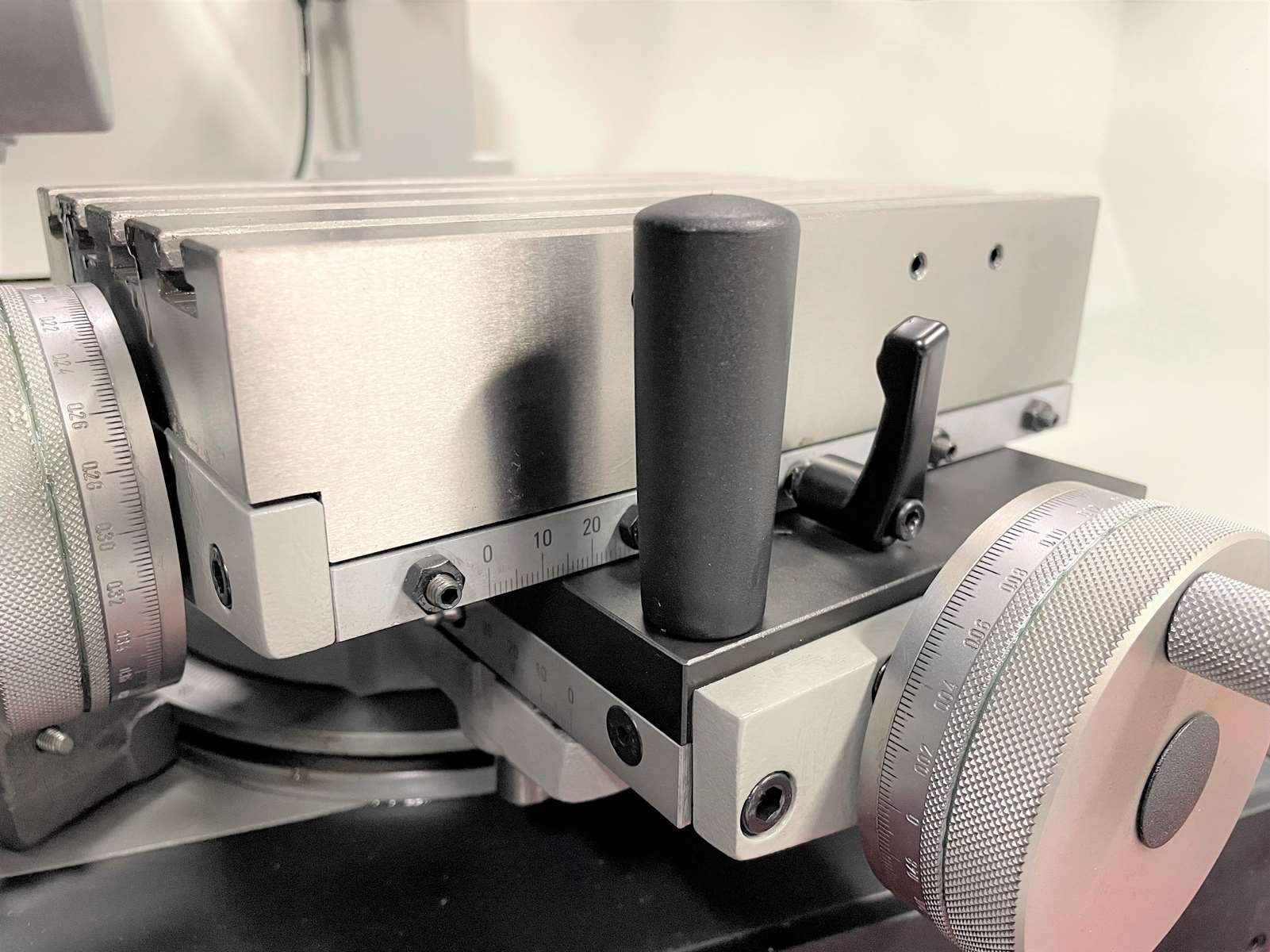

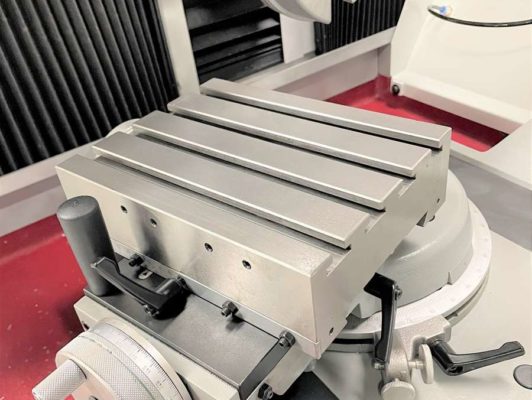

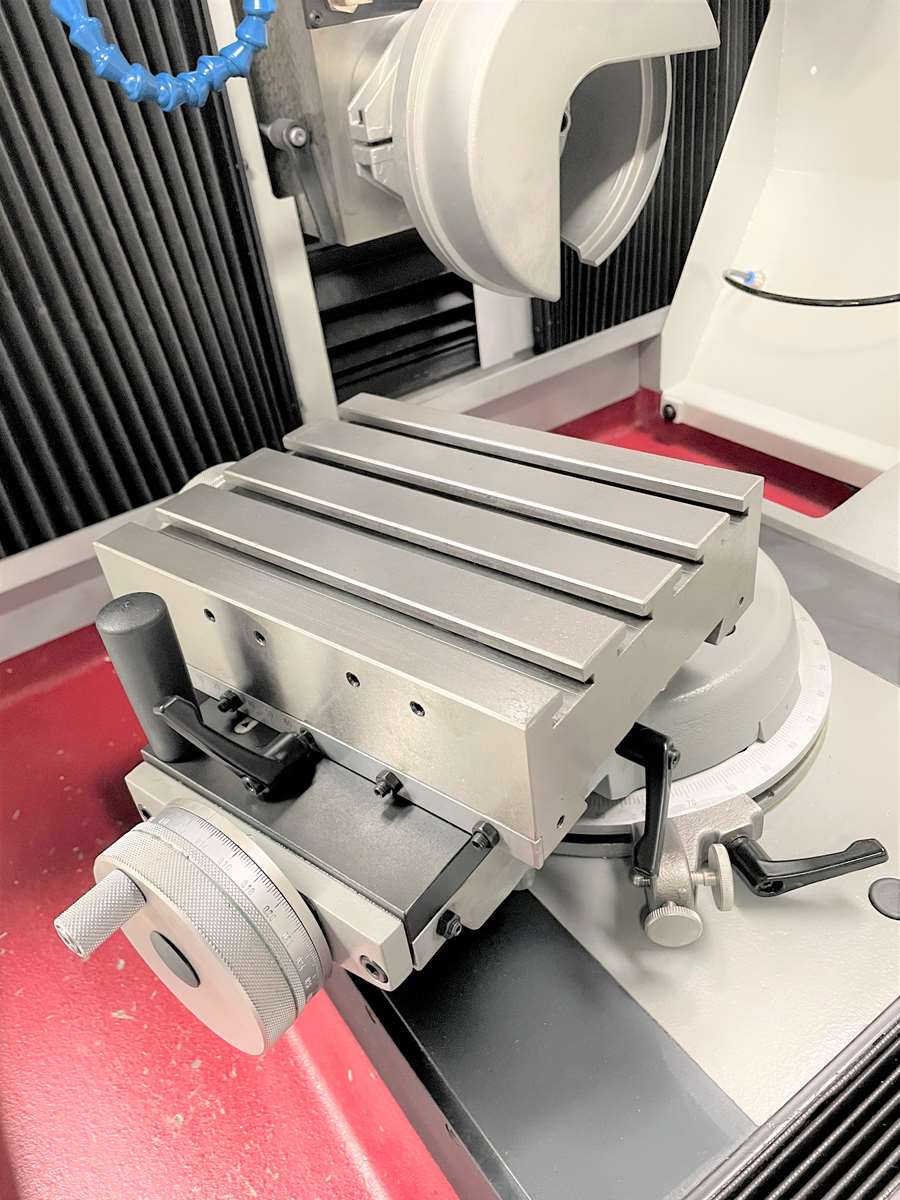

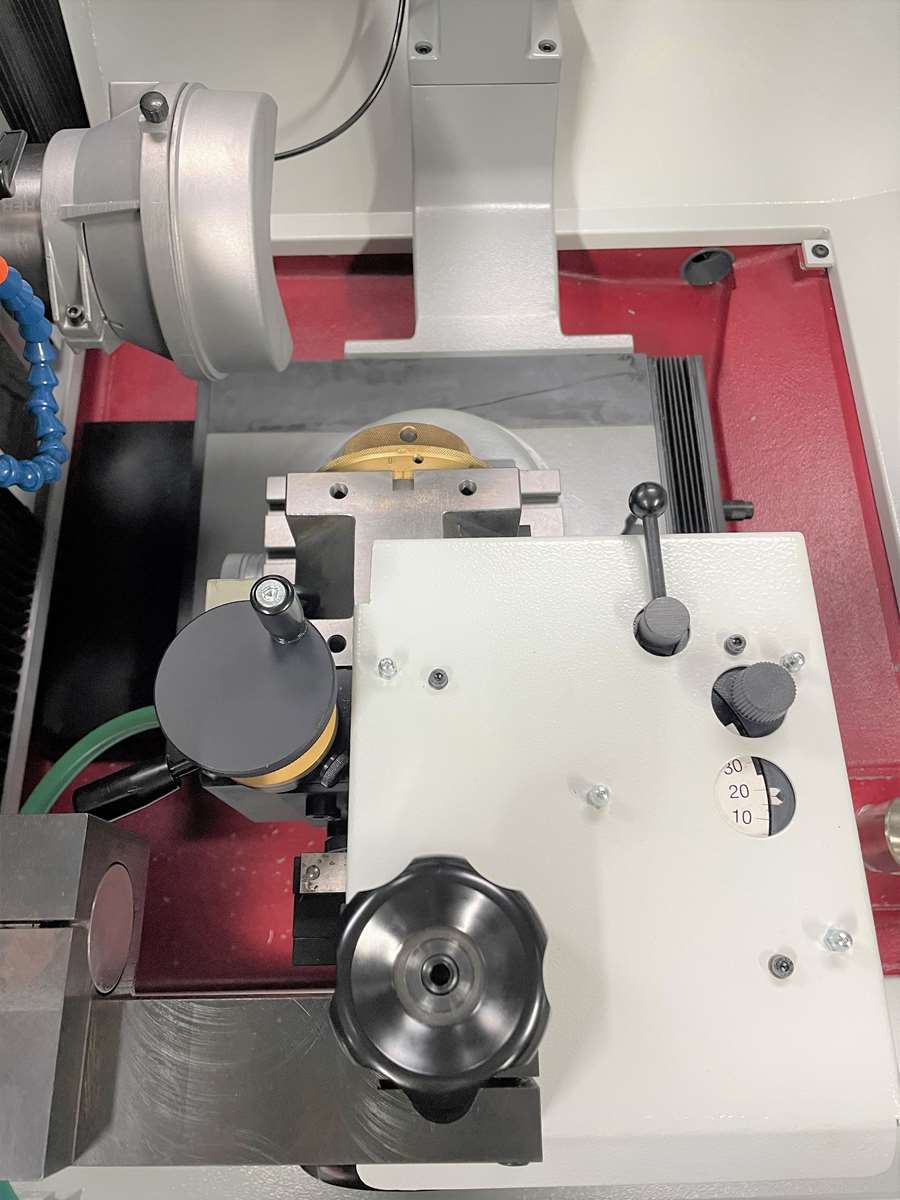

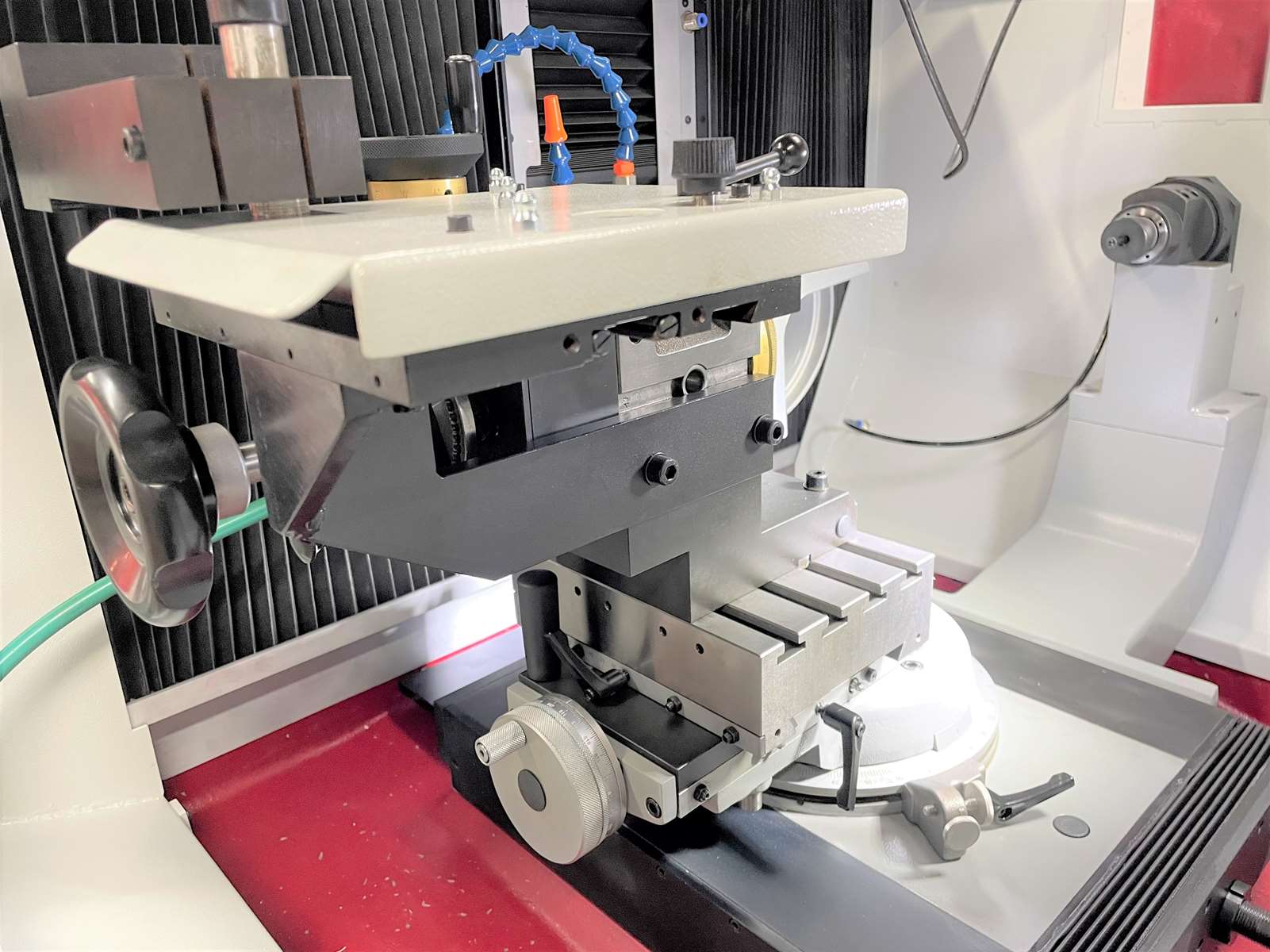

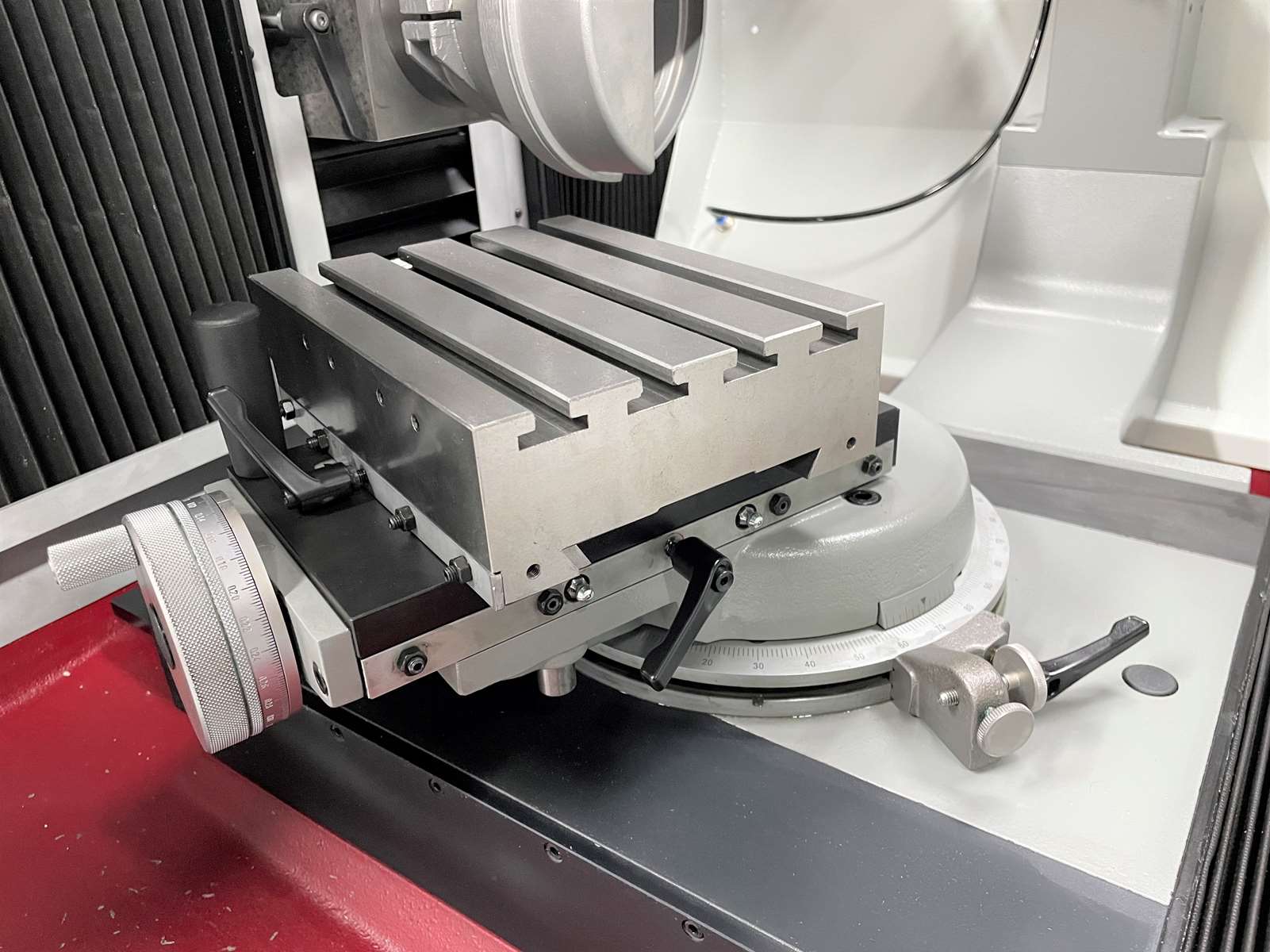

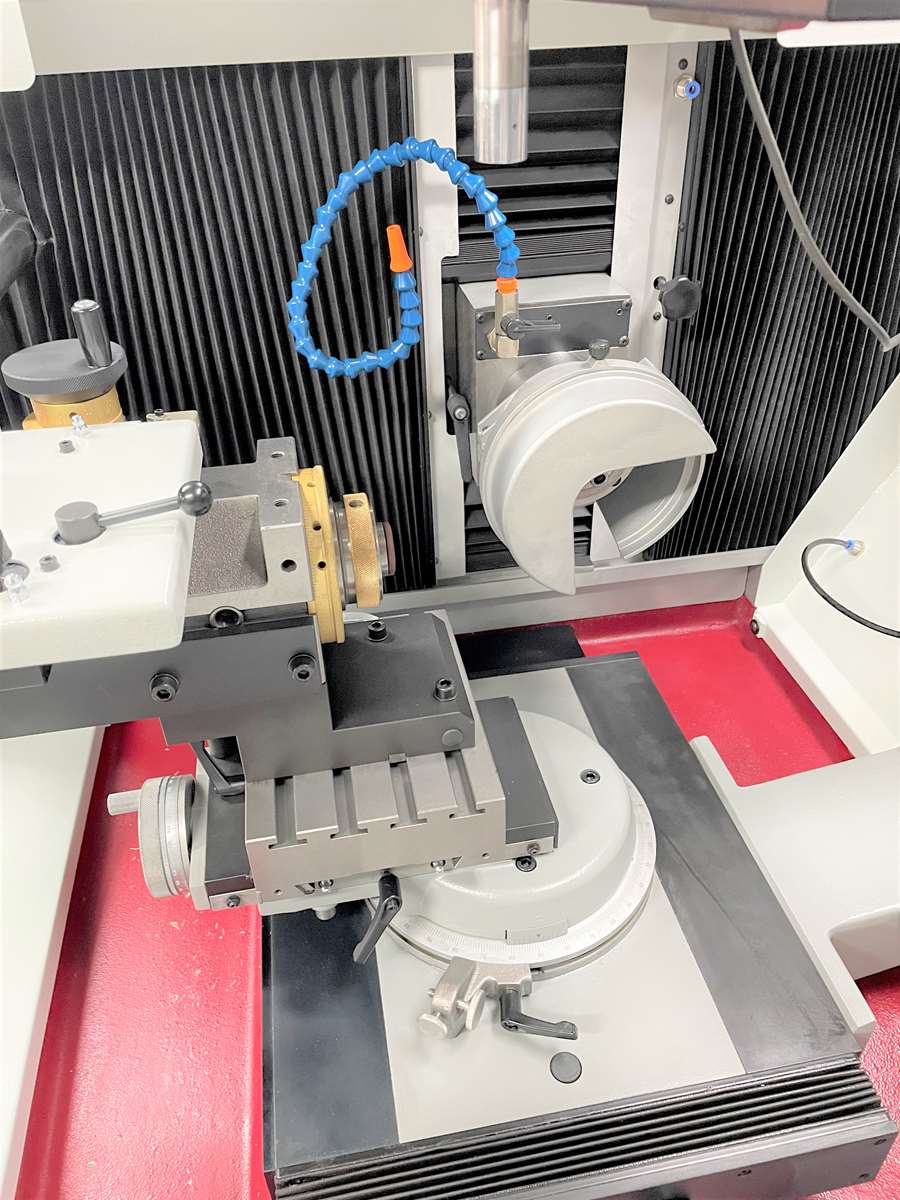

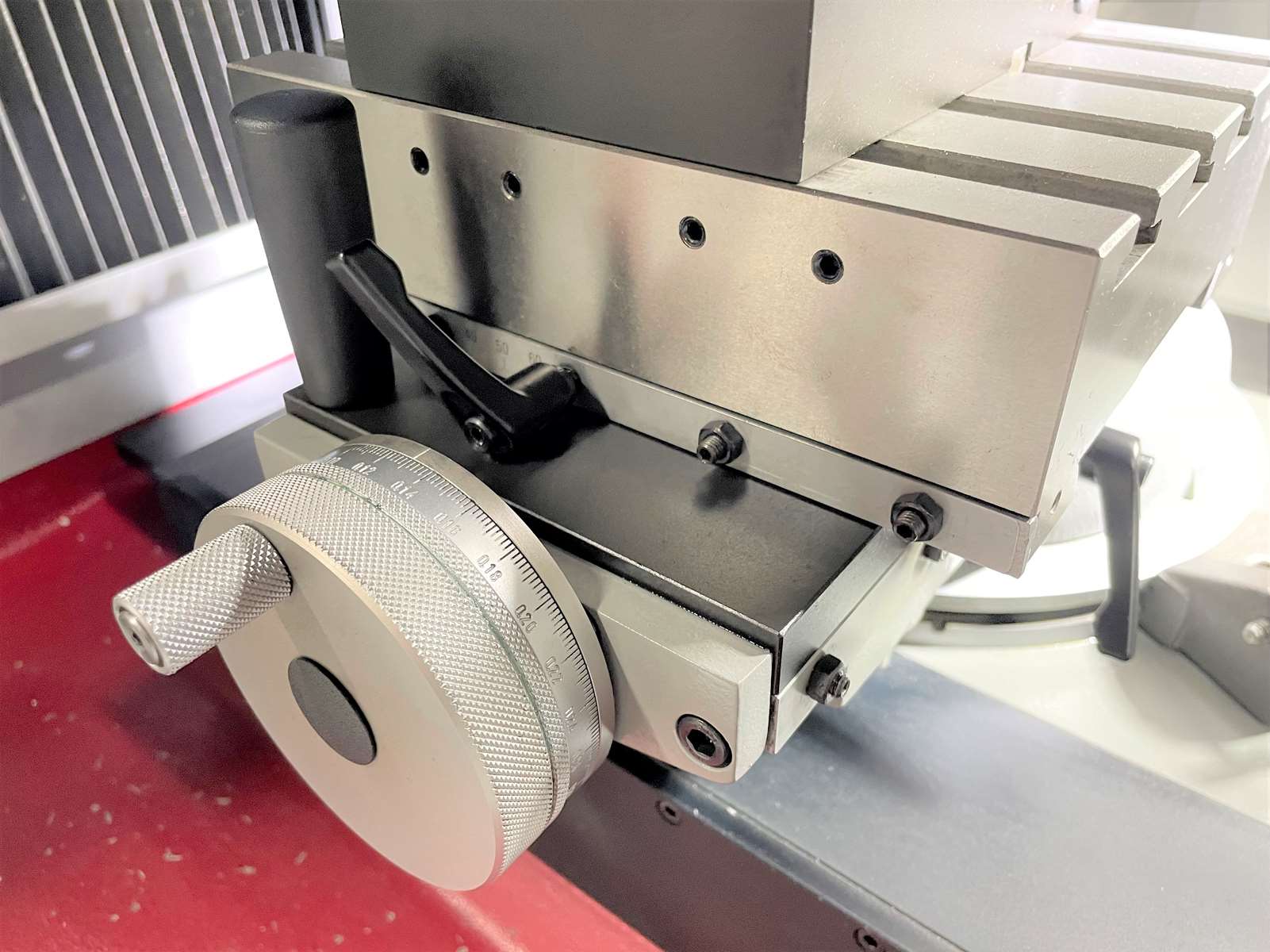

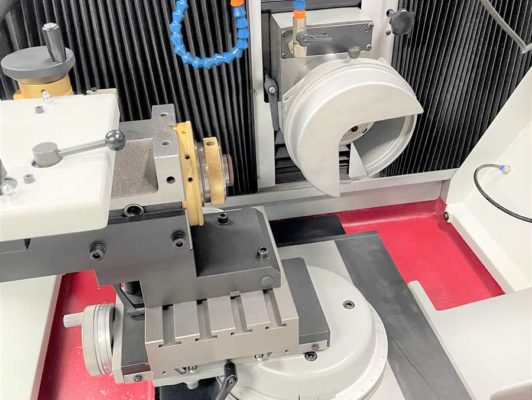

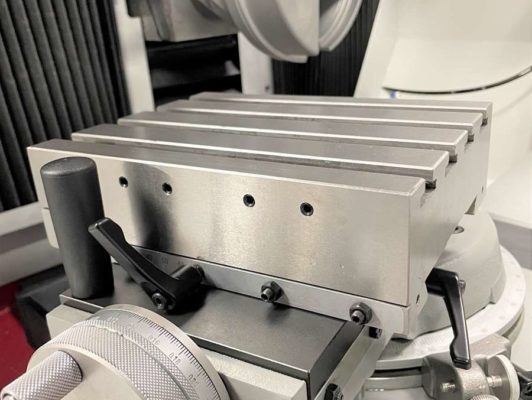

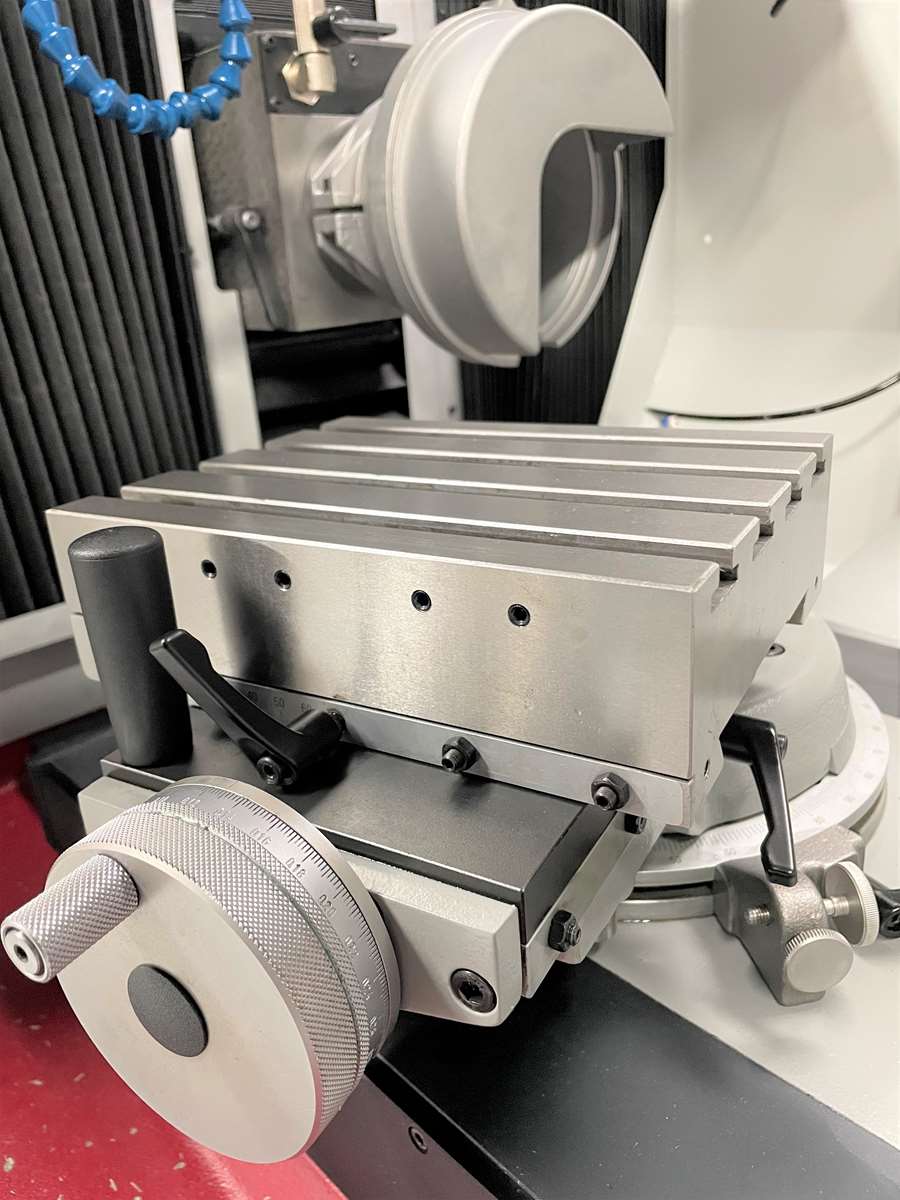

Cross table KS15/60-002 – ref EWAG : 115-2-30692

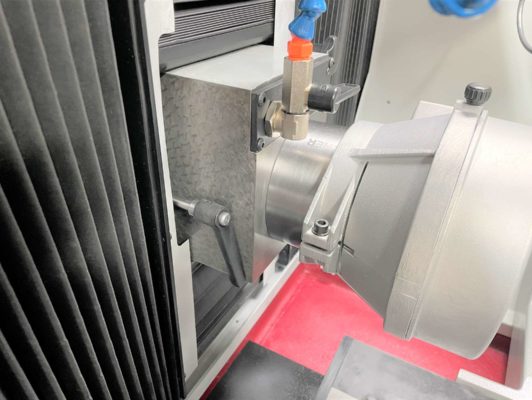

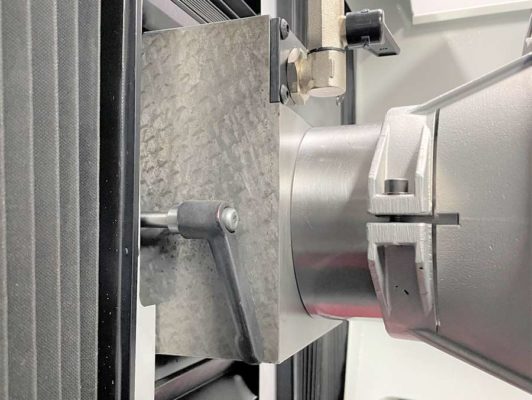

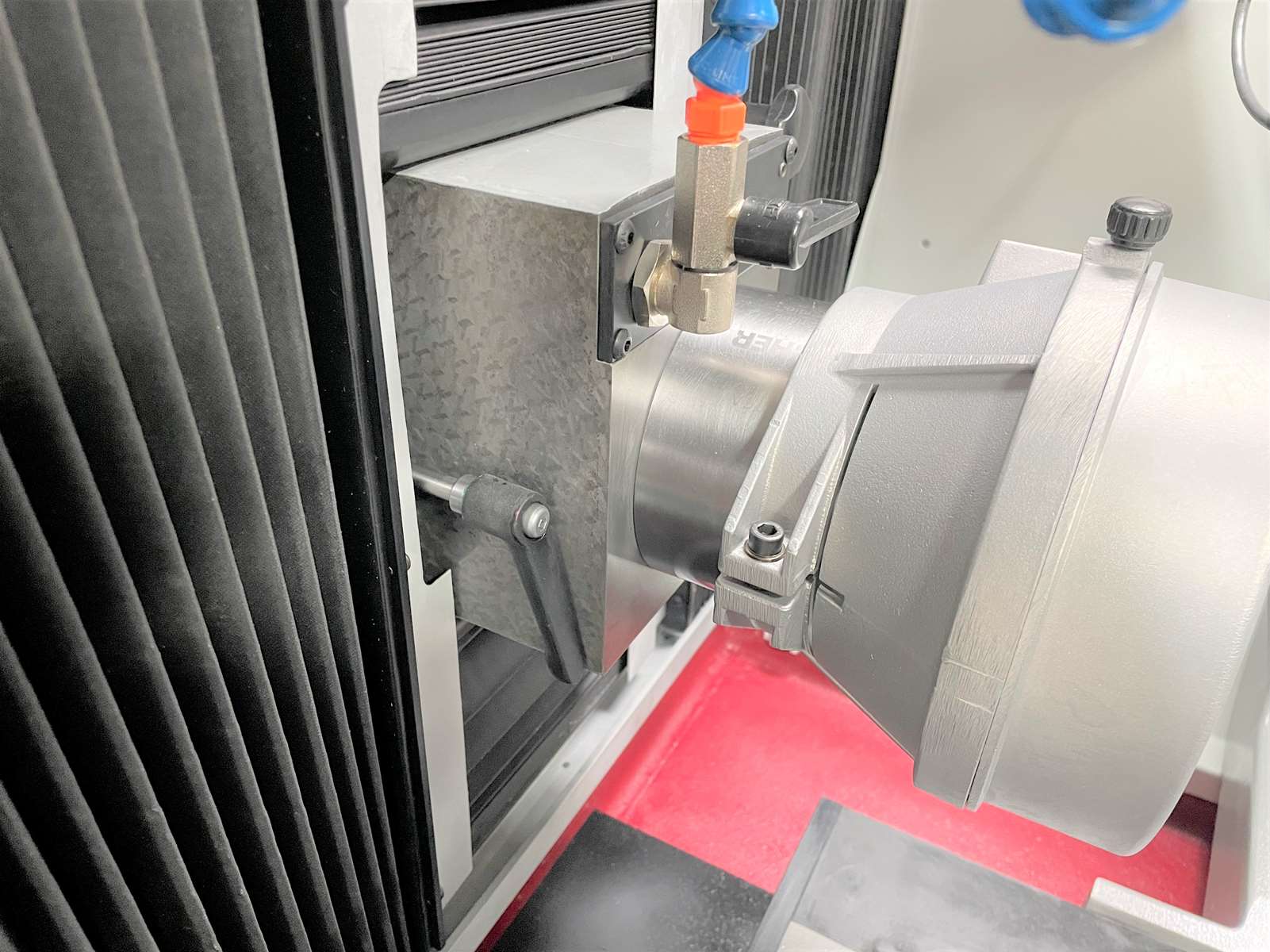

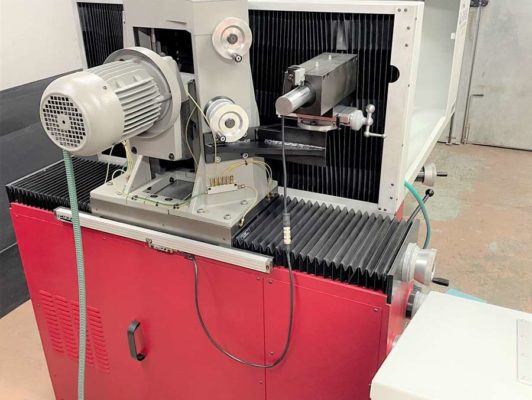

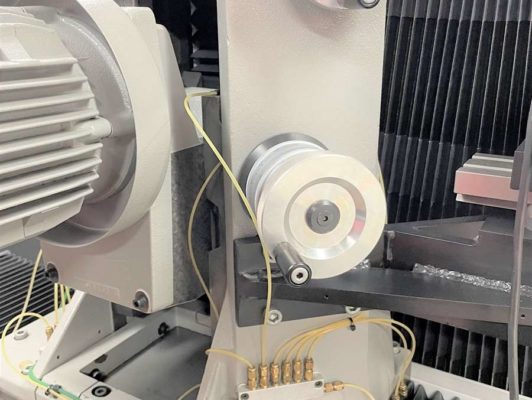

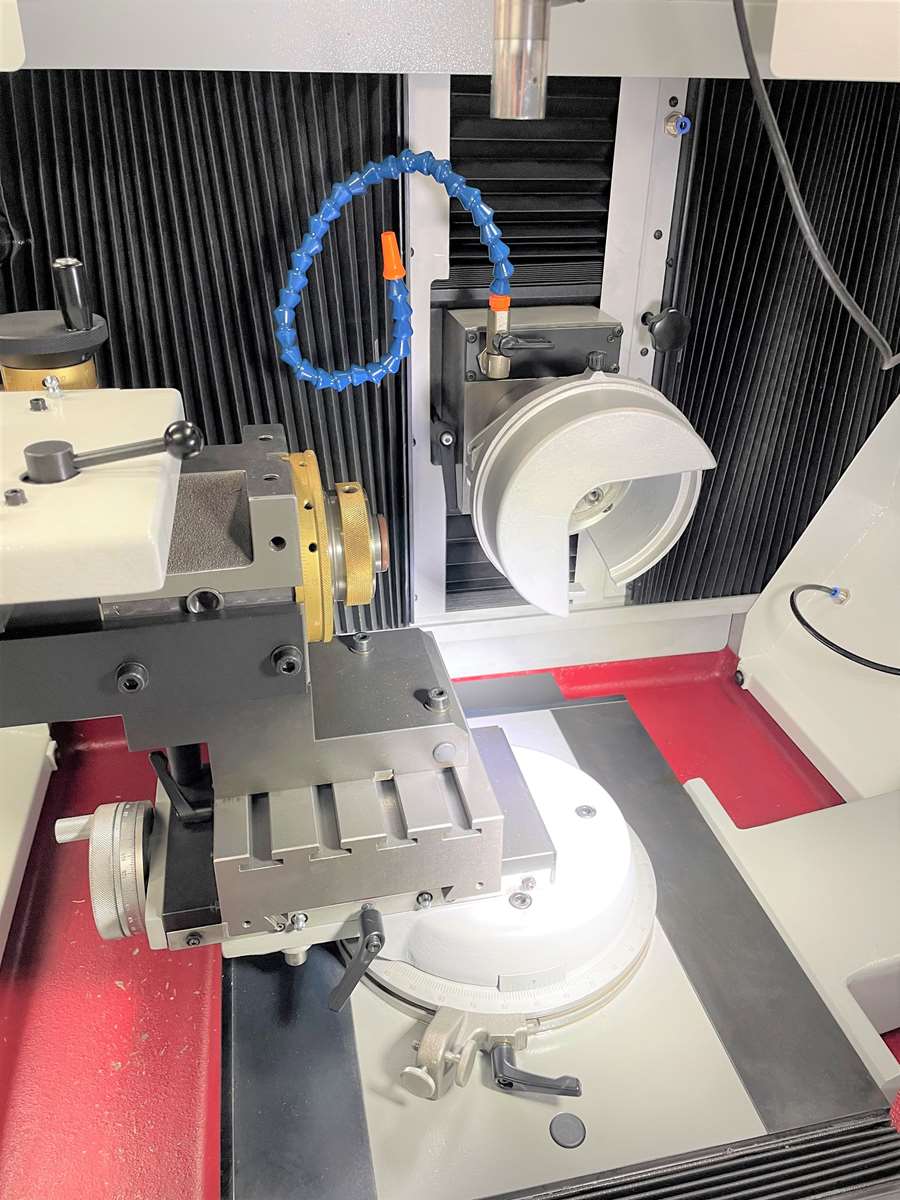

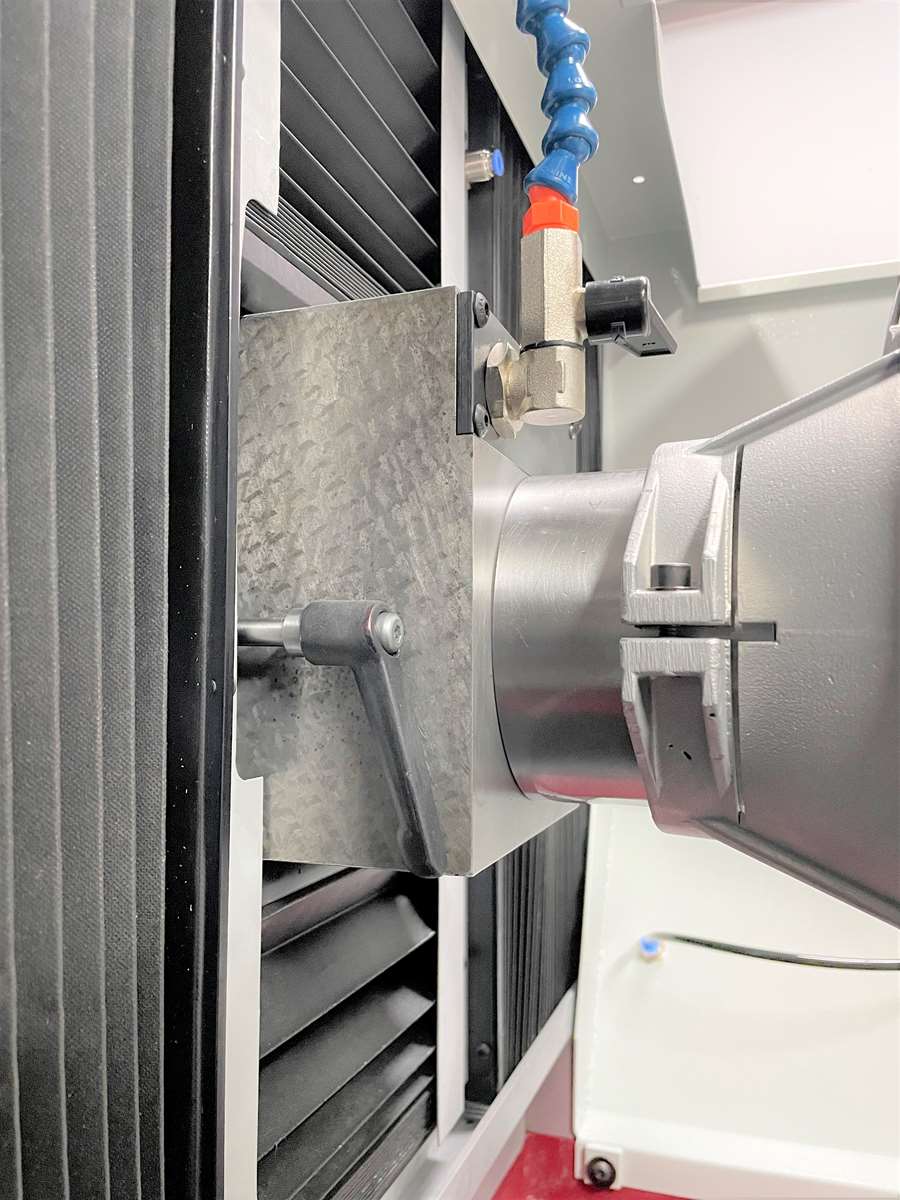

Grinding spindle with variable speed – ref EWAG : 115-2-29075
Stepless adjustable oscillation device OR15 – ref EWAG : 115-2-28129
Grinding pressure regulator AV15 (contact pressure : 0-400 N) – ref EWAG : 115-2-28150

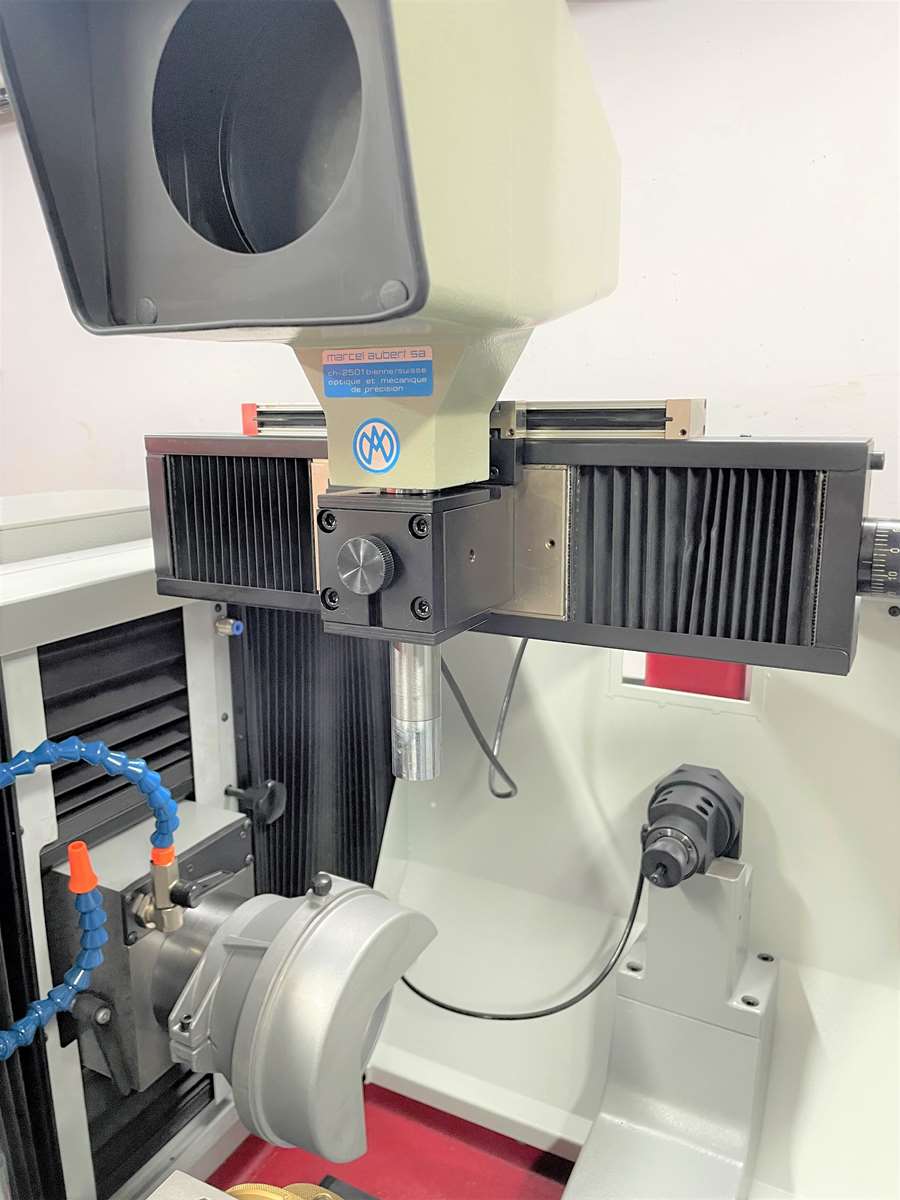

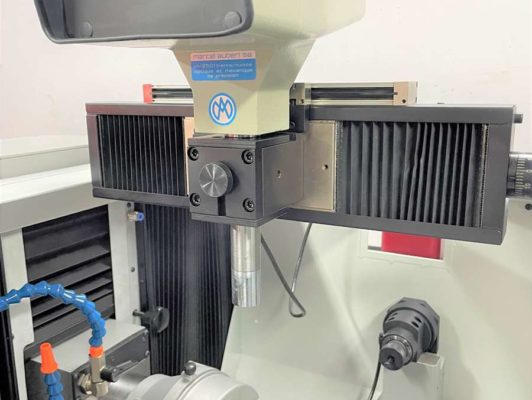

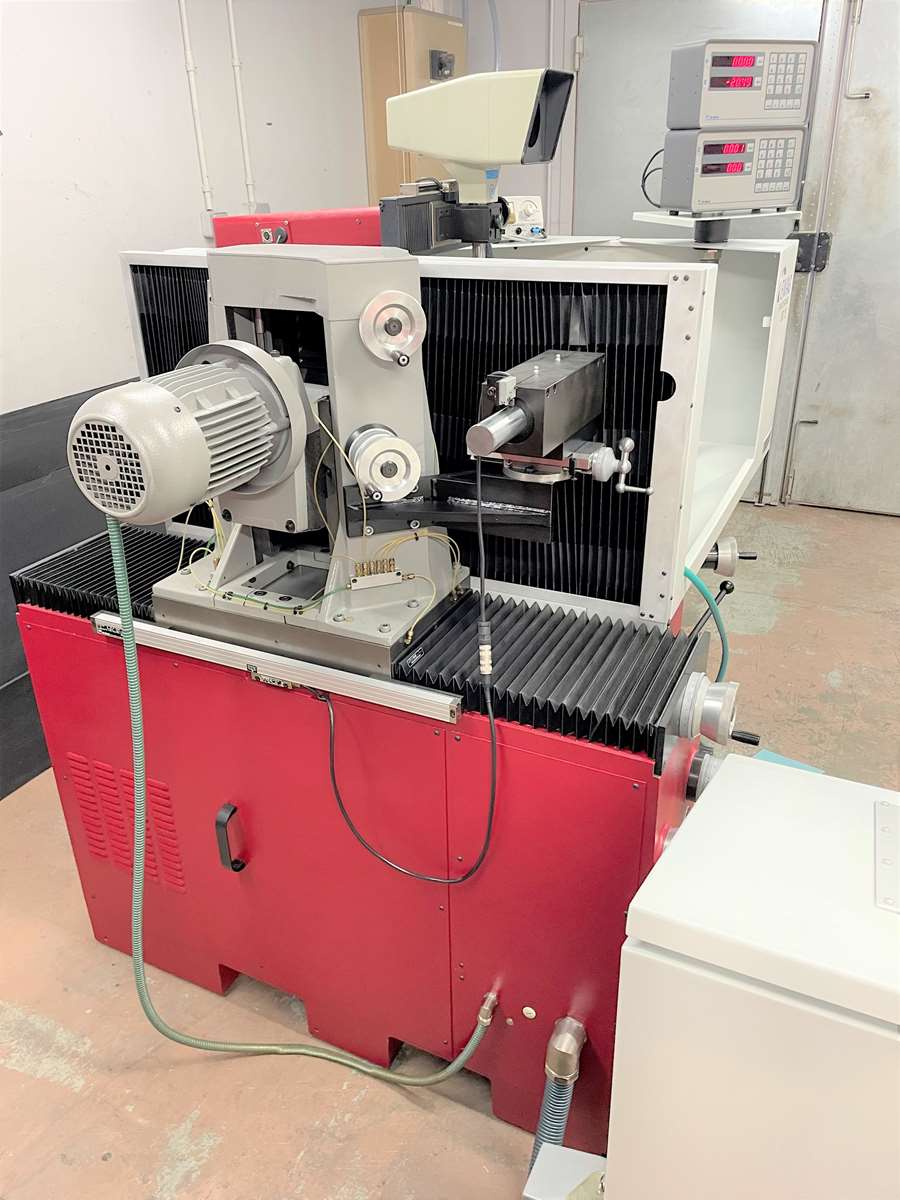

Projector assembly metric PRO15M – ref EWAG : 115-2-28138

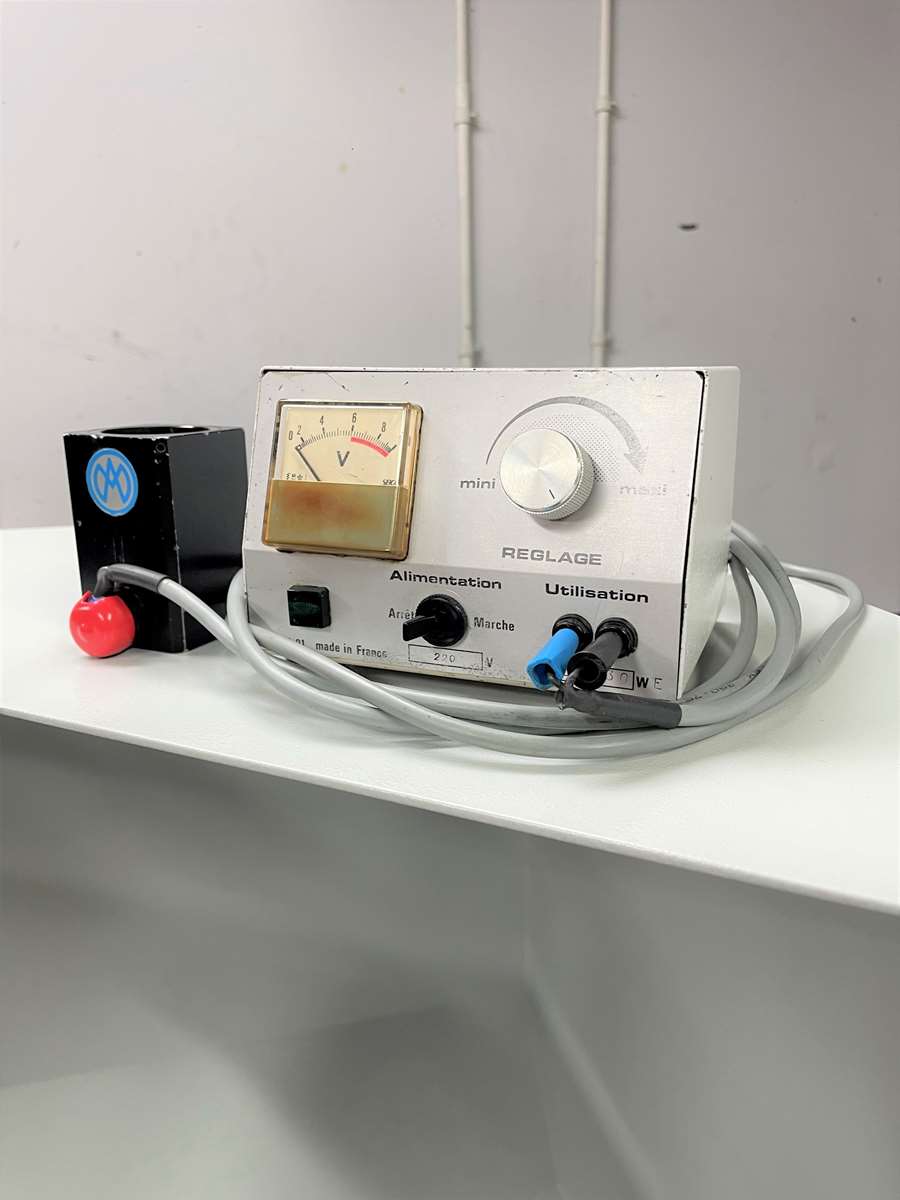

Projector with screen Ø150 [mm] MARCEL AUBERT
Pneumatical clamping for B axis (by foot pedal) : 40 [Nm]

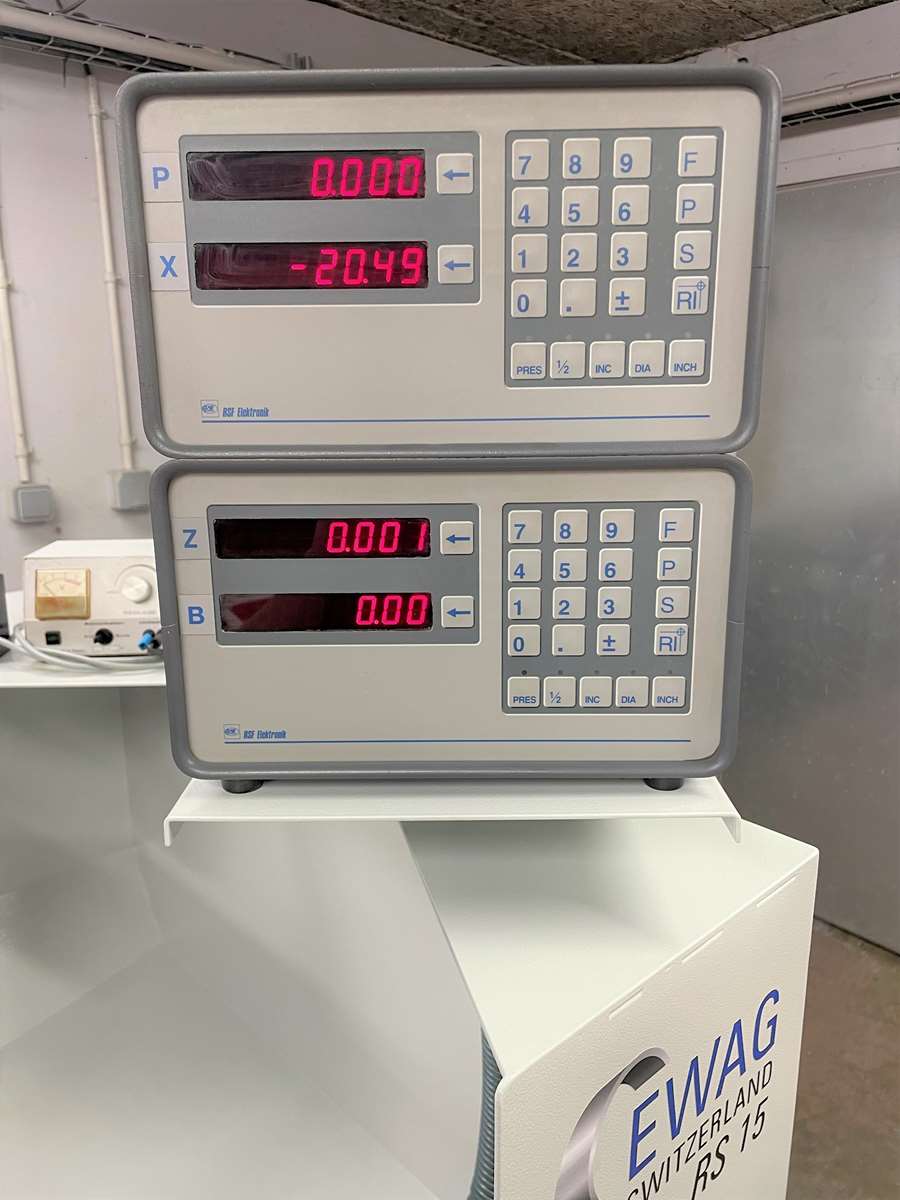

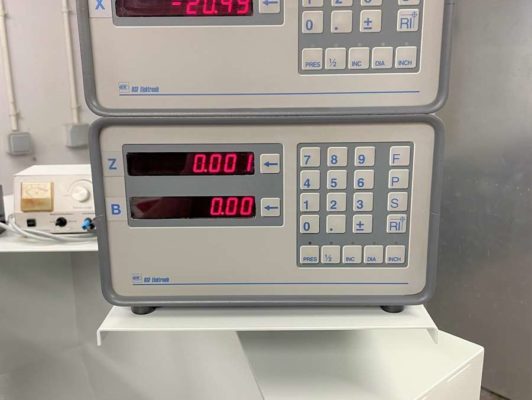

4 axes digital display RSF ELEKTRONIC DIG 15-4 – ref EWAG : 115-2-32146
P axis : 0.001 [mm]
X axis : 0.01 [mm]
Z axis : 0.001 [mm]
B axis : 0.01°

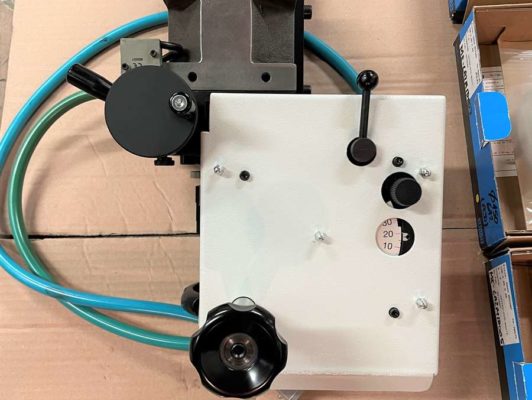

Dressing attachment AD15 – ref EWAG : 115-2-31107

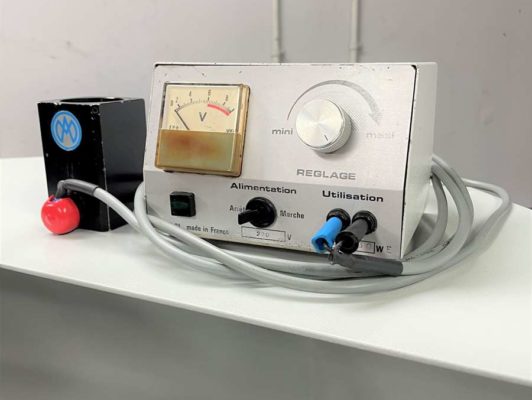

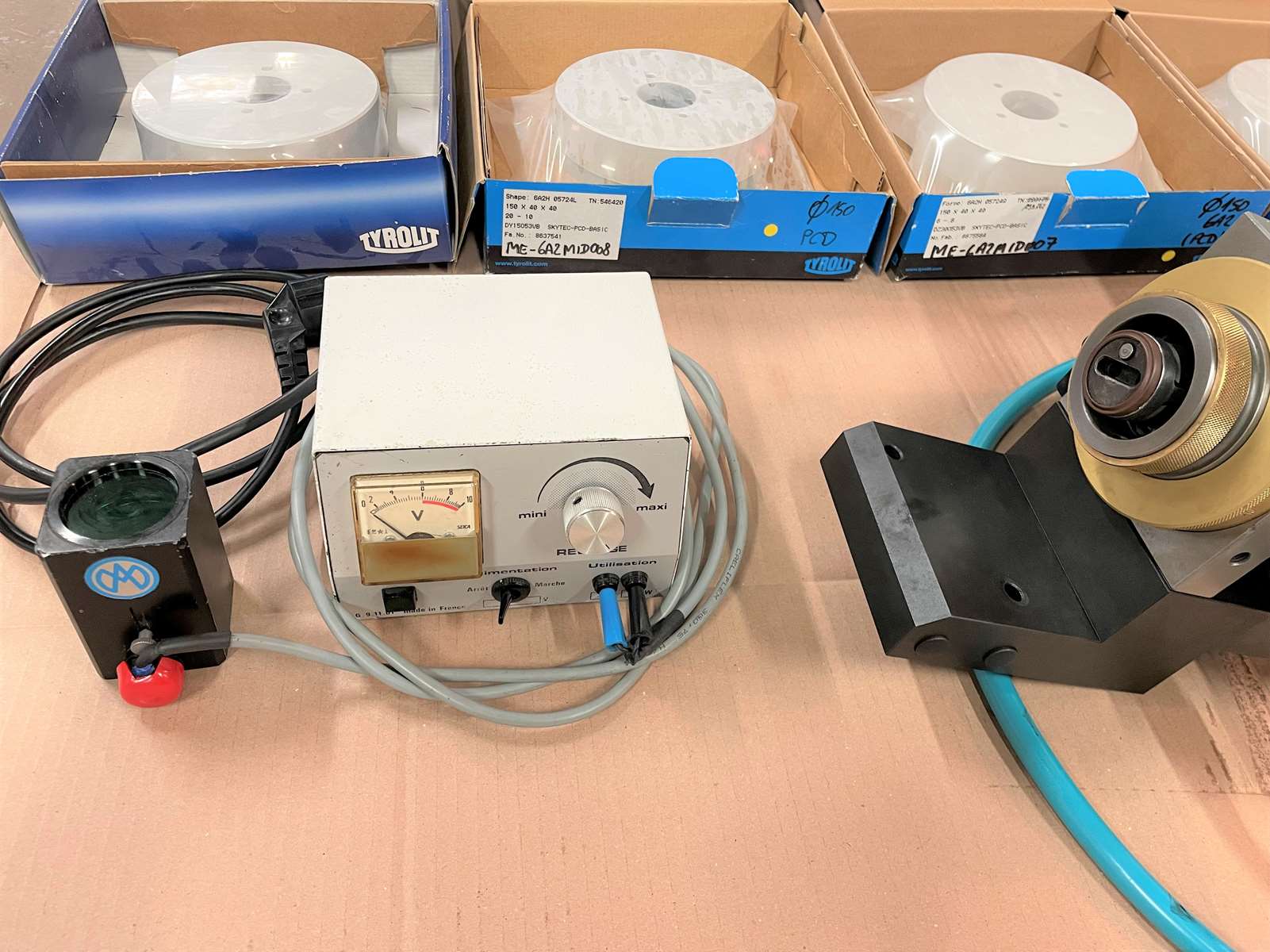

Transmitted light illumination (with green filter)

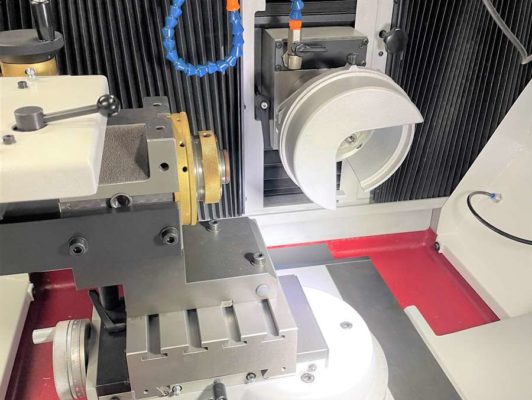

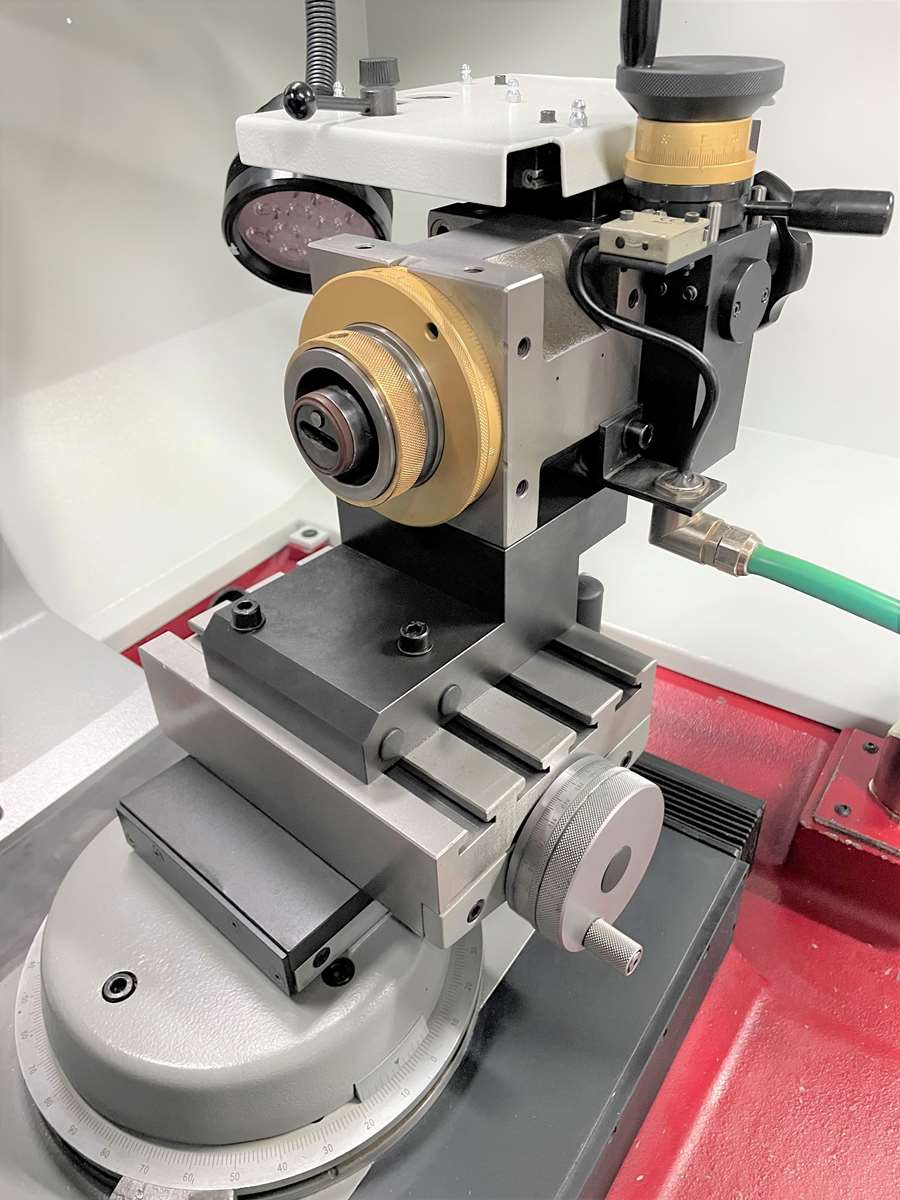

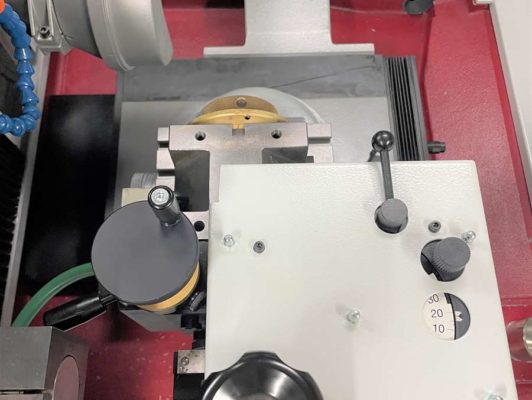

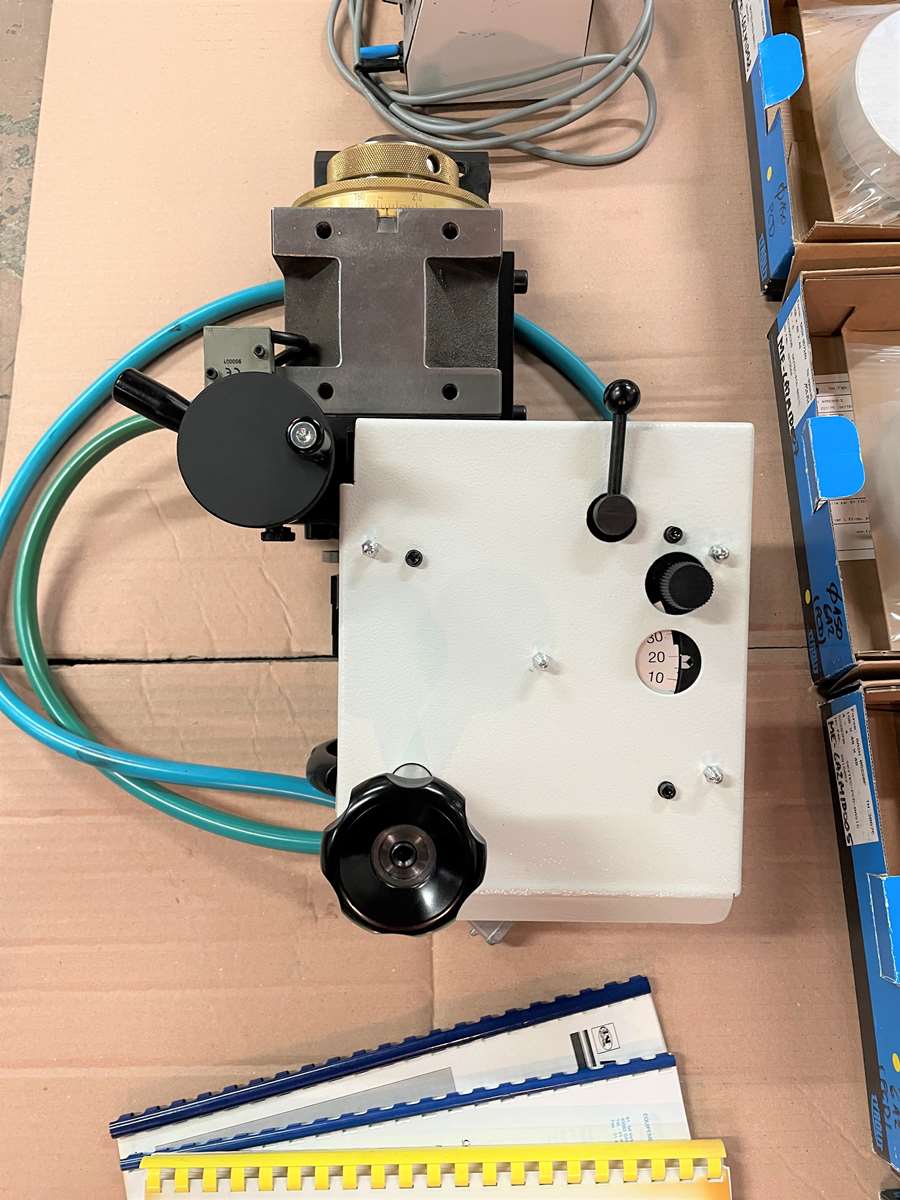

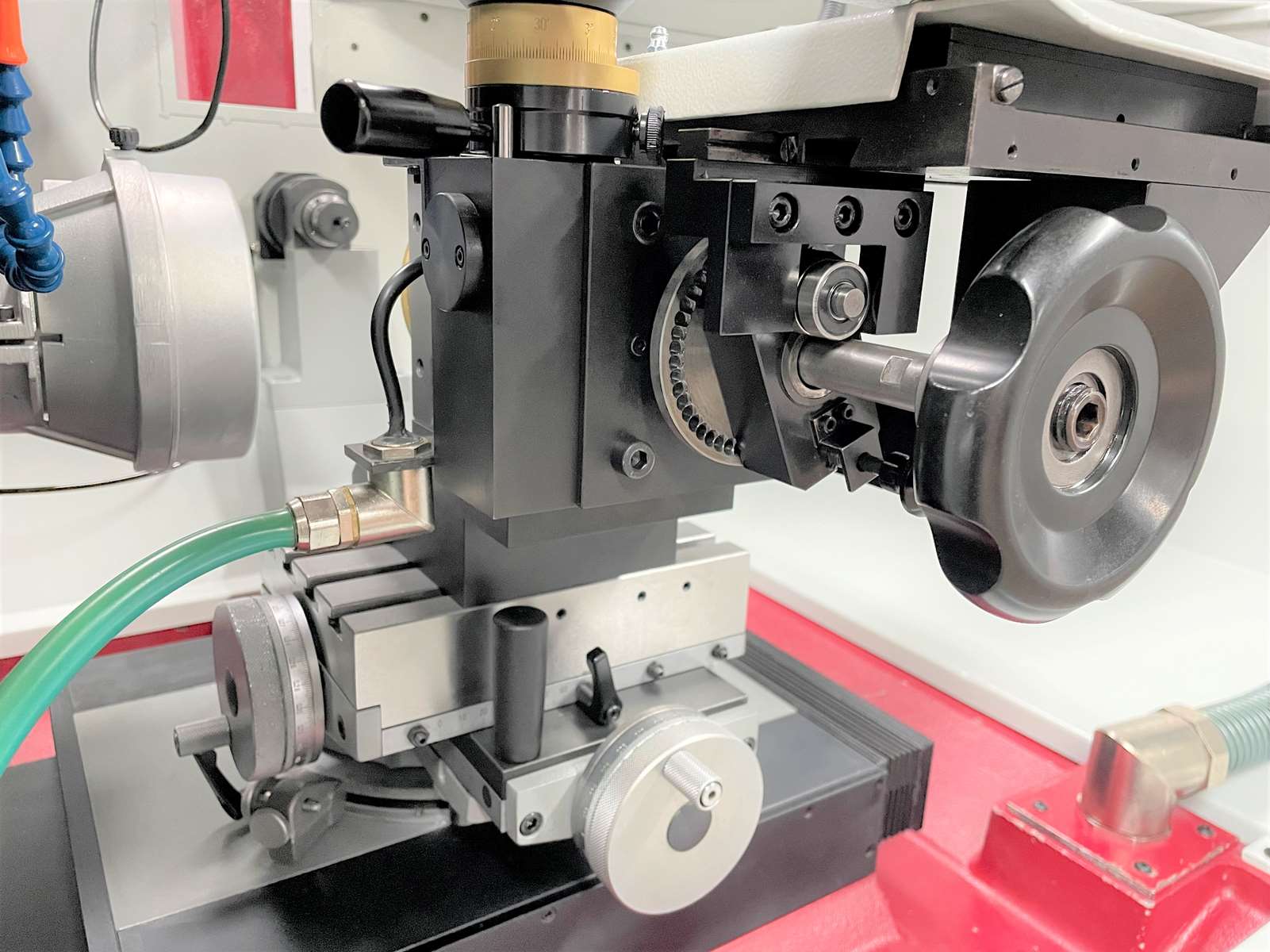

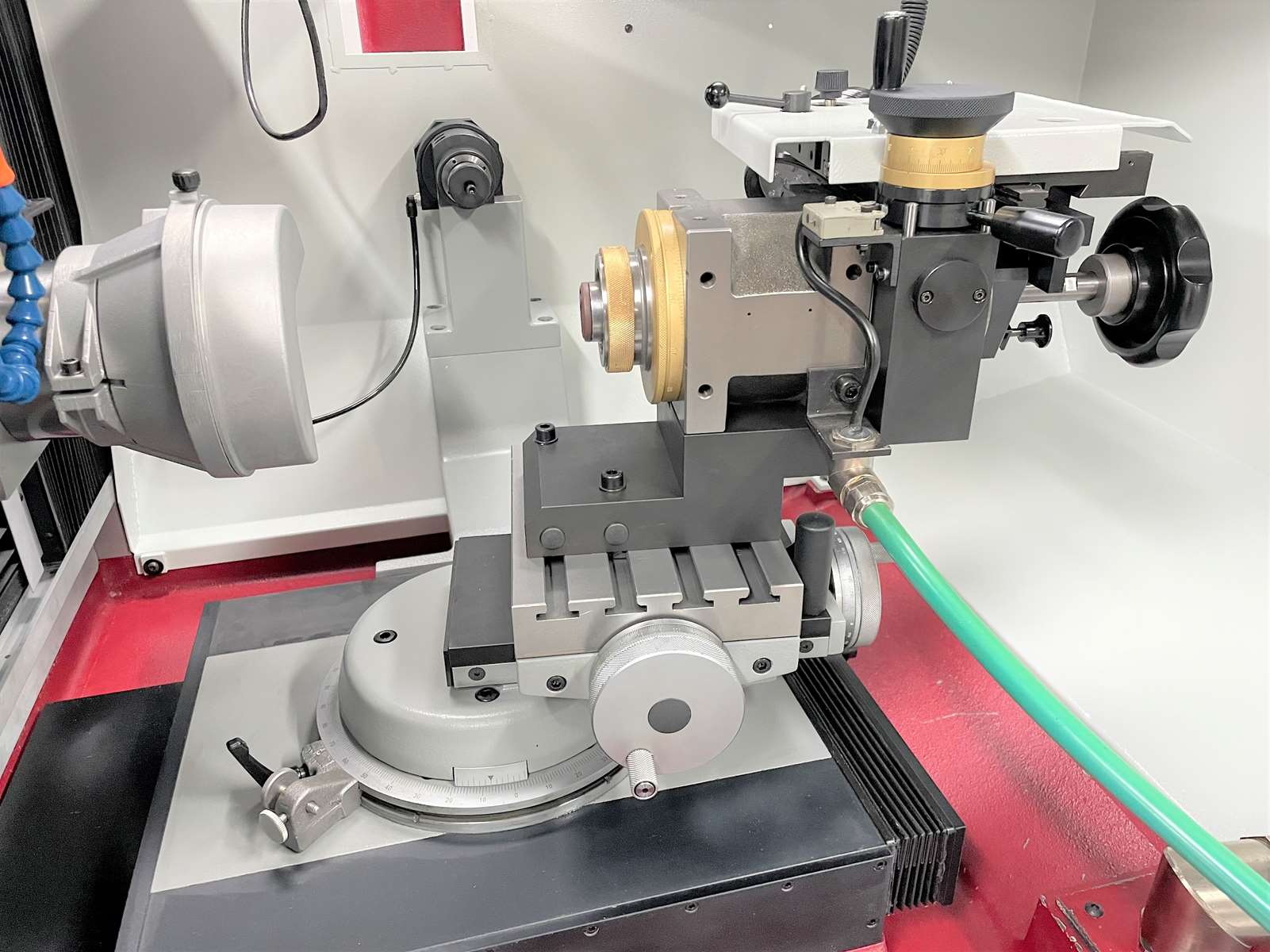

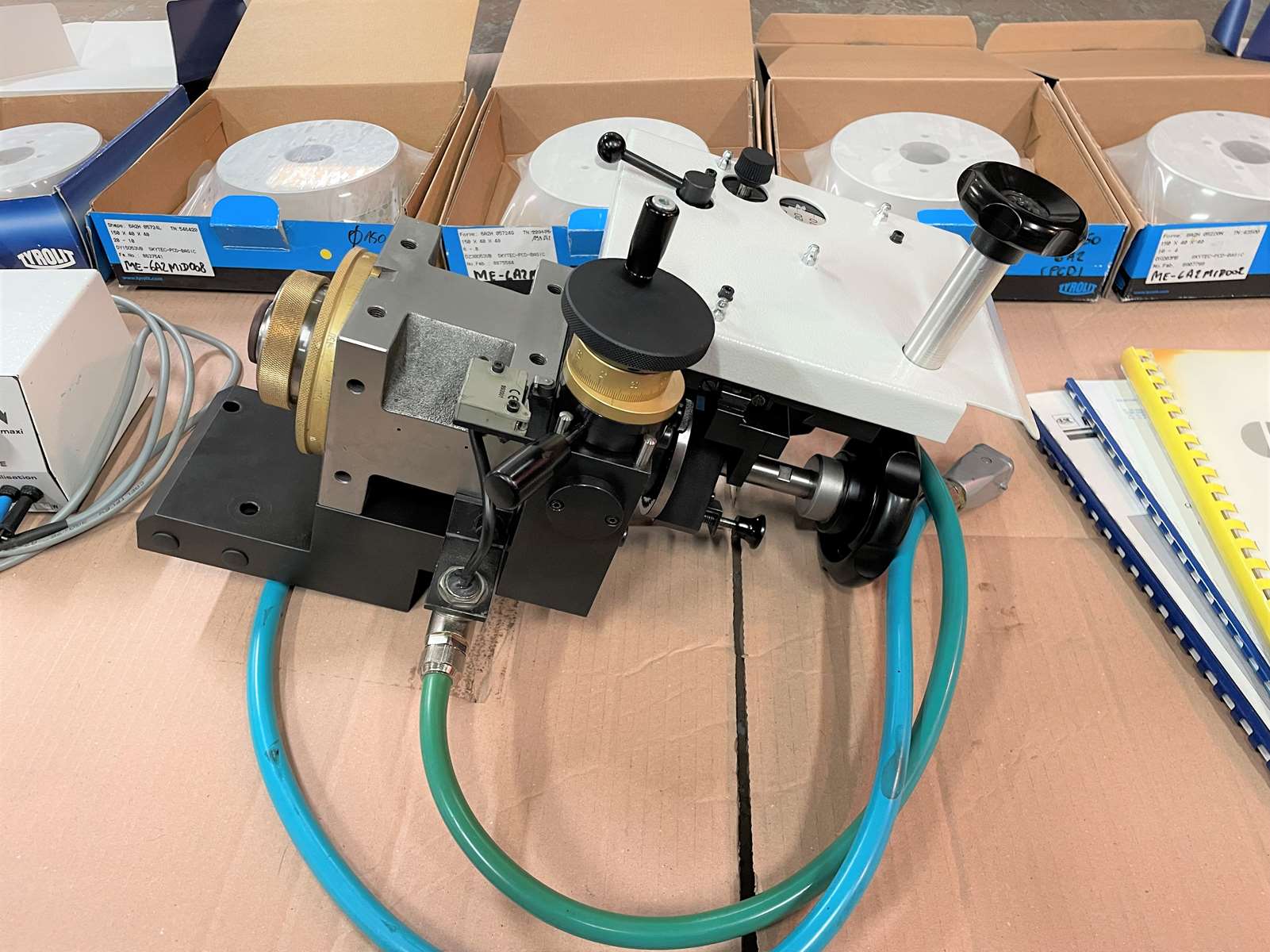

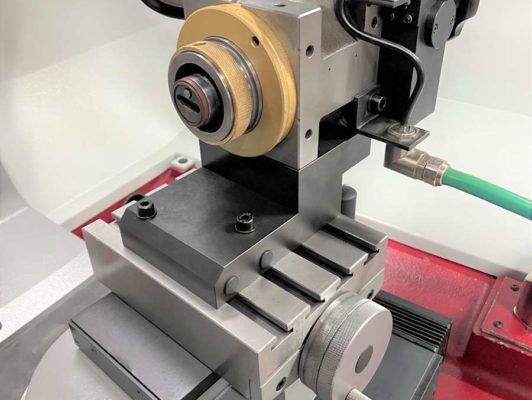

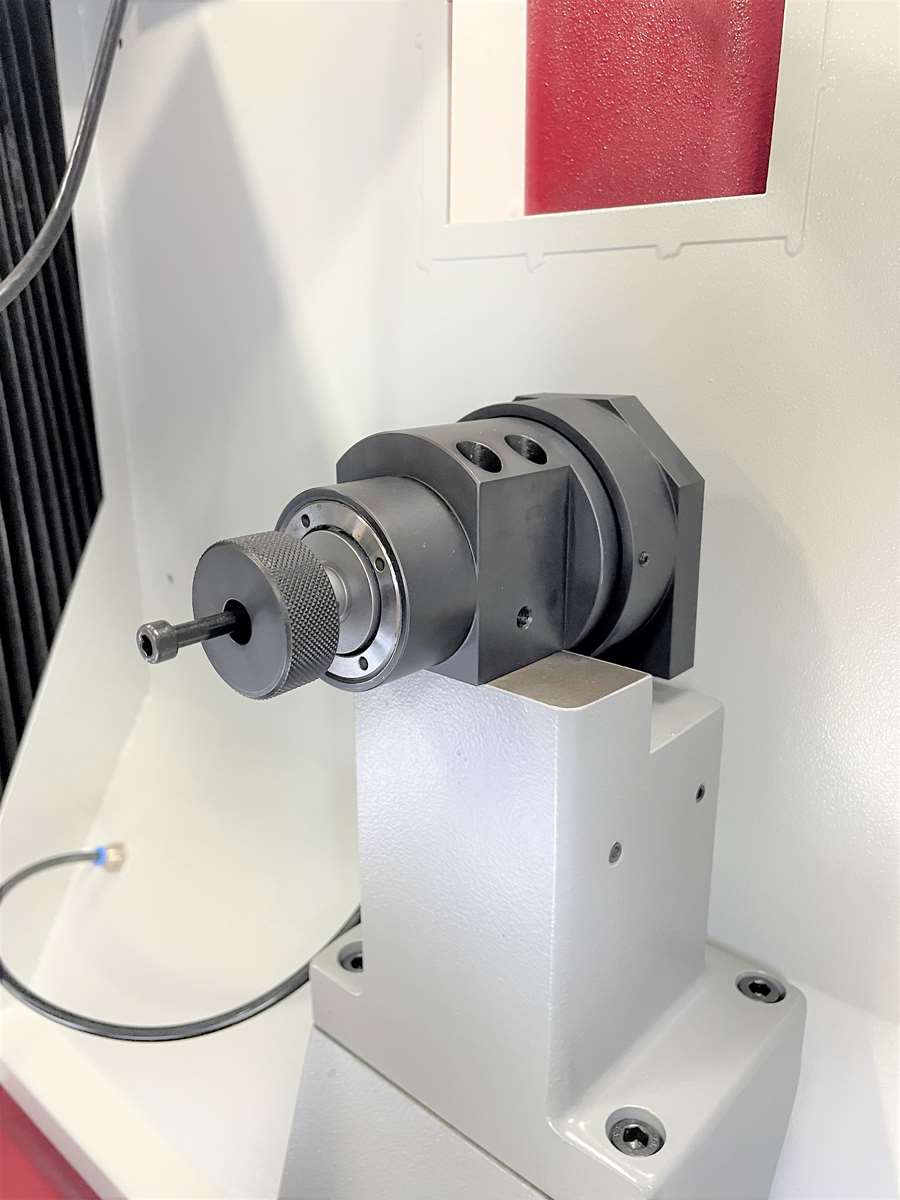

Inclined tooth angle grinding device AWS with dividing head HSK63, sine bar compensation and setting gauge compensation – ref EWAG : 115-2-31052

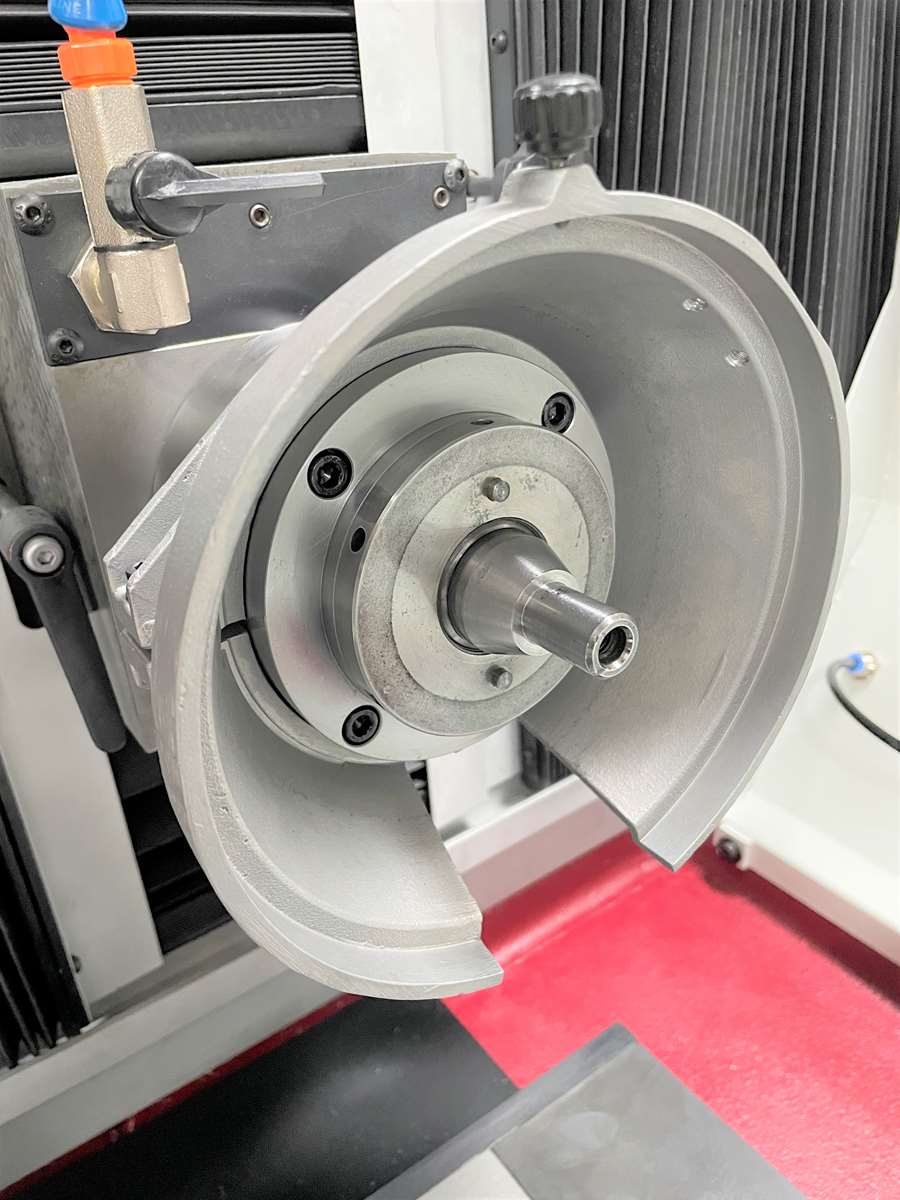

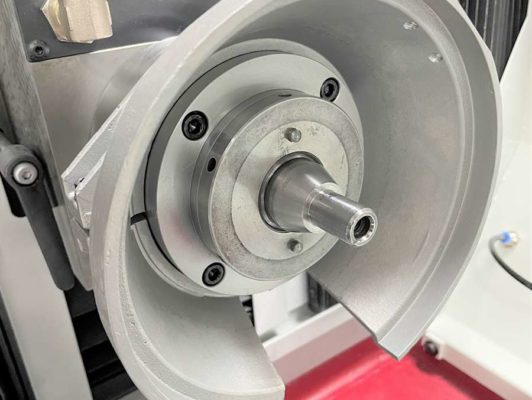

x1 grinding wheel adaptor Q40-fix-OCS (33 mm) – ref EWAG : 115-2-16414

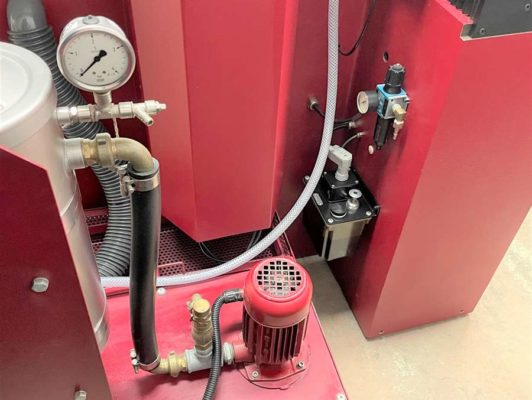

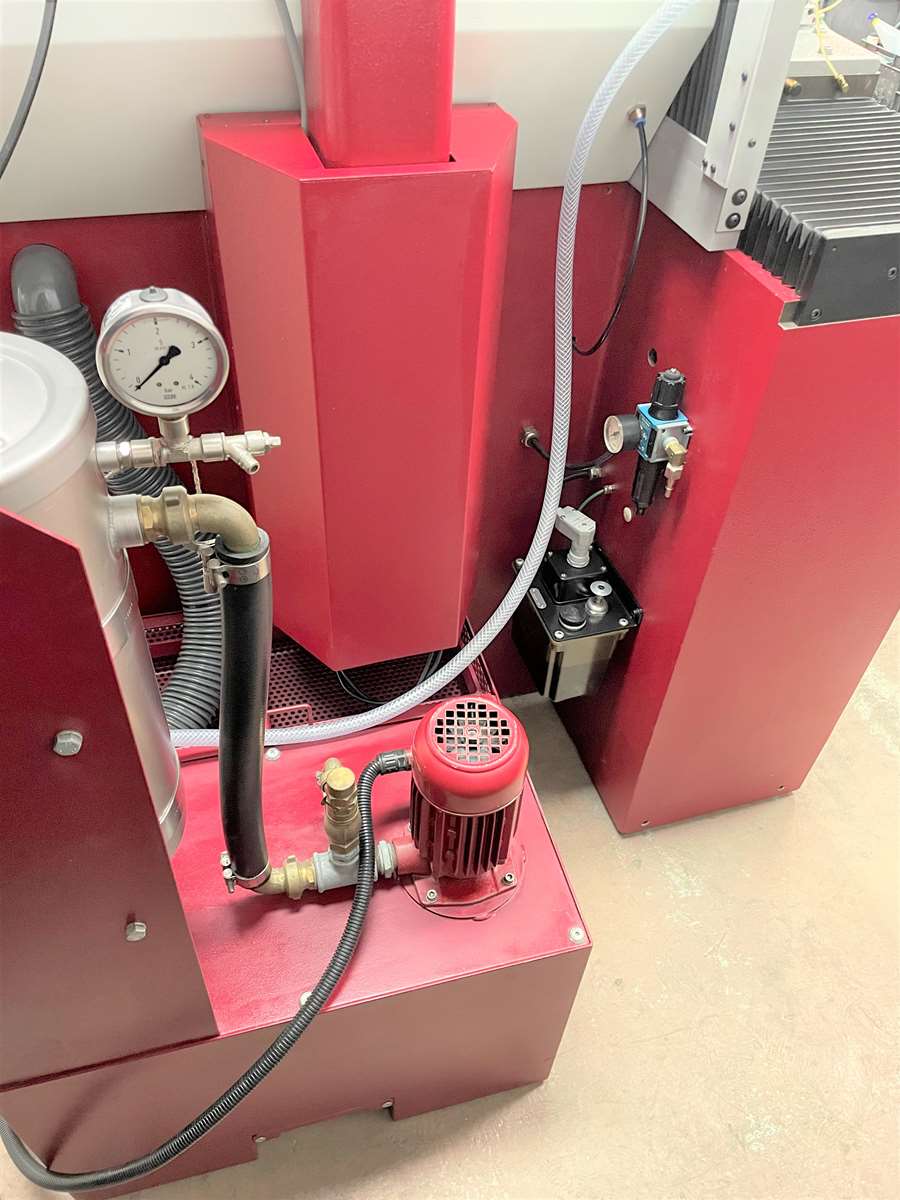

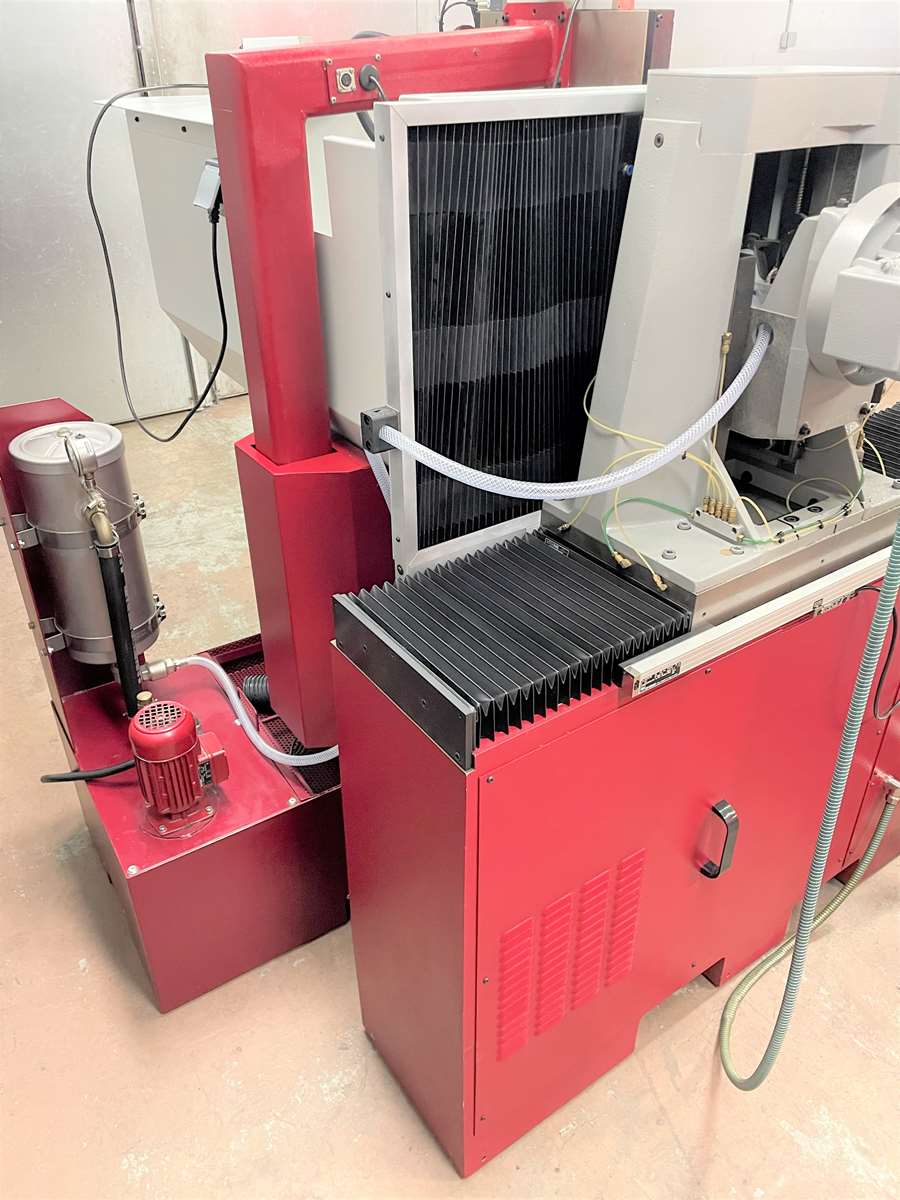

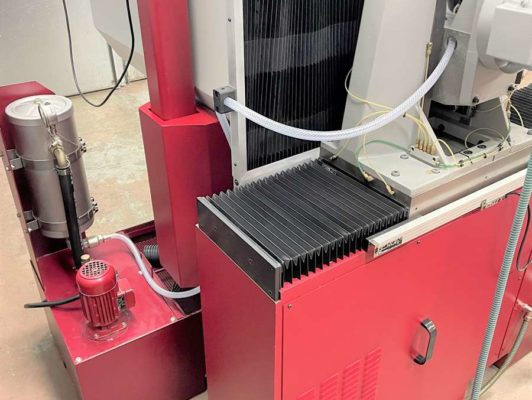

Coolant unit K3P with filter cartridge (capacity : 100 [l] – 45 [l/min] at 0.5 bar)
LED lamp 24 [V] – IP67

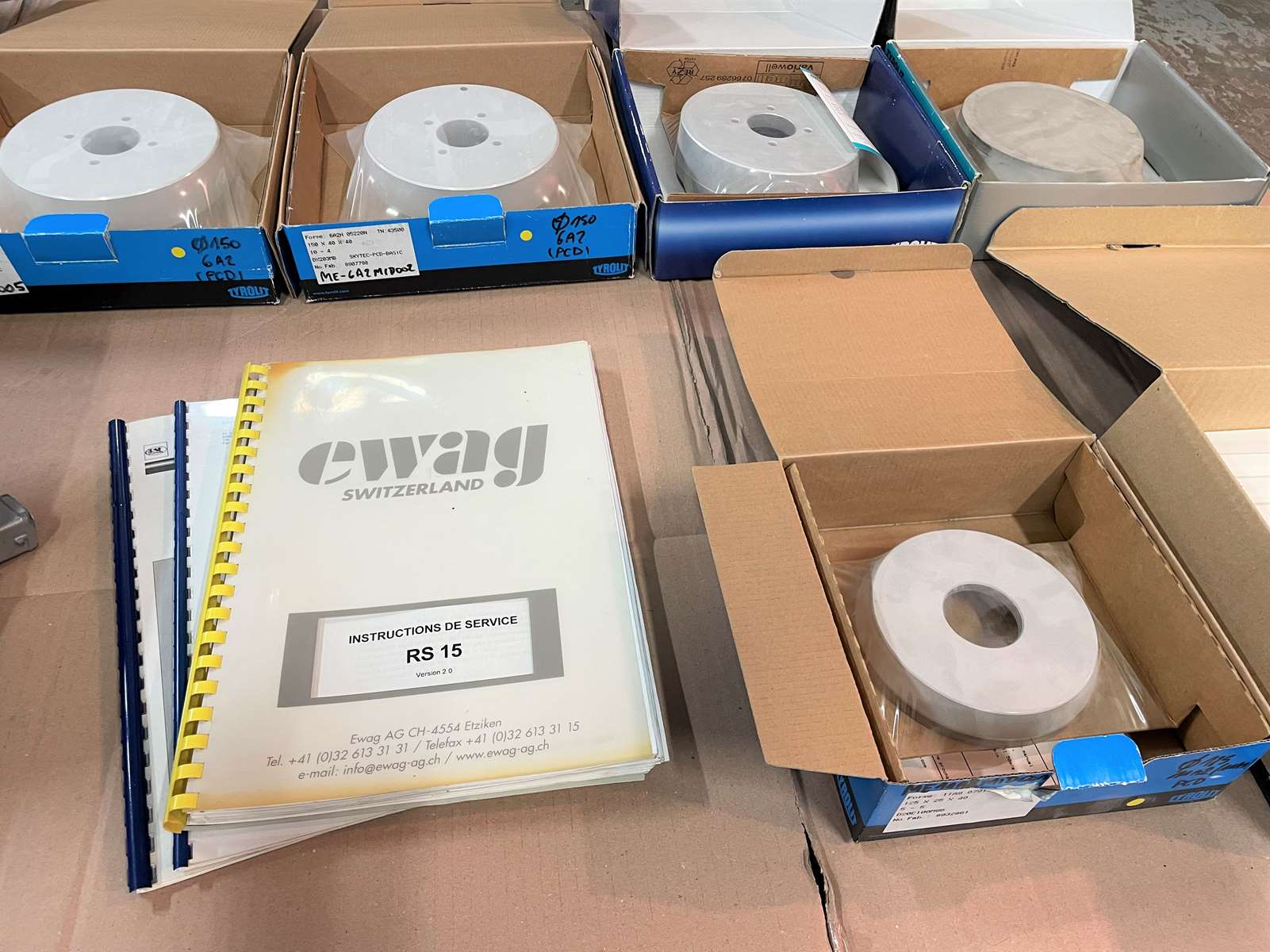

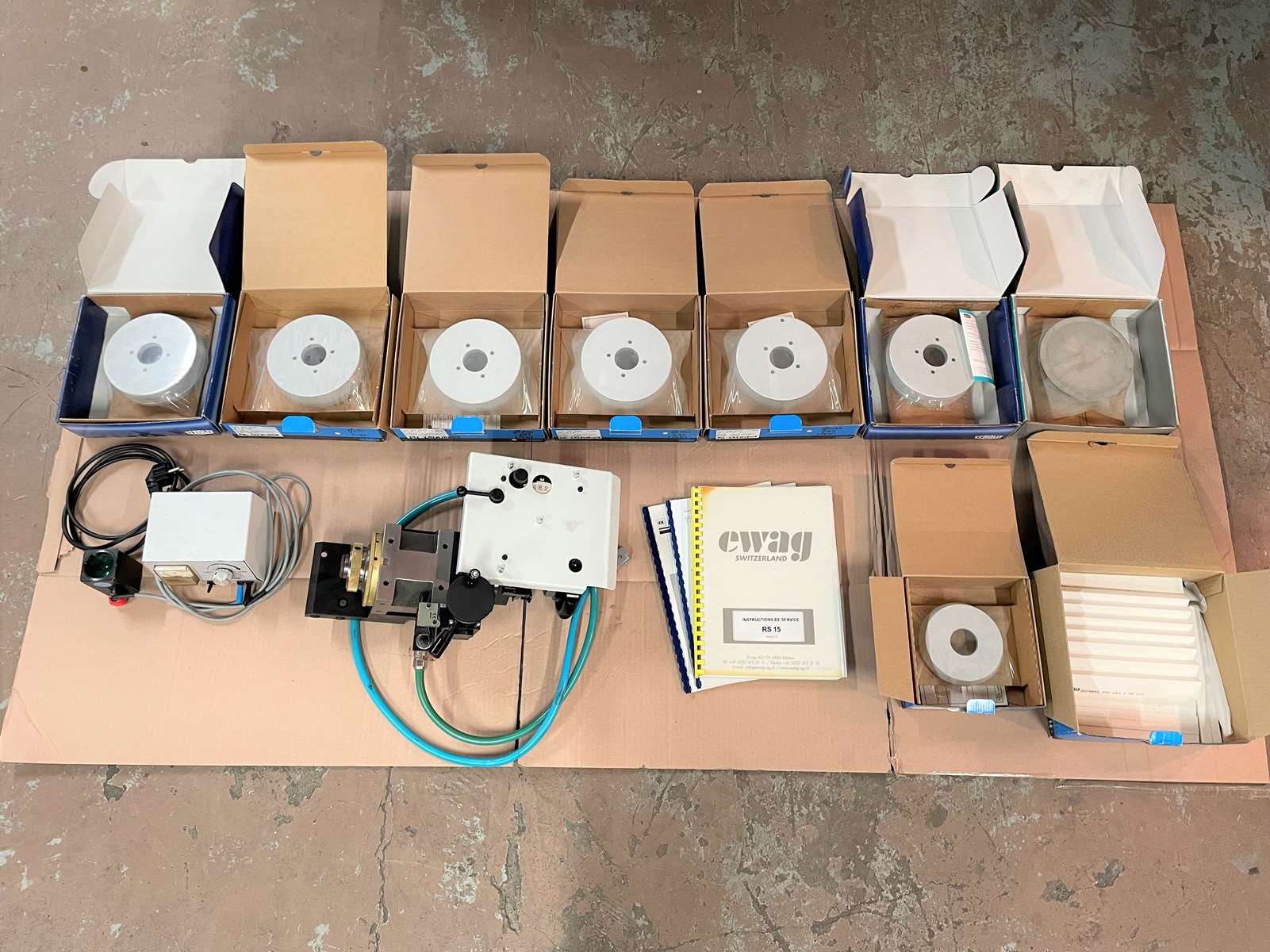

x7 grinding wheels TYROLIT Skytec PCD Basic 150 x 40 x 40 [mm] – NEW never used
x1 grinding wheel TYROLIT 125 x 25 x 40 [mm] – NEW never used
Users and service manual (in French)
Service manual for the tooth angle grinding device AWS (in French)
