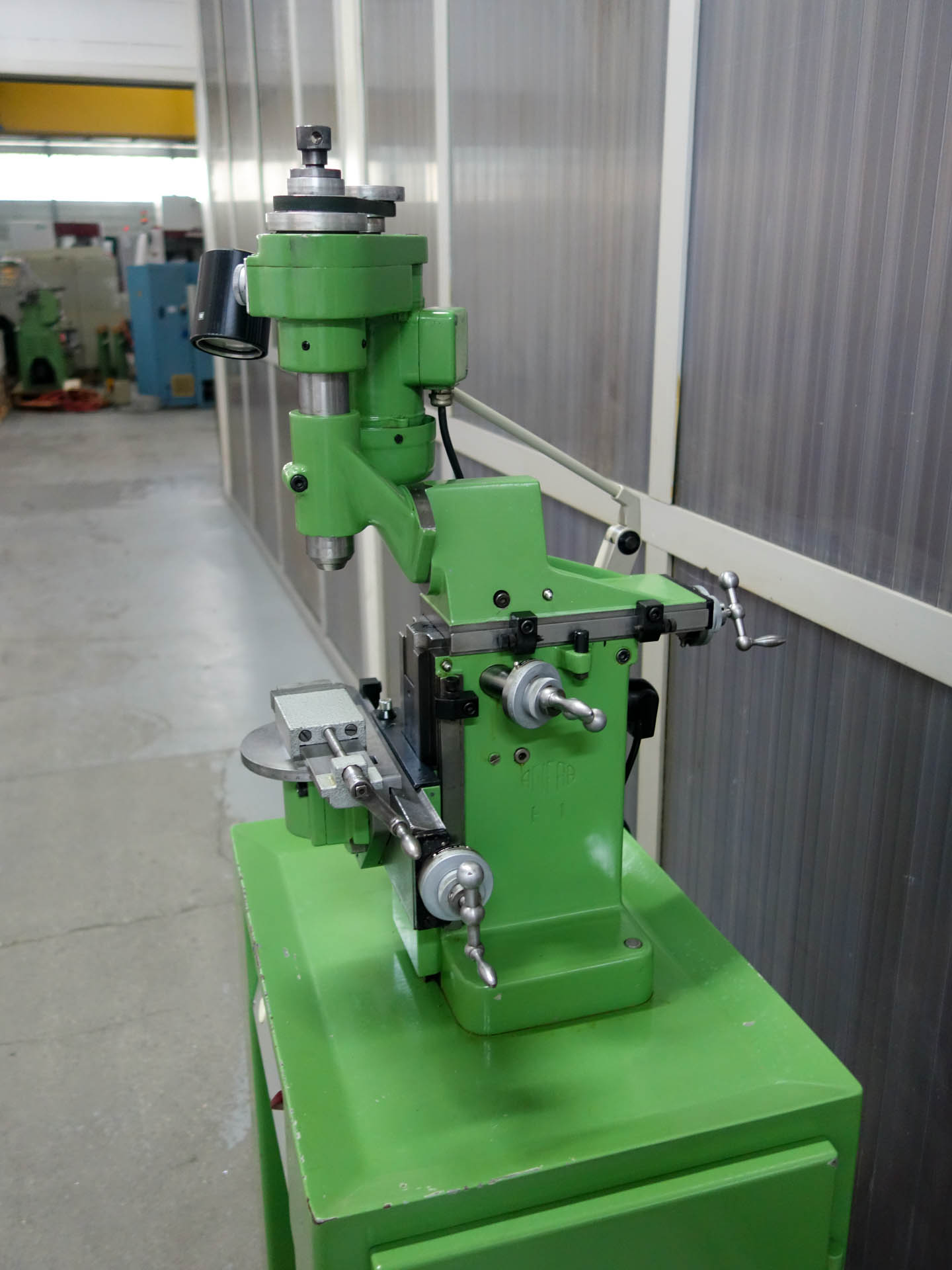

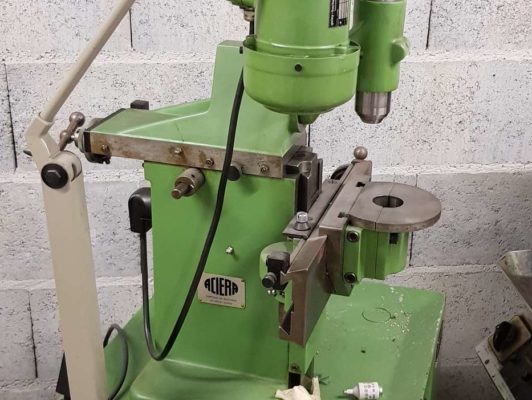

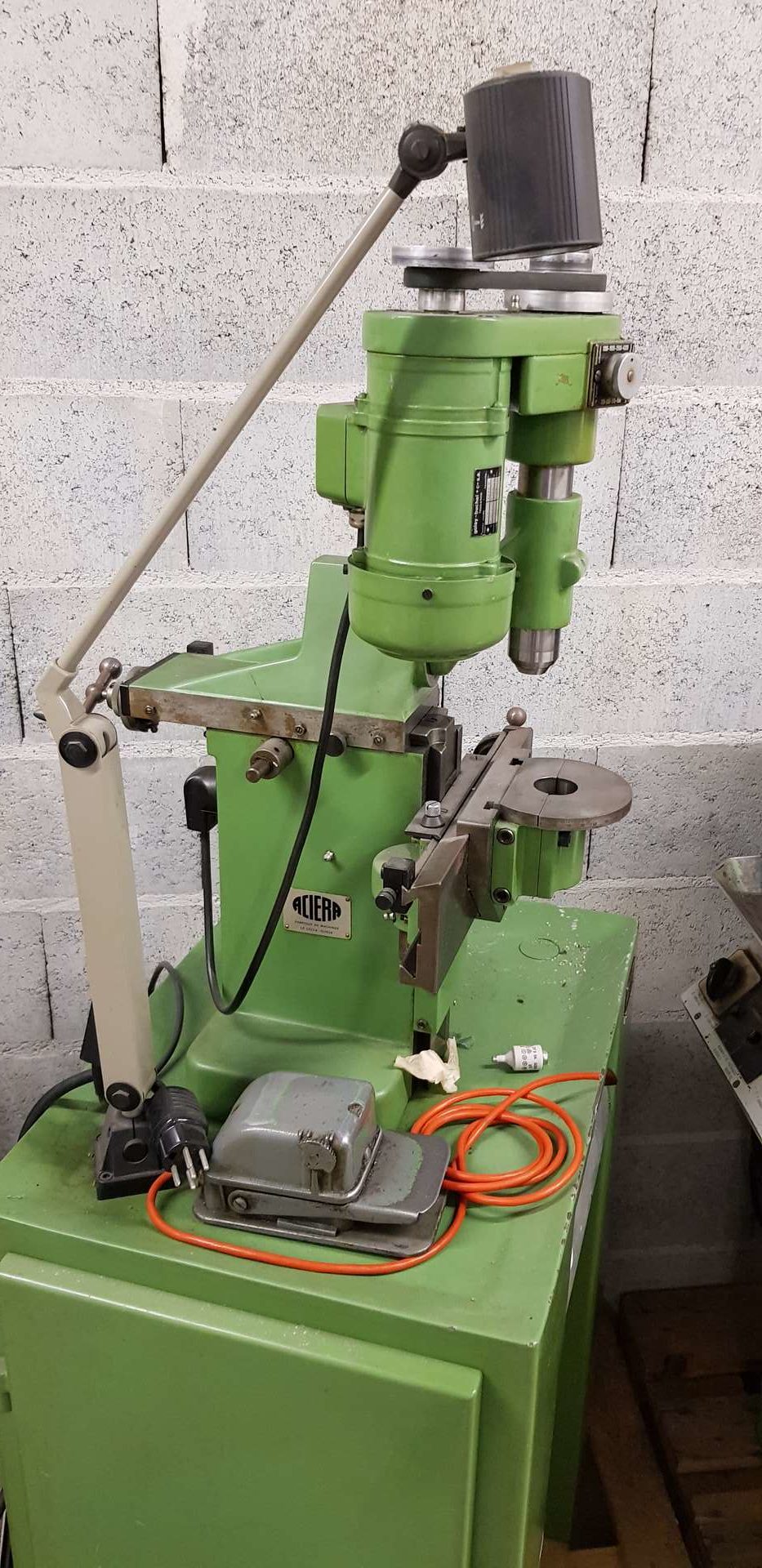

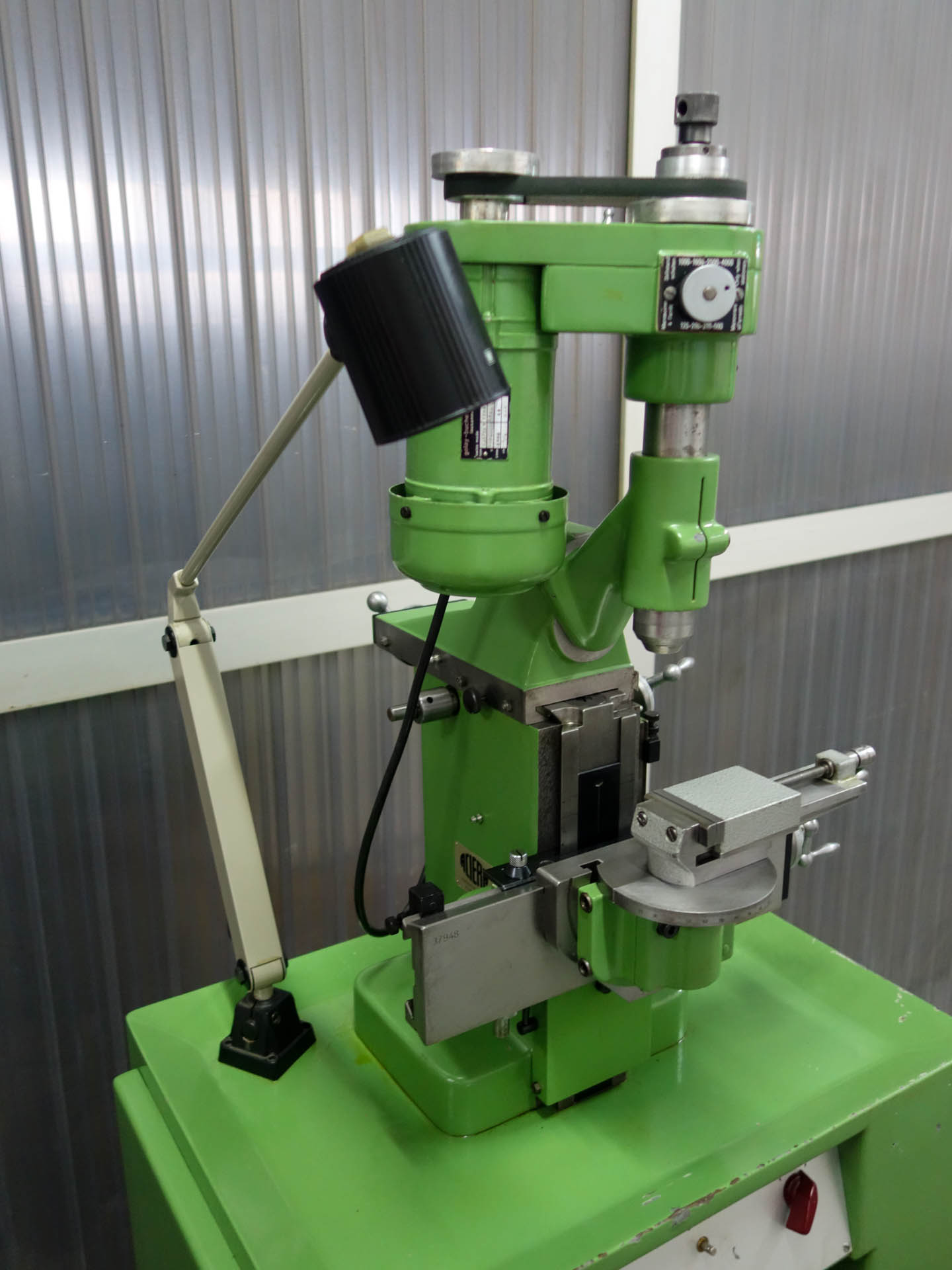

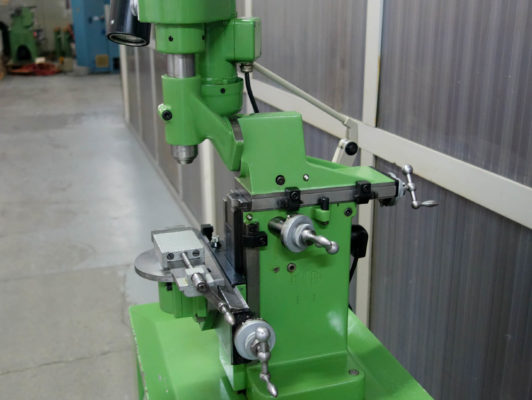

ACIERA F1 - Used machine

Model F1
Longitudinal travel of the table [X] 100 mm
Cross travel [Y] 75 mm
Vertical stroke [Z] 150 mm
Clamping surface of the table 220x100 mm
Number of T-slots 3
Groove maximum width 8 mm
Spindle speed 125 to 4000 RPM
Capacity 0,245 T
Dimensions 1300x530x1370 mm
Weight 120 Kg

Milling spindle : For clamp and cleat W12, body 12 mm

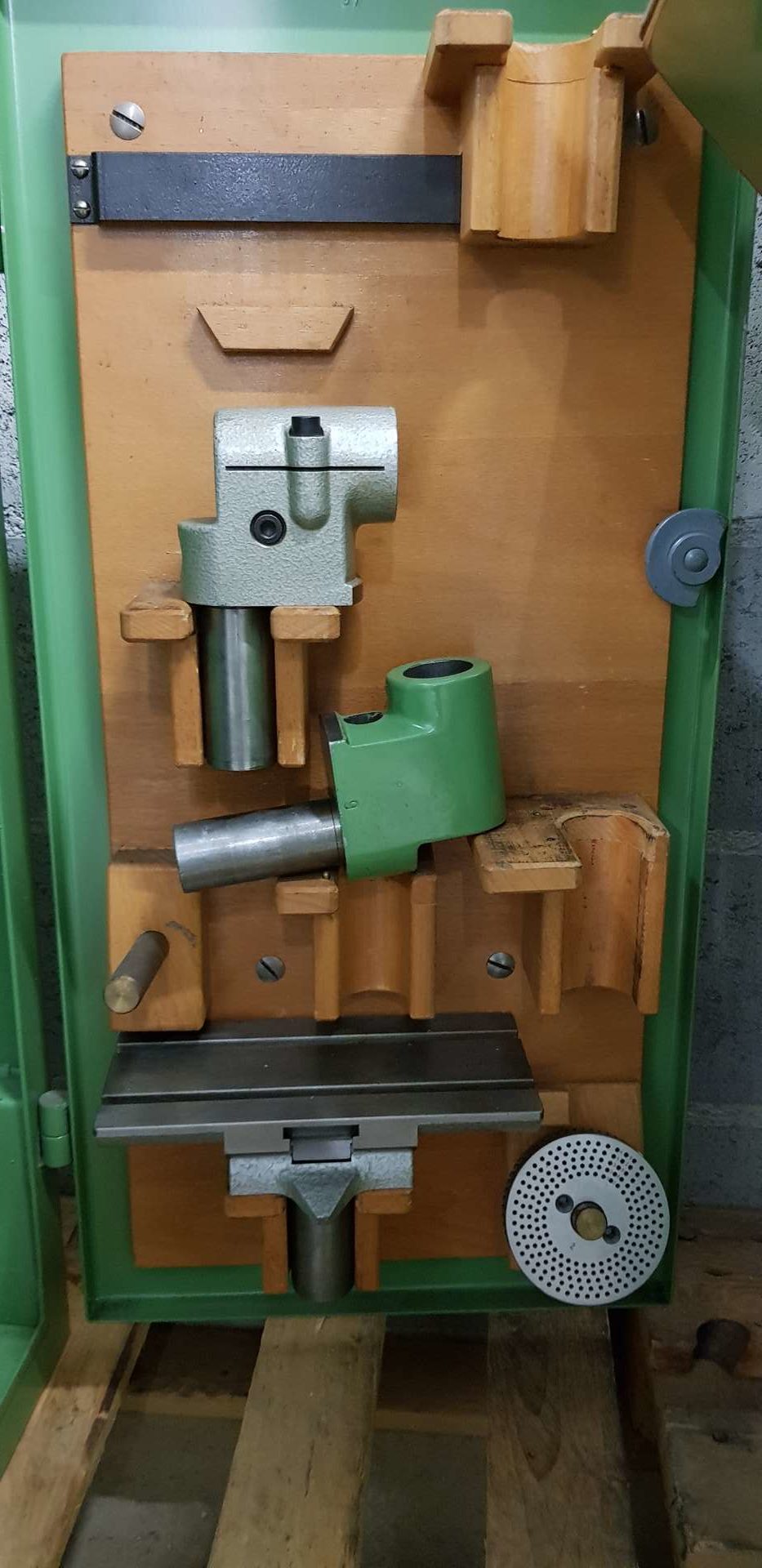

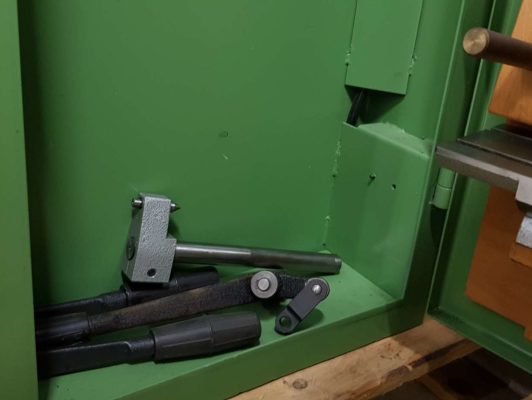

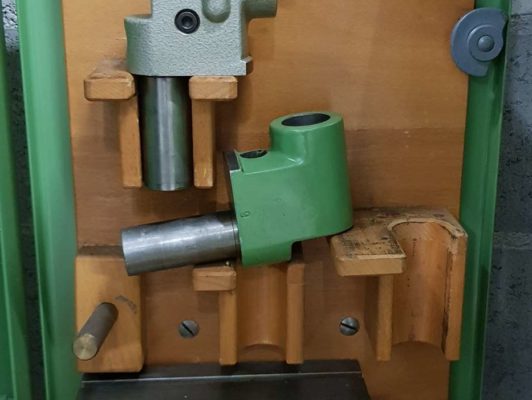

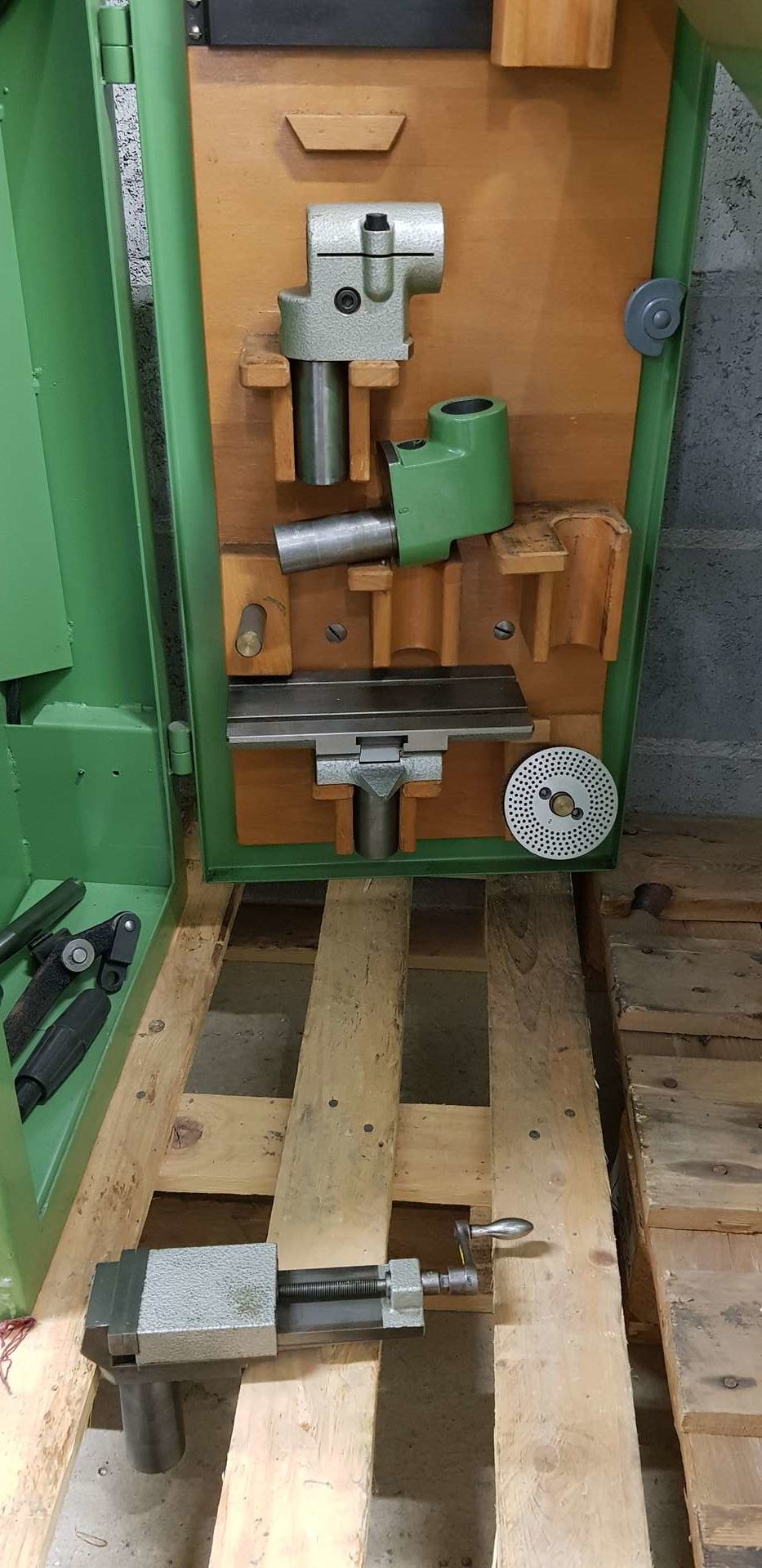

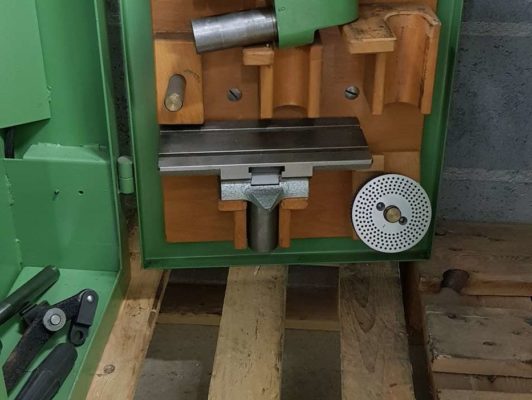

Accessories :

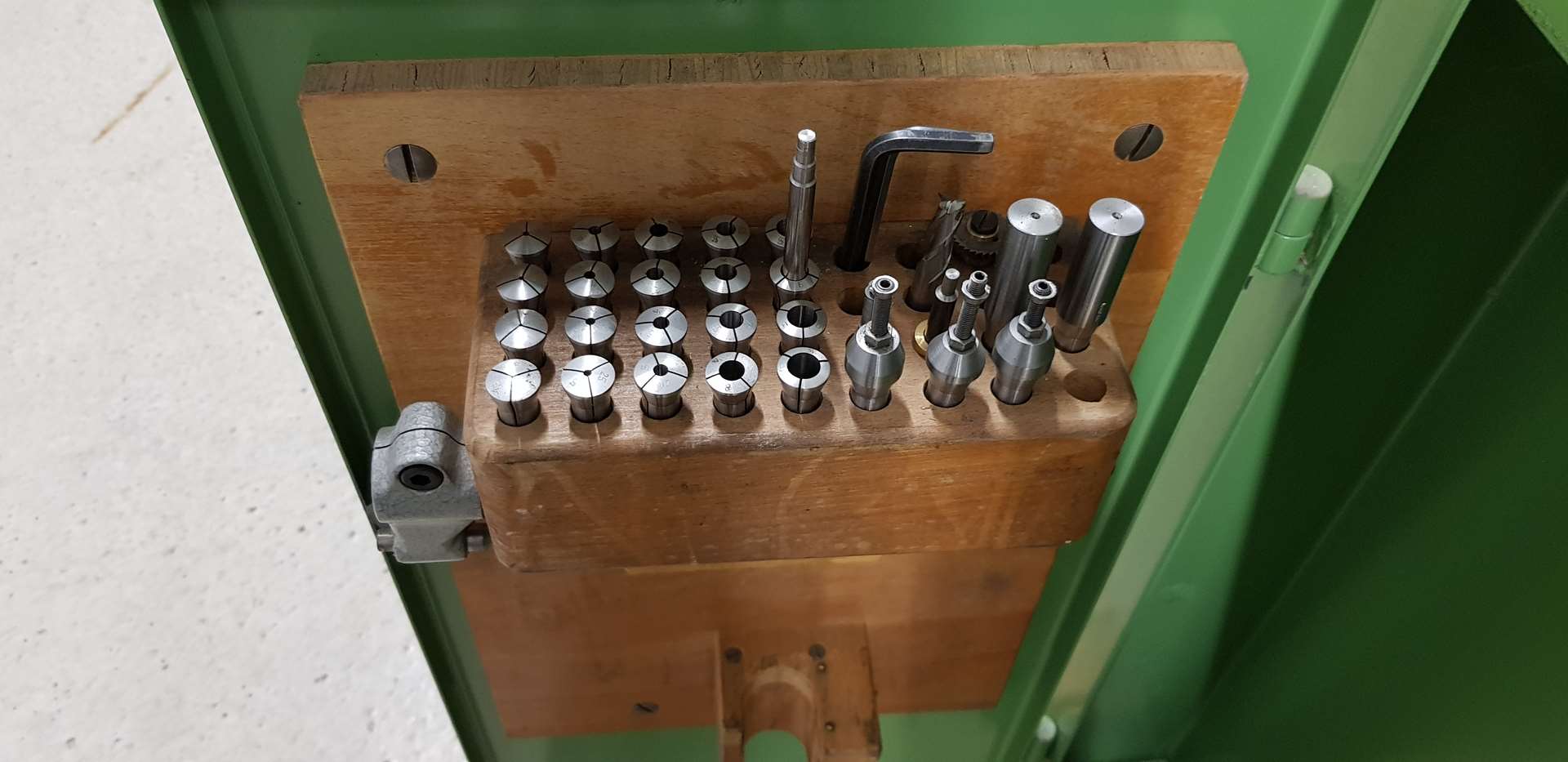

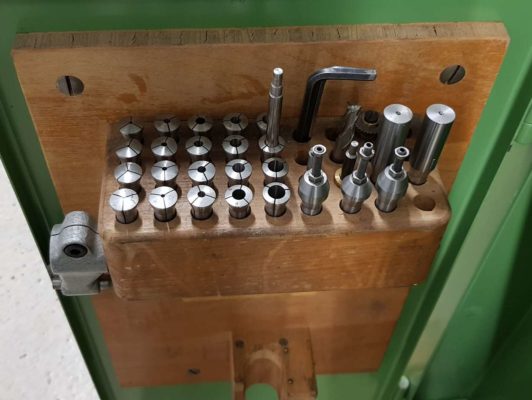

Clamp set W12

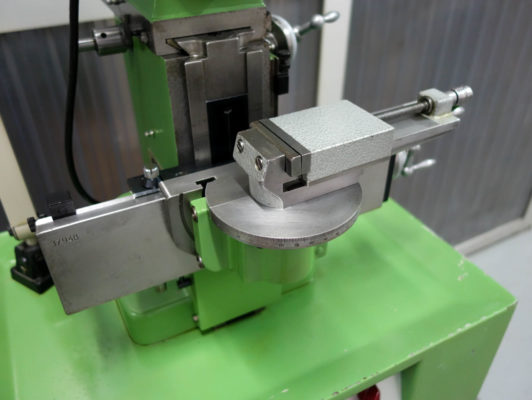

Rotating vice

Tilting table

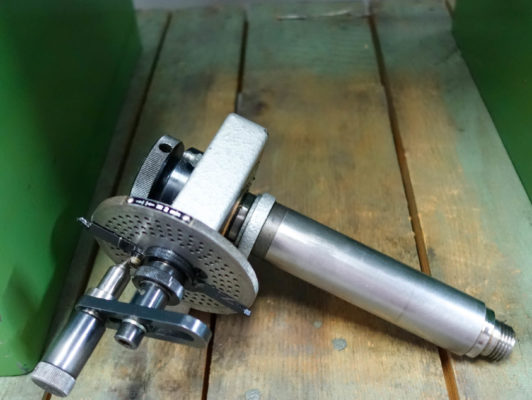

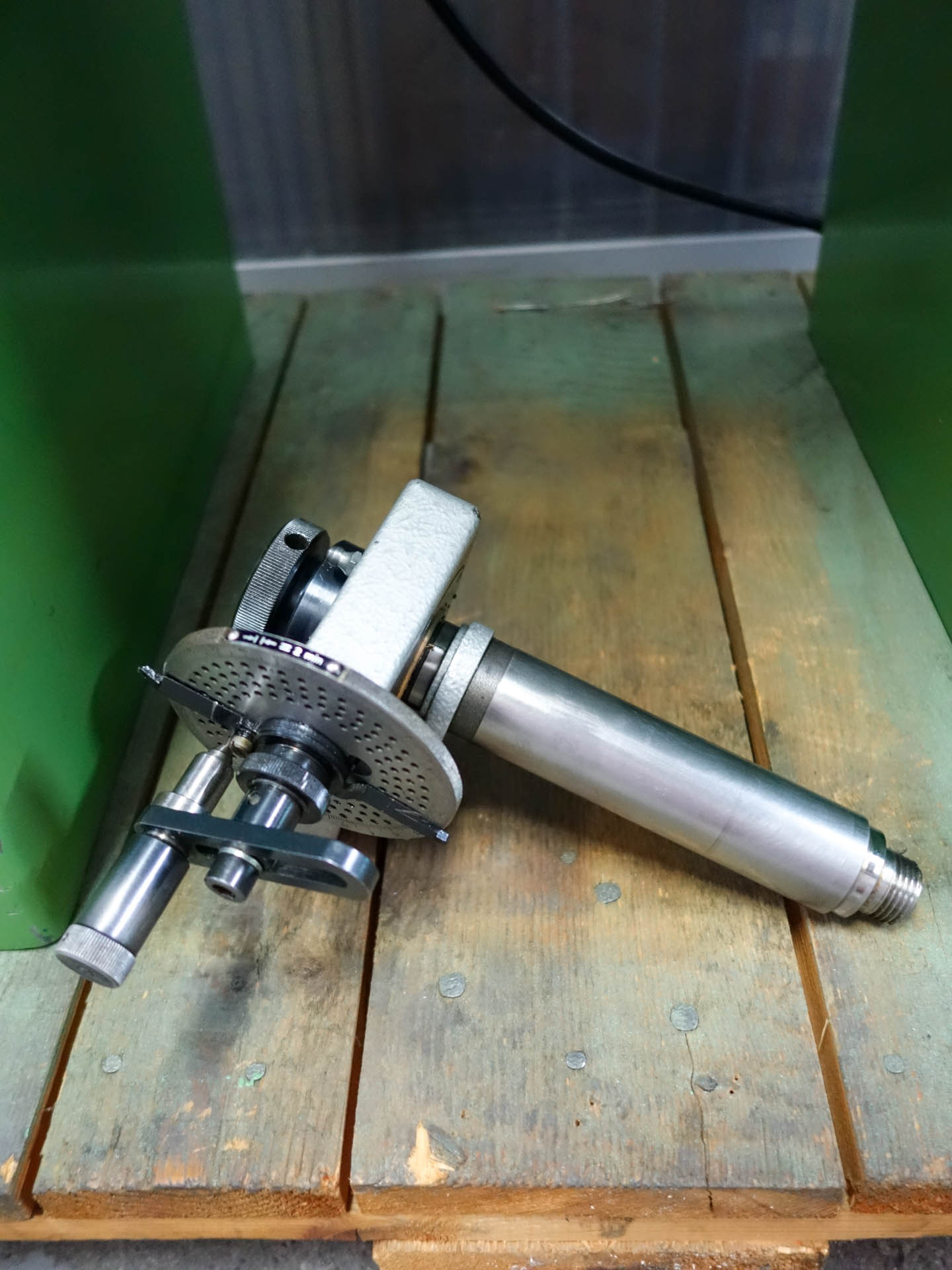

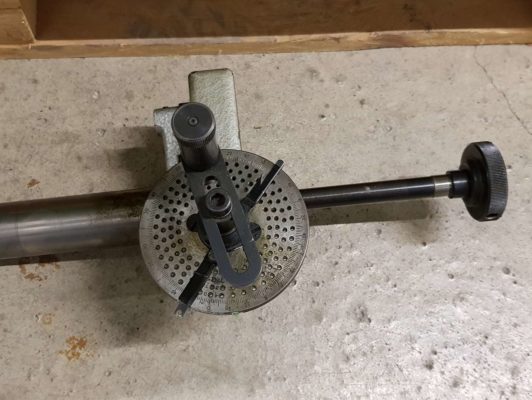

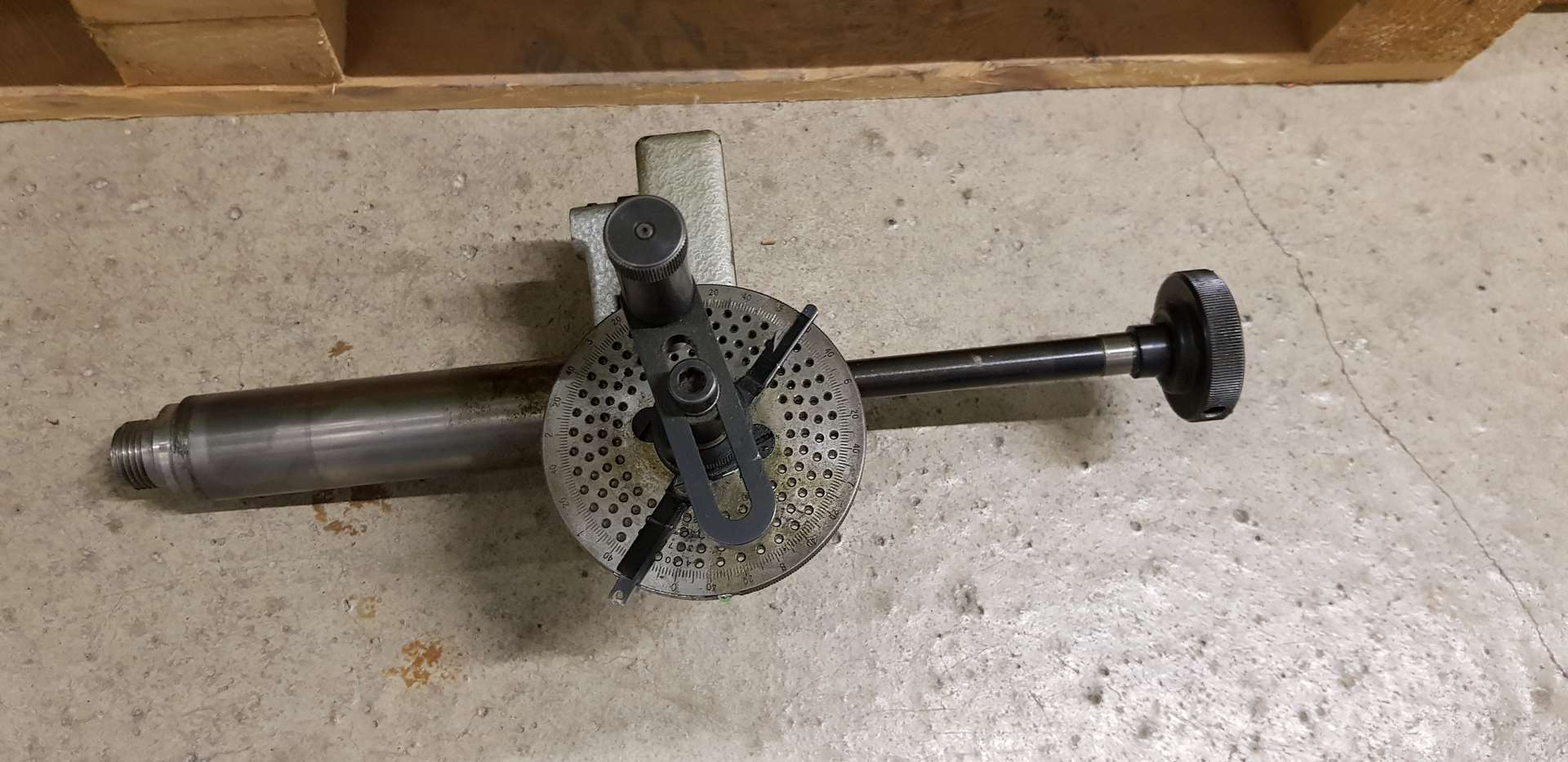

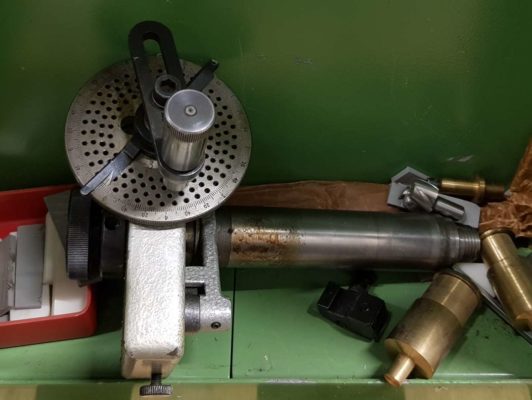

Simple dividing headstock

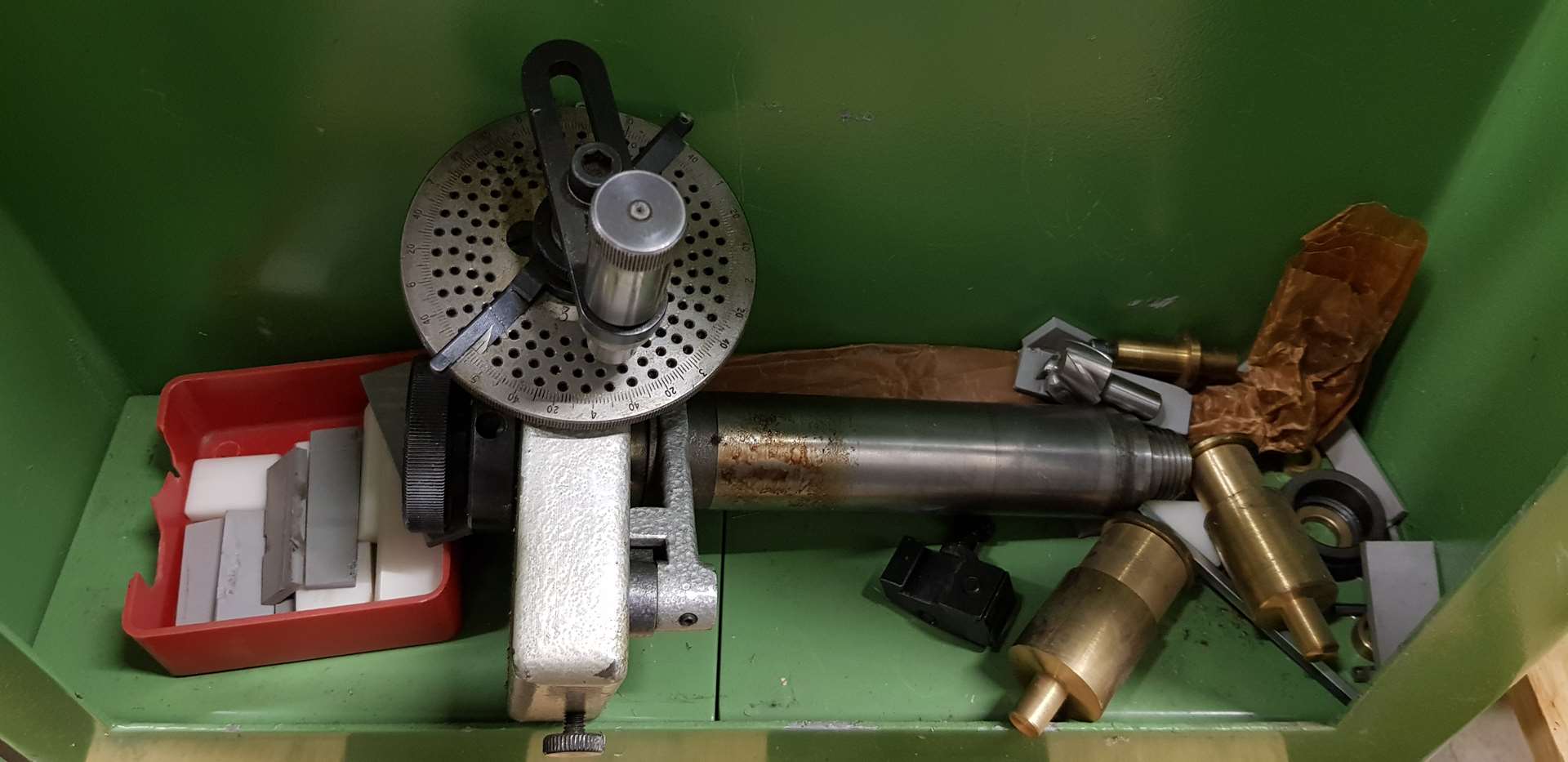

Universal dividing machine
