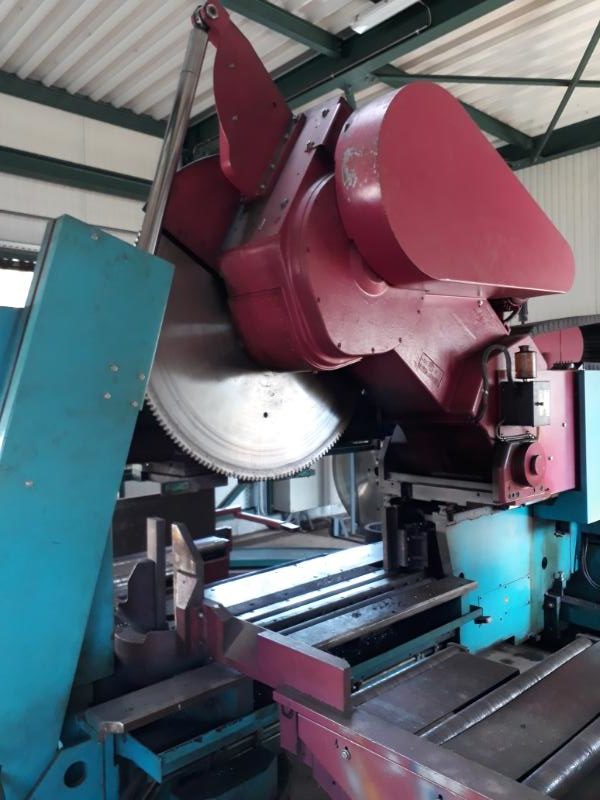

KALTENBACH - Gebrauchte Maschine

Type : HDM 1431

Description

Allows you to cut all types of profiles (rather
thick) with straight or slanted cuts. In
generally the angle bars are not cut on this
machine, apart from the large sections in the
positioning the V against down.
Technical data

Profiles:

– height from 50 mm. to 400 mm.
– width from 50 mm. to 1’000 mm.
Angle : 45° and 55°.

Stop:

– 90° cut length min. 50 mm
– 90° cut max. length 24’200 mm
– cut at 55° min. length 3’900 mm
– 45° cut length min. 2’900 mm

Hard blade:

– diameter 1’430 mm thickness 9.5 mm
